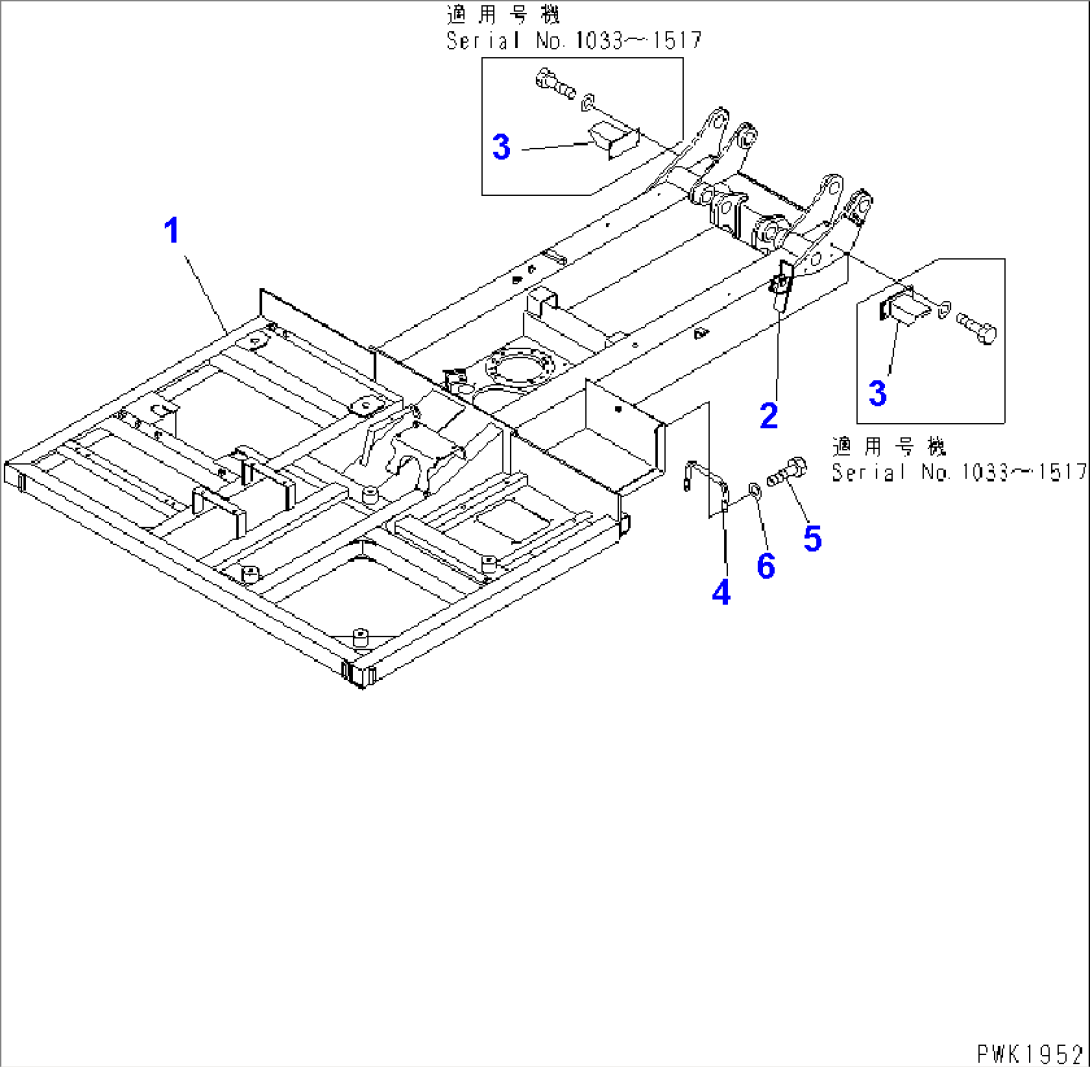

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 13S-46-11113 | FRAME | 1636-1800 | |
| 13S-46-11112 | FRAME,REVOLVING | 1033-1635 | ||
| 2 | 13S-46-11623 | BRACKET,L.H. | 1557-1800 | |
| 13S-46-11622 | BRACKET,L.H. | 1542-1556 | ||
| 14S-46-11220 | BRACKET,L.H. | 1201-1541 | ||
| \0\13S-46-11621 | BRACKET,L.H. | 1033-1200 | ||
| 3 | (13S-46-11350) | BRACKET,(SEE FIG. T1110-01A0A) | 1033-1517 | |
| 4 | 21J-54-14961 | GRIP | 1033-@ | |
| 5 | 01010-81020 | BOLT | 1033-@ | |
| 6 | 01643-31032 | WASHER | 1033-@ |
