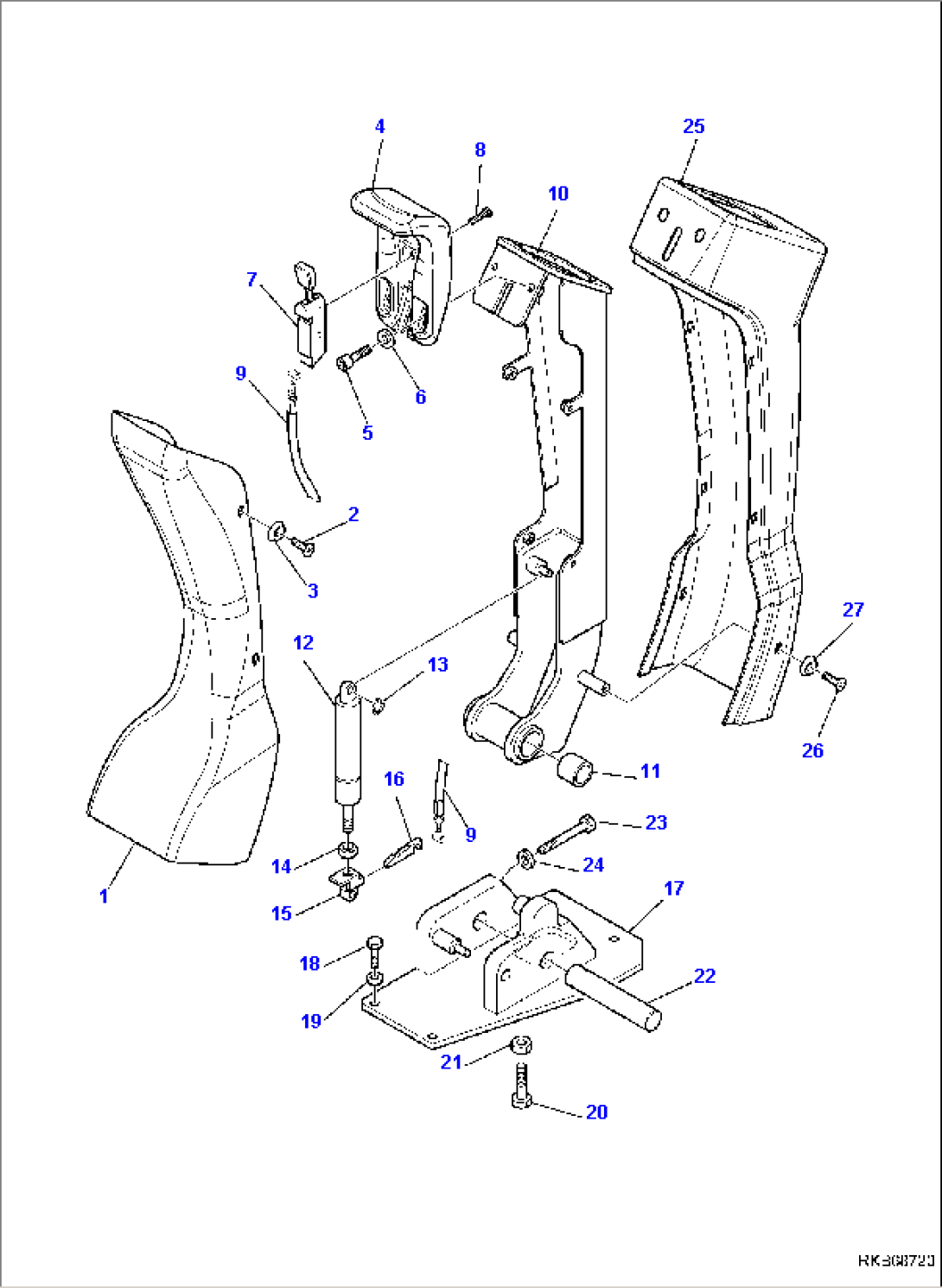

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-56-12131 | COVER | F30451- | |
| 2 | 01225-40620 | SCREW | F30451- | |
| 3 | 21D-54-11460 | WASHER | F30451- | |
| 4 | 42N-43-13411 | ARM REST | F30451- | |
| 5 | 01252-70835 | BOLT | F30451- | |
| 6 | 01640-20816 | WASHER | F30451- | |
| 7 | 42N-54-18610 | LEVER | F30451- | |
| 8 | 37A-09-25070 | SCREW | F30451- | |
| 9 | 42N-54-18621 | CABLE | F30451- | |
| 10 | 42N-43-15121 | SUPPORT, R.H. | F30451- | |
| 11 | 09350-02525 | BUSHING | F30451- | |
| 12 | 42N-54-18820 | GAS SPRING | F30451- | |
| 13 | 37A-09-4H008 | RING, SNAP | F30451- | |
| 14 | 42N-54-18850 | NUT | F30451- | |
| 15 | 42N-54-18830 | HEAD | F30451- | |
| 16 | 42N-54-18840 | LEVER | F30451- | |
| 17 | 42N-43-15112 | SUPPORT | F30451- | |
| 18 | 01016-50825 | BOLT | F30451- | |
| 19 | 01640-20816 | WASHER | F30451- | |
| 20 | 01016-51040 | BOLT | F30451- | |
| 21 | 01580-11008 | NUT | F30451- | |
| 22 | 42N-43-13480 | PIN | F30451- | |
| 23 | 01010-80880 | BOLT | F30451- | |
| 24 | 01643-10823 | WASHER | F30451- | |
| 25 | 42N-56-12111 | COVER | F30451- | |
| 26 | 01225-40620 | SCREW | F30451- | |
| 27 | 21D-54-11460 | WASHER | F30451- |
