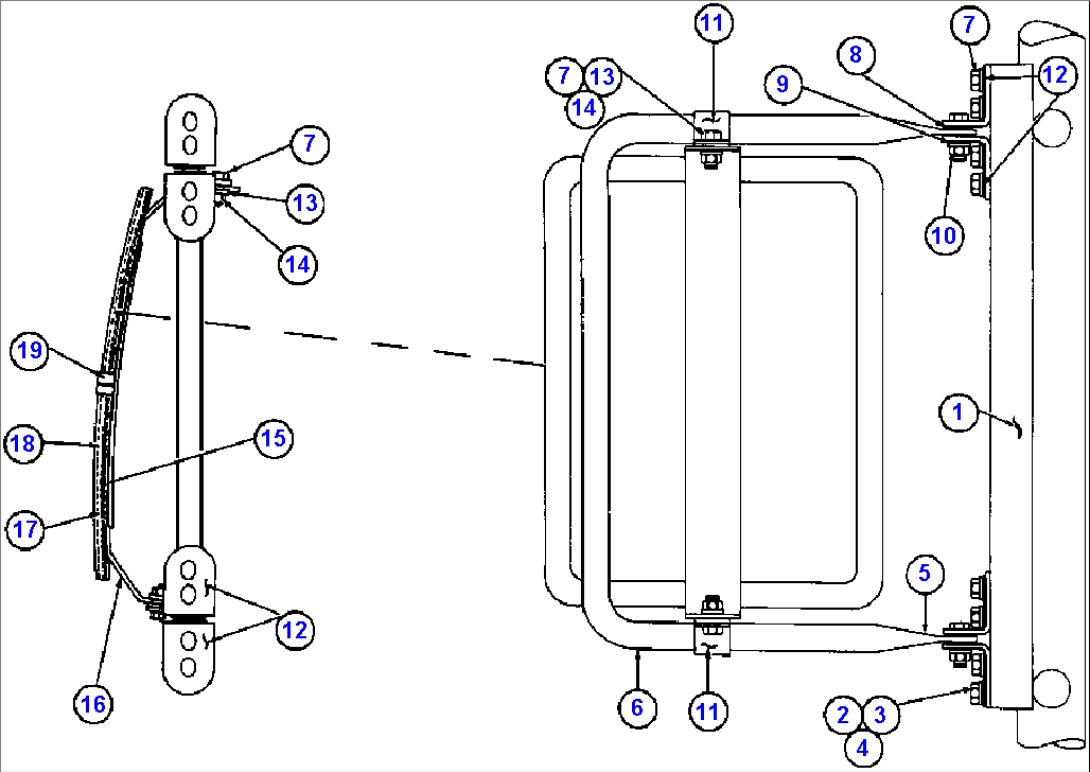

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TZ6087 | CHANNEL (2) | | |
| 2 | C1598 | CAPSCREW - 5/16" - 18NC X 1" (2) | | |
| 3 | SC4174 | LOCKWASHER - 5/16" (2) | | |
| 4 | WA0723 | FLAT WASHER - 5/16" (2) | | |
| 5 | PB7490 | ARM BOW ASSEMBLY - R.H. (2) | | |
| 6 | VE5449 | BOW, ARM | | |
| 7 | C1603 | CAPSCREW - 3/8" - 16NC X 1 1/4" (1) | | |
| 8 | VE5451 | WASHER, FIBER - 25/64" X 7/8" (1) | | |
| 9 | H5304 | LOCKWASHER, INTERNAL - 3/8" (1) | | |
| 10 | SD4572 | NUT, JAM - 3/8" - 16NC (1) | | |
| 11 | VE5453 | CLAMP (1) | | |
| 12 | VE5454 | MOUNTING ANGLE (1) | | |
| 13 | VE5452 | WASHER - 13/32" (1) | | |
| 14 | C1521 | NUT - 3/8" - 16NC (1) | | |
| 15 | PB7491 | CONVEX MIRROR ASSEMBLY (2) | | |
| 16 | VE5448 | STRAP, MIRROR | | |
| 17 | VE5445 | MIRROR, CONVEX GLASS | | |
| 18 | VE5447 | TRIM, PINCHWELT | | |
| 19 | VE5446 | SPRING, CLIP | | |
| NS|20 | VE5450 | NOTE: (1) INCLUDED IN VE5450 KIT. | | |
| NS|21 | AK8431 | (2) INCLUDED IN AK8431 REPAIR KIT. | | |
