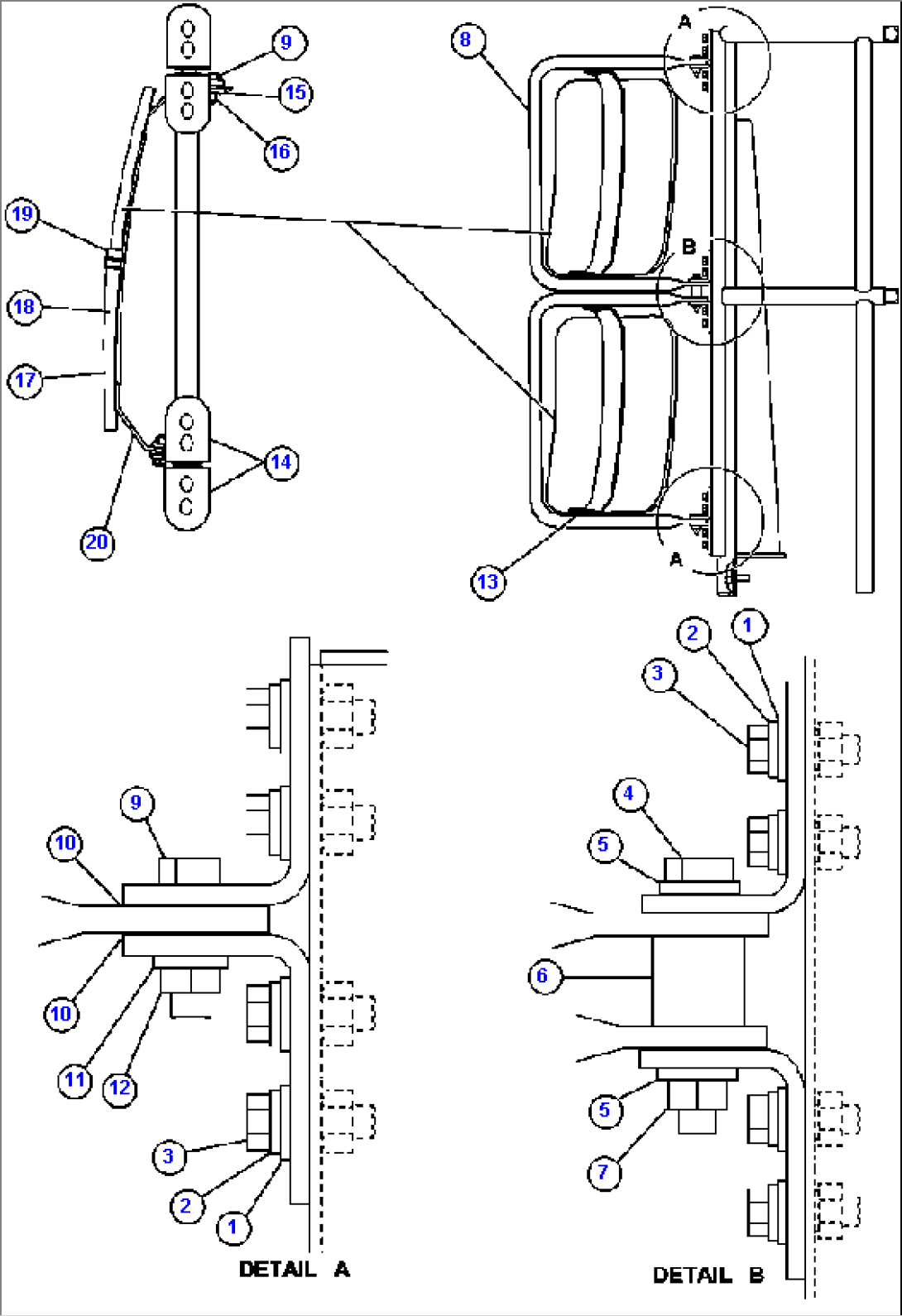

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01643-30823 | FLAT WASHER - M8 | ||
| 2 | MM0470 | LOCKWASHER - M8 | ||
| 3 | MM0026 | CAPSCREW - M8 X 1.25 X 25 | ||
| 4 | MM0079 | CAPSCREW - M10 X 1.50 X 70 | ||
| 5 | 01643-31032 | FLAT WASHER - M10 | ||
| 6 | EG8426 | SPACER | ||
| 7 | MM0719 | NUT - M10 X 1.50 | ||
| 7 | PB7490 | ARM BOW ASSEMBLY | ||
| 8 | VE5449 | BOW, ARM | ||
| 9 | C1603 | CAPSCREW - 3/8" - 16NC X 1 1/4" (1) | ||
| 10 | VE5451 | WASHER, FIBER - 25/64" X 7/8" (1) | ||
| 11 | H5304 | LOCKWASHER - 3/8" (1) | ||
| 12 | SD4572 | JAMNUT - 3/8" - 16NC (1) | ||
| 13 | VE5453 | CLAMP (1) | ||
| 14 | VE5454 | ANGLE, MOUNTING (1) | ||
| 15 | VE5452 | WASHER - 13/32" (1) | ||
| 16 | C1521 | NUT - 3/8" - 16NC (1) | ||
| 16 | PB7491 | CONVEX MIRROR ASSEMBLY | ||
| 17 | VE5445 | GLASS, CONVEX | ||
| 18 | VE5447 | TRIM, PINCHWELT | ||
| 19 | VE5446 | SPRING, CLIP | ||
| 20 | VE5448 | STRAP, MIRROR | ||
| NS|23 | VE5450 | NOTE: (1) INCLUDED IN VE5450 REPAIR KIT. |
