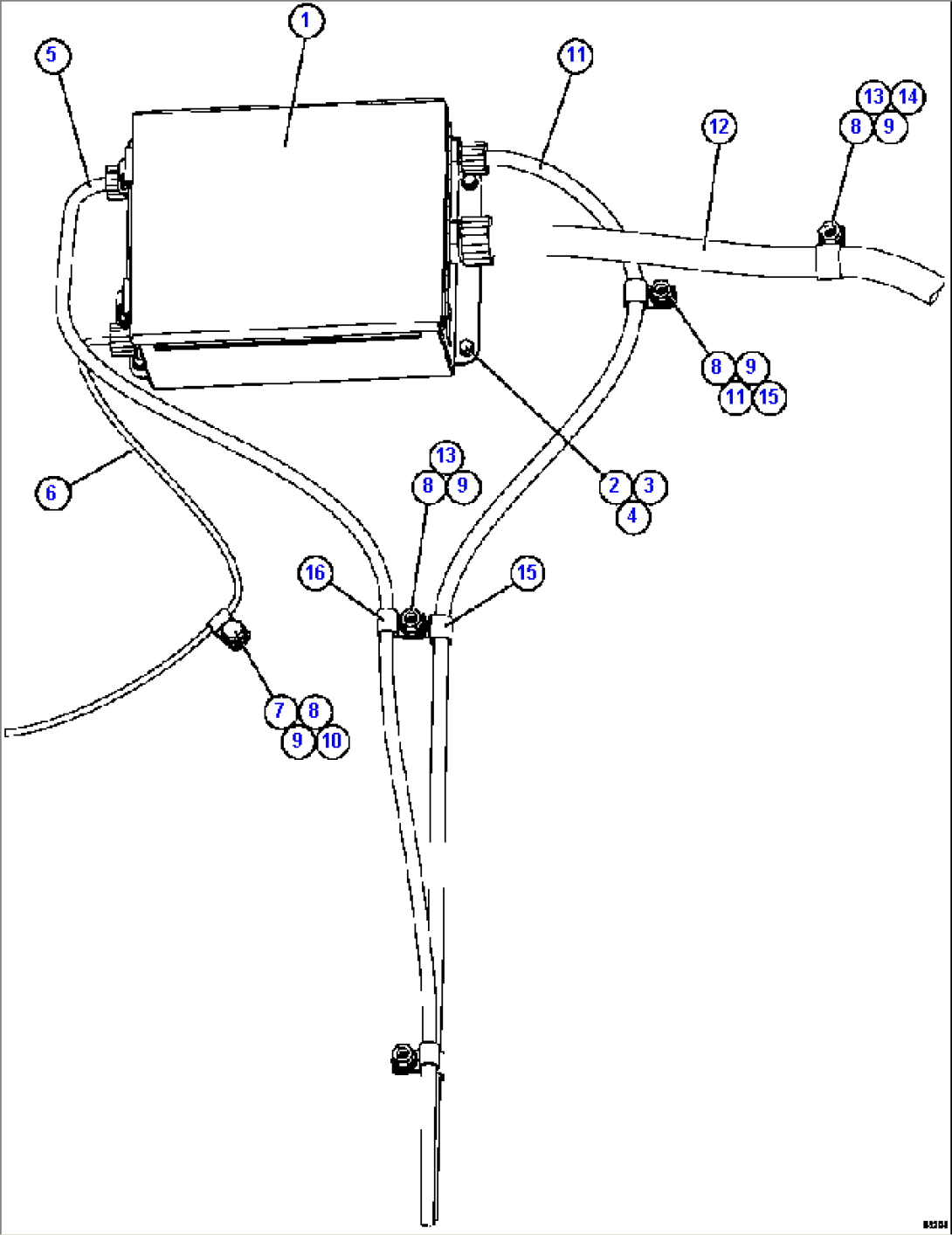

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | XB8637 | JUNCTION BOX ASSEMBLY - RH (SEE INDEX) | ||
| 2 | MM0025 | CAPSCREW - M6 X 1.00 X 20 | ||
| 3 | MM0469 | LOCKWASHER - M6 | ||
| 4 | MM0459 | FLAT WASHER - M6 | ||
| 5 | XC3833 | HARNESS, ACCESSORY DRIVE | ||
| 6 | 58D-06-80030 | HARNESS, PLM SENSOR - RH | ||
| 7 | MM0605 | CAPSCREW - M10 X 1.50 X 25 | ||
| 8 | MM0471 | LOCKWASHER - M10 | ||
| 9 | MM0461 | FLAT WASHER - M10 | ||
| 10 | WB3097 | CLAMP, CUSHIONED - 1/2" | ||
| 11 | 58D-06-10040 | HARNESS, RH WHEEL SPEED SENSOR | ||
| 12 | 58D-06-10110 | HARNESS, JUNCTION BOX | ||
| 13 | MM0178 | NUT - M10 X 1.50 | ||
| 14 | WB3093 | CLAMP, CUSHIONED - 1" | ||
| 15 | WB1304 | CLAMP, CUSHIONED - 9/16" | ||
| 16 | WB3097 | CLAMP, CUSHIONED - 1/2" |
