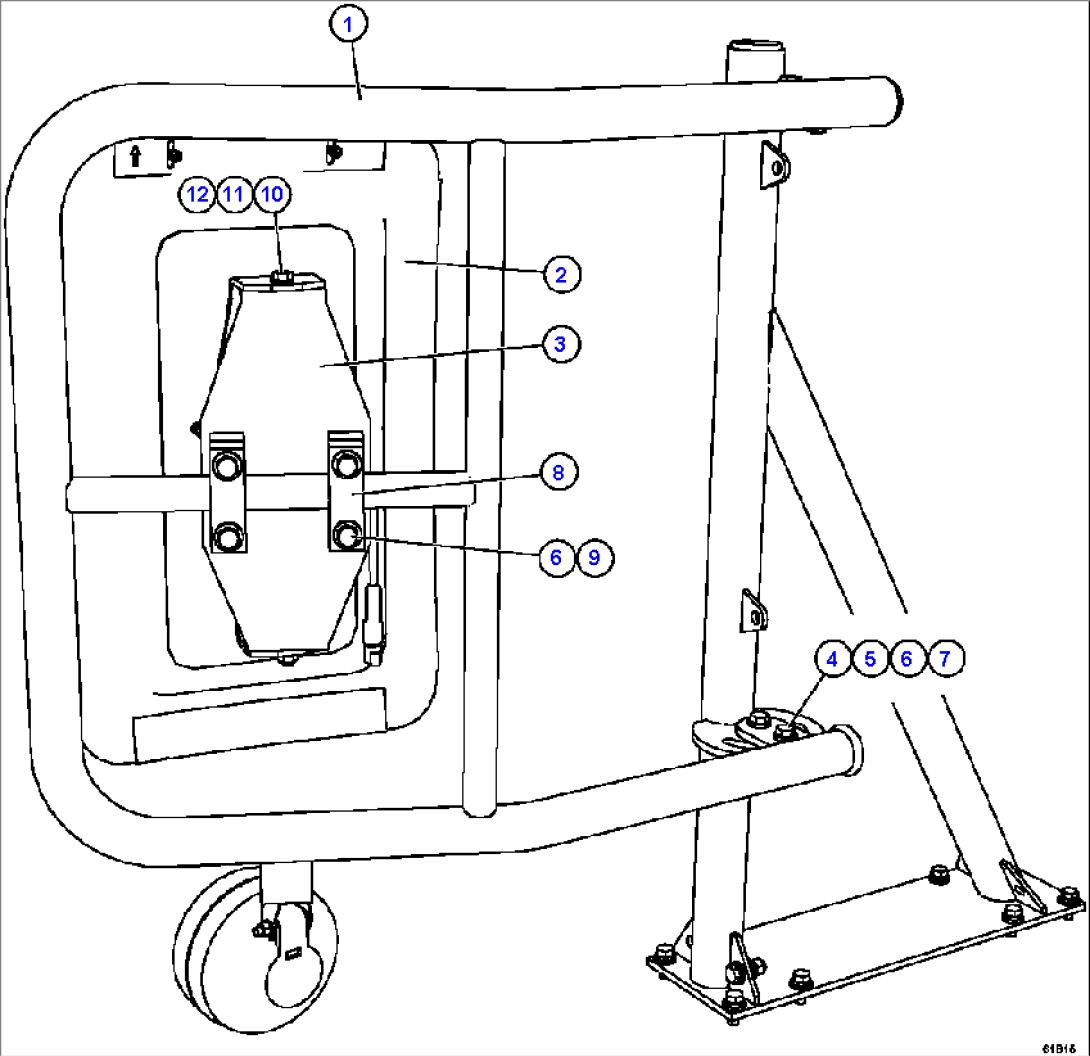

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EM9031 | MOUNT, MIRROR | ||
| 2 | PC2930 | MIRROR, HEATED | ||
| 2 | XA5483 | REPAIR KIT, GLASS | ||
| 2 | XA5484 | REPAIR KIT, TOP MIRROR CAP | ||
| 2 | XA5485 | REPAIR KIT, HEATED MIRROR CASE | ||
| 2 | XA5486 | REPAIR KIT, BALL STUD | ||
| 2 | XA5487 | REPAIR KIT, WIRING REPAIR | ||
| 3 | XB5568 | MOUNT, MIRROR | ||
| 4 | MM0621 | CAPSCREW - M12 X 1.75 X 45 | ||
| 5 | MM0472 | LOCKWASHER - M12 | ||
| 6 | MM0714 | FLAT WASHER - M12 | ||
| 7 | MM0179 | NUT - M12 X 1.75 | ||
| 8 | EM9038 | CLAMP | ||
| 9 | MM0623 | CAPSCREW - M12 X 1.75 X 60 | ||
| 10 | MM0606 | CAPSCREW - M10 X 1.50 X 30 | ||
| 11 | MM0713 | FLAT WASHER - M10 | ||
| 12 | MM0693 | LOCKNUT - M10 X 1.50 |
