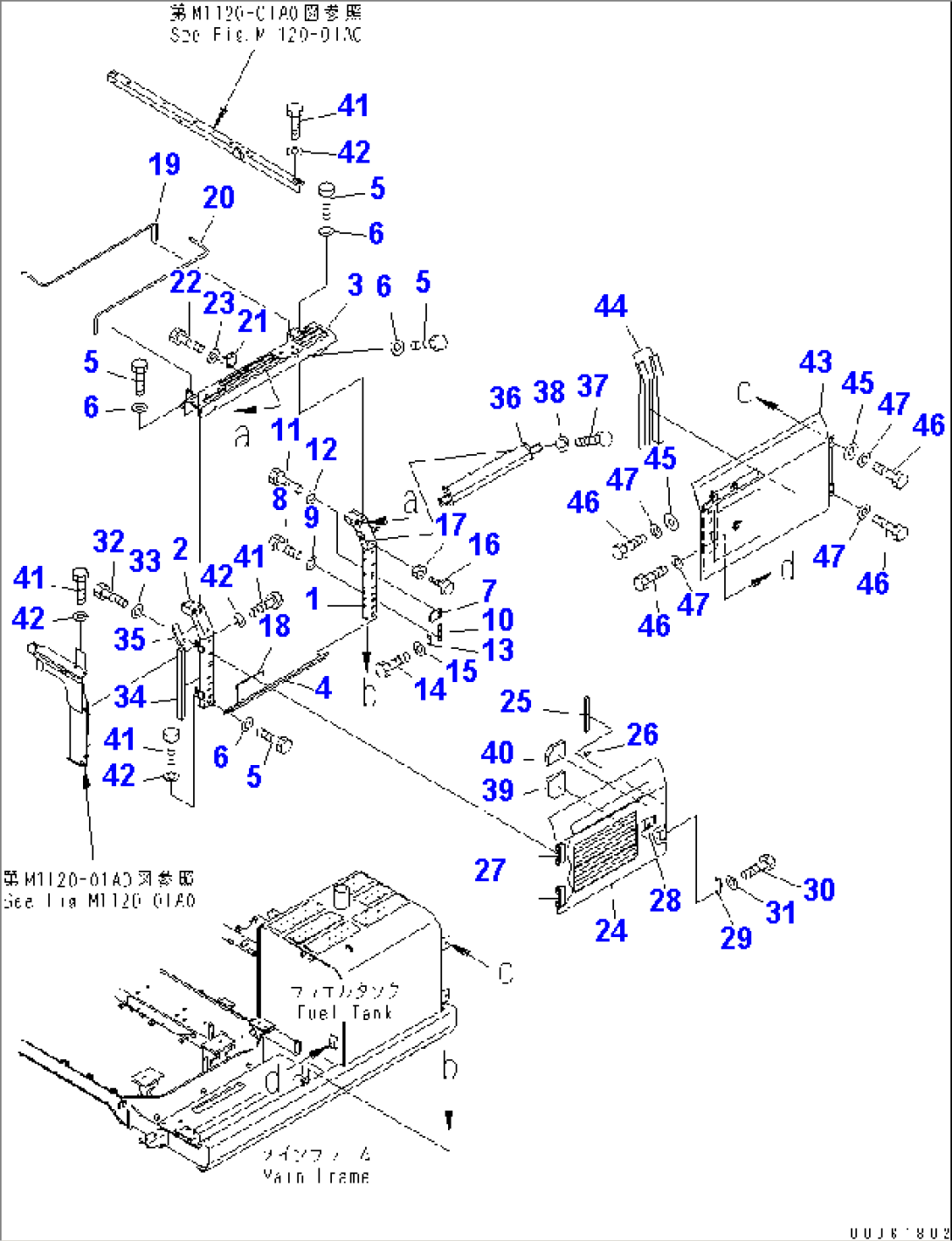

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8234-54-2620 | FRAME | 1001- | |
| 2 | 8234-54-2630 | FRAME | 1001- | |
| 3 | 8234-54-1152 | FRAME | 1003- | |
| 3 | \0\8234-54-1151 | FRAME | 1001-1002 | |
| 4 | 8234-54-1160 | PLATE | 1001- | |
| 5 | 01010-81230 | BOLT | 1001- | |
| 6 | 01643-31232 | WASHER | 1001- | |
| 7 | 208-54-71930 | PLATE | 1001- | |
| 8 | 01010-81230 | BOLT | 1001- | |
| 9 | 01643-31232 | WASHER | 1001- | |
| 10 | 208-54-71940 | BRACKET | 1001- | |
| 11 | 01010-81230 | BOLT | 1001- | |
| 12 | 01643-31232 | WASHER | 1001- | |
| 13 | 205-54-51970 | DOVE TAIL | 1001- | |
| 14 | 01010-80616 | BOLT | 1001- | |
| 15 | 01643-30623 | WASHER | 1001- | |
| 16 | 20Y-54-11611 | STOPPER | 1001- | |
| 17 | 01580-11008 | NUT | 1001- | |
| 18 | 20Y-54-29231 | BAR | 1001- | |
| 19 | 207-54-62150 | SPRING | 1001- | |
| 20 | 207-54-62160 | SPRING | 1001- | |
| 21 | 15R-62-11160 | PLATE | 1001- | |
| 22 | 01010-81230 | BOLT | 1001- | |
| 23 | 01643-31232 | WASHER | 1001- | |
| 24 | 8234-54-2640 | COVER | 1001- | |
| 25 | 207-54-76330 | SHEET | 1001- | |
| 26 | 207-54-76360 | SHEET | 1001- | |
| 27 | 20Y-54-63414 | HINGE (WELDED) | 1001- | |
| 28 | 198-54-41982 | LOCK ASS'Y (WELDED) | 1001- | |
| 29 | 205-54-53550 | DOVE TAIL | 1001- | |
| 30 | 01010-80612 | BOLT | 1001- | |
| 31 | 01643-30623 | WASHER | 1001- | |
| 32 | 01010-81225 | BOLT | 1001- | |
| 33 | 01643-31232 | WASHER | 1001- | |
| 34 | 208-54-73710 | SHEET | 1001- | |
| 35 | 208-54-73730 | SHEET | 1001- | |
| 36 | 208-54-76881 | LOUVER | 1001- | |
| 37 | 01010-81230 | BOLT | 1001- | |
| 38 | 01643-31232 | WASHER | 1001- | |
| 39 | 8234-54-3150 | SHEET | 1001- | |
| 40 | 8234-54-3160 | SHEET | 1001- | |
| 41 | 01010-81230 | BOLT | 1001- | |
| 42 | 01643-31232 | WASHER | 1001- | |
| 43 | 8234-54-1141 | COVER | 1014- | |
| 43 | \0\8234-54-1140 | COVER | 1001-1013 | |
| 44 | 208-54-73131 | SHEET | 1001- | |
| 45 | 203-54-62670 | COLLAR | 1001- | |
| 46 | 01010-81230 | BOLT | 1001- | |
| 47 | 01643-31232 | WASHER | 1001- |
