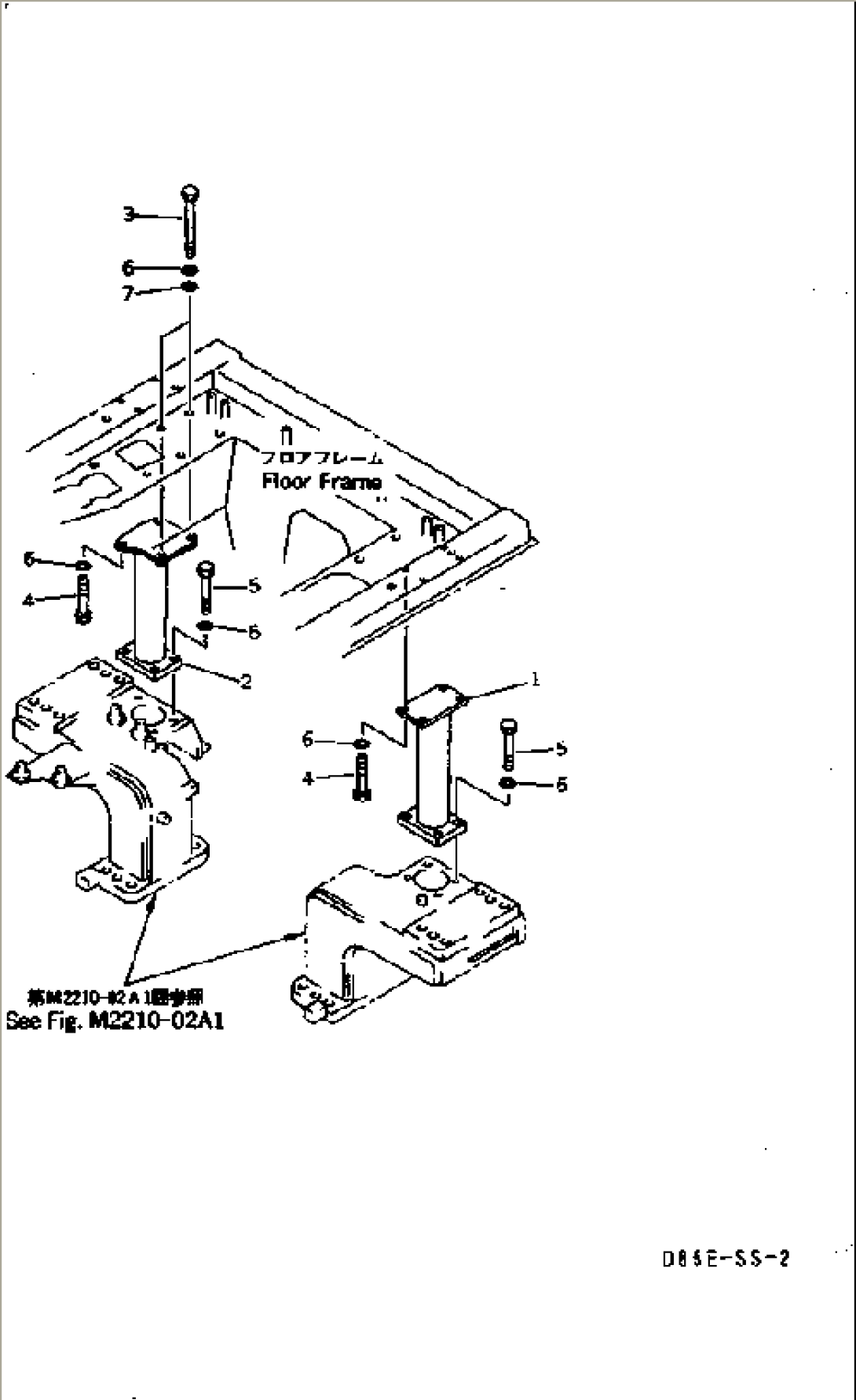

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-54-17142 | BRACKET,L.H. | 3010- | |
| 1 | 14X-54-17141 | BRACKET,L.H. | 3001-3009 | |
| 2 | 14X-54-17171 | BRACKET,R.H. | 3010- | |
| 2 | 14X-54-17170 | BRACKET,R.H. | 3001-3009 | |
| 3 | 01011-51605 | BOLT | 3010- | |
| 3 | 01010-51285 | BOLT | 3001-3009 | |
| 4 | 01010-51655 | BOLT | 3010- | |
| 4 | 01010-51230 | BOLT | 3001-3009 | |
| 5 | 01010-51660 | BOLT | 3010- | |
| 5 | 01010-51250 | BOLT | 3001-3009 | |
| 6 | 20T-01-35570 | SPACER | 3010- | |
| 6 | 01643-31232 | WASHER | 3001-3009 | |
| 7 | 01643-31645 | WASHER | 3010- | |
| 7 | 01643-31645 | WASHER | 3001-3009 |
