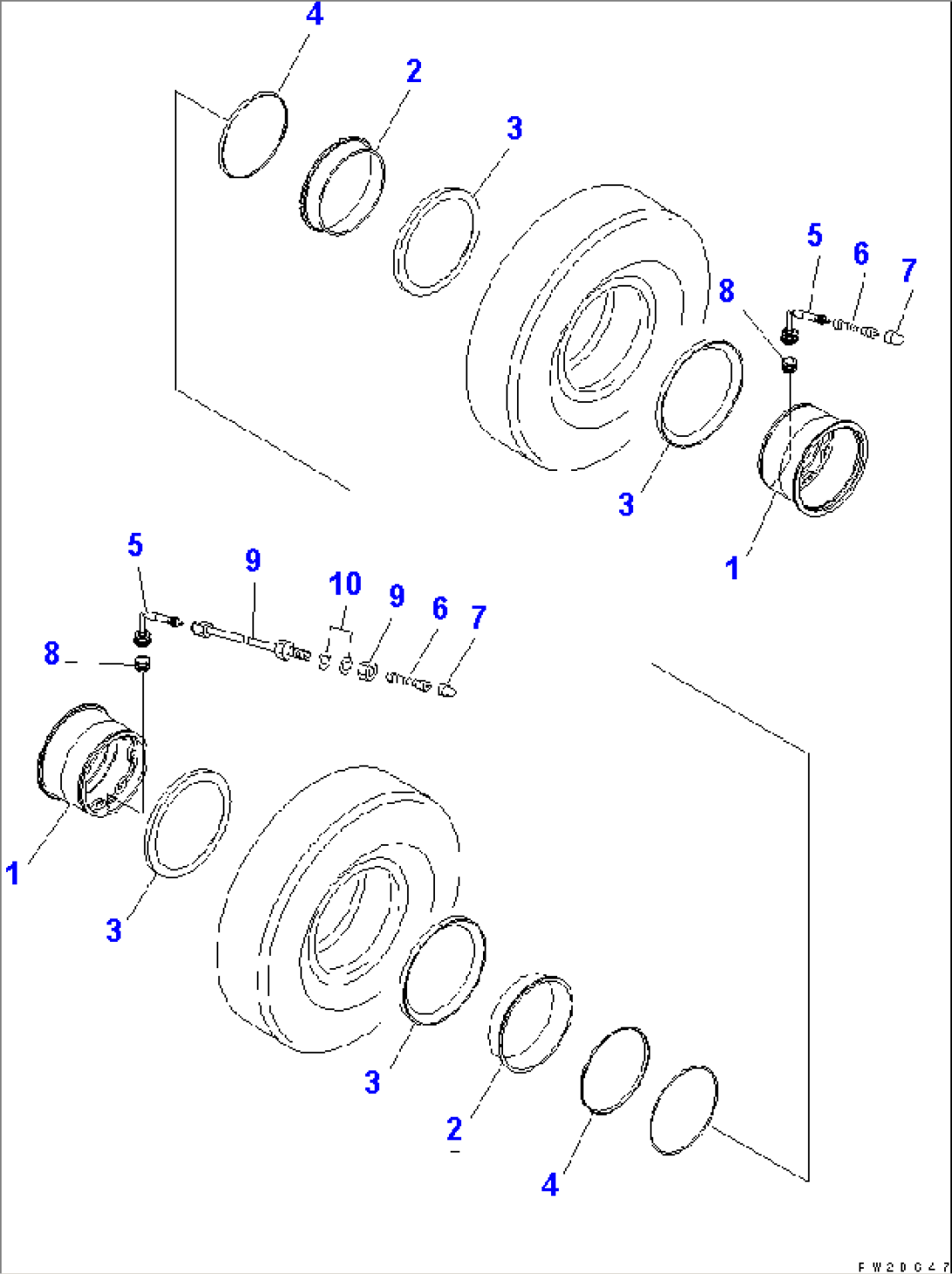

| Item | Part No. | Part Name | Qty | Serial No. |
| 569-30-71500 | RIM ASS'Y | 7001-@ | ||
| 1 | 569-30-71510 | RIM,BASE | 7001-@ | |
| 2 | 568-30-11521 | RING,BEAD SEAT | 7001-@ | |
| 3 | 568-30-11531 | RING,SIDE | 7001-@ | |
| 4 | 568-30-11541 | RING,LOCK | 7001-@ | |
| 569-30-71600 | VALVE | 7001-. | ||
| 5 | 569-30-71610 | VALVE,STEM | 7001-. | |
| 6 | 09281-00041 | CORE,VALVE | 7001-. | |
| 7 | 09282-00022 | CAP,VALVE | 7001-. | |
| 8 | 09283-00000 | SEAT,VALVE | 7001-. | |
| 9 | 569-30-72130 | EXTENSION,(SEE FIG. S0100-03A0A) | 7001-. | |
| 9 | (\2\09284-00065) | EXTENSION | (7001-.) | |
| 10 | 01640-21223 | WASHER | 7001-@ |
