| Item | Part No. | Part Name | Qty | Serial No. |
| WHEEL | ||||
| FOR 17.5-25 | ||||
| 417-W25-2100 | WHEEL ASS'Y | 50001- | ||
| 1 | 417-W25-1110 | BASE | 50001- | |
| 2 | 418-30-11120 | FLANGE,SIDE | 50001- | |
| 3 | 418-30-11130 | RING,LOCK | 50001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa180pt 3 s/n 50001 up (parallel linkage spec.)
- Suspension and wheel related parts
- Rim (for 17.5 25 tubeless tire)
Поиск по каталогу

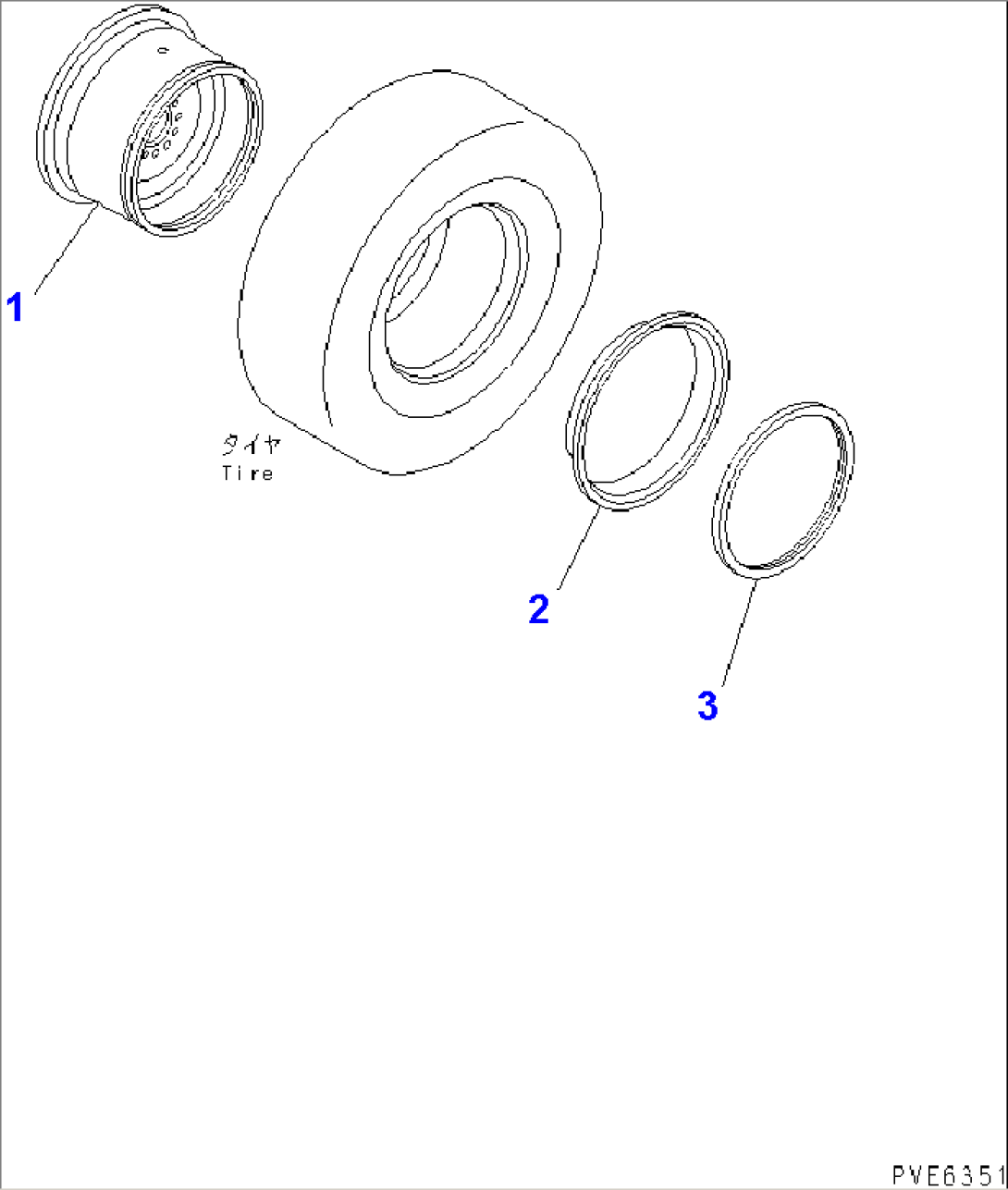

RIM (FOR 17.5-25 TUBELESS TIRE)
