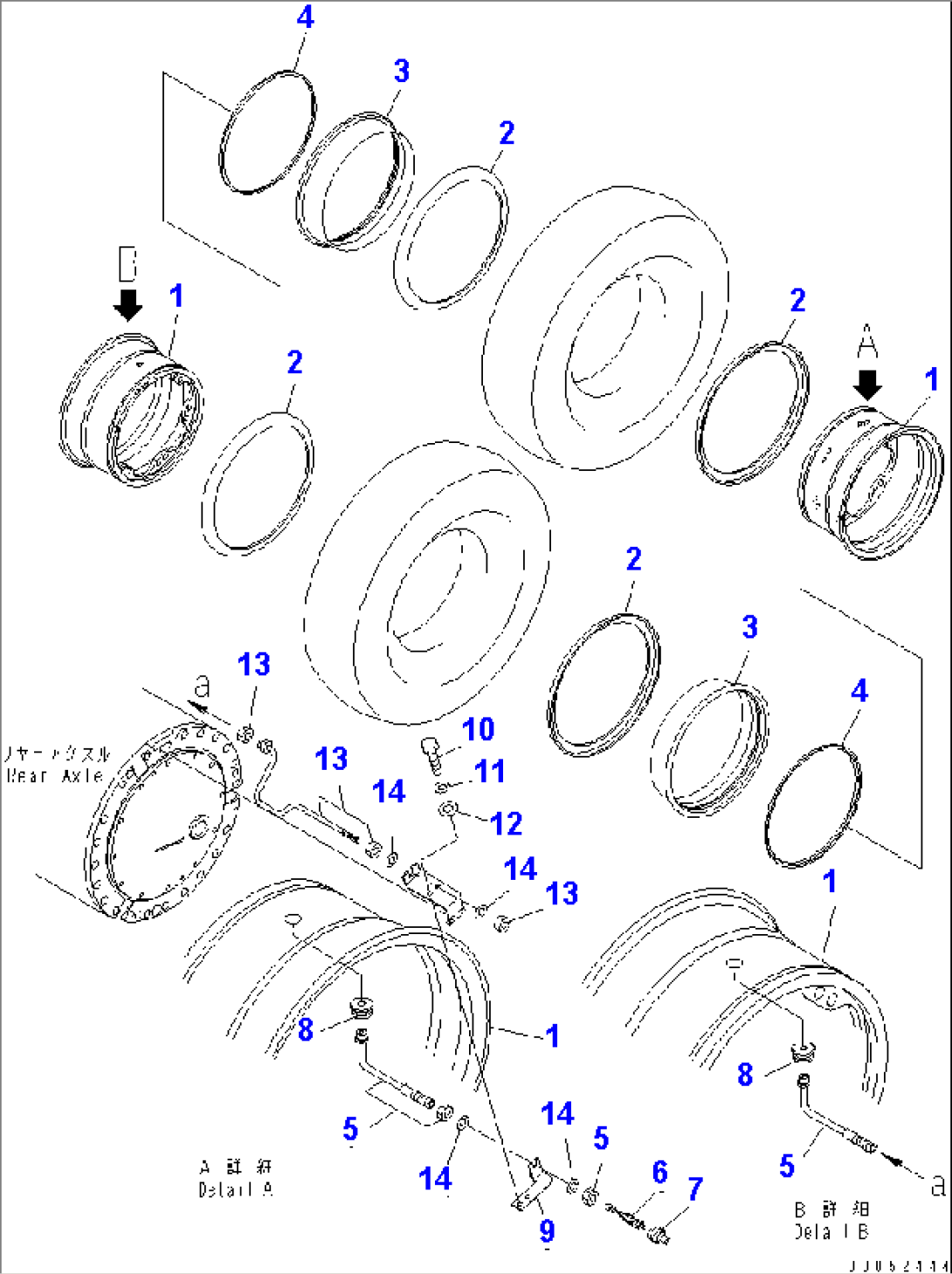

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-30-84002 | WHEEL ASS'Y,REAR | 11001- | ||
| 566-30-83200 | RIM ASS'Y | 11001- | ||
| 1 | 566-30-83210 | RIM,BASE | 11001- | |
| 2 | 566-30-73230 | RING,SIDE | 11001- | |
| 3 | 566-30-73220 | BAND,BEAD SEAT | 11001- | |
| 4 | 566-30-83240 | RING,LOCK | 11001- | |
| 566-30-82600 | VALVE ASS'Y | 11001- | ||
| 5 | 566-30-82610 | VALVE,STEM | 11001- | |
| 6 | 09281-00041 | CORE,VALVE | 11001- | |
| 7 | 09282-00022 | CAP,VALVE | 11001- | |
| 8 | 09283-00000 | SEAT,VALVE | 11001- | |
| 9 | 566-30-81713 | COVER | 11001- | |
| 10 | 01010-80820 | BOLT | 11001- | |
| 11 | 01643-30823 | WASHER | 11001- | |
| 12 | 01643-31032 | WASHER | 11001- | |
| 13 | 566-30-82131 | EXTENSION | 11001- | |
| 14 | 01643-21223 | WASHER | 11001- |
