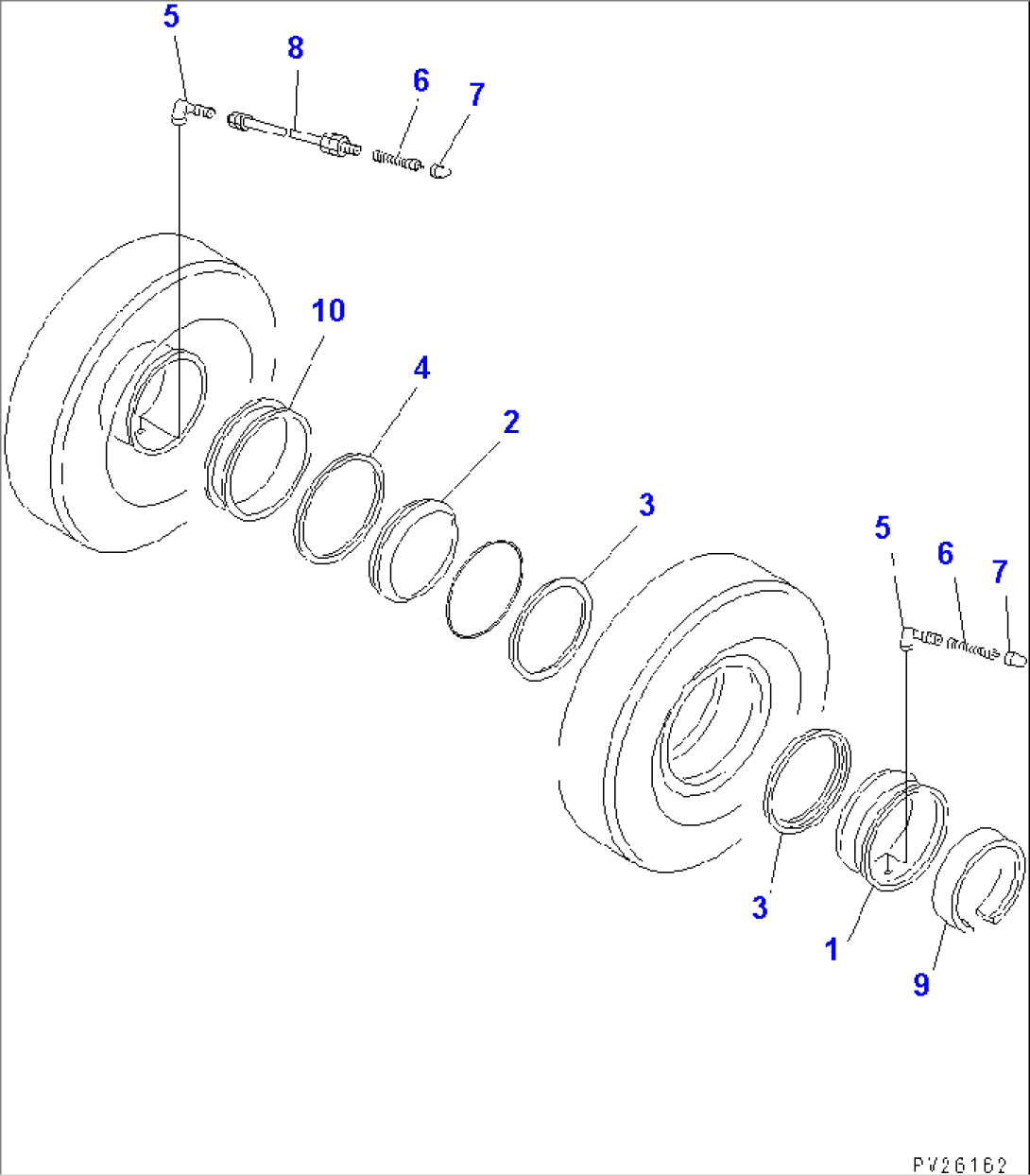

| Item | Part No. | Part Name | Qty | Serial No. |
| 561-30-63600 | RIM ASS'Y | 4001- | ||
| 1 | 561-30-63210 | RIM | 4001- | |
| 2 | 561-30-11520 | BAND | 4001- | |
| 3 | 561-30-63630 | RING | 4001- | |
| 4 | 561-30-11540 | LOCK | 4001- | |
| 569-30-11600 | VALVE ASS'Y | 4001- | ||
| 5 | 569-30-11611 | VALVE ASS'Y | 4001- | |
| 6 | 09281-00041 | CORE | 4001- | |
| 7 | 09282-00022 | CAP | 4001- | |
| 8 | 09284-00045 | EXTENSION ASS'Y | 4001- | |
| 9 | 561-30-62111 | RING | 4001- | |
| 10 | 561-30-62120 | SPACER | 4001- |
