| Item | Part No. | Part Name | Qty | Serial No. |
| (154-60-52003) | HYDRAULIC TANK ASS'Y | 26003- | ||
| \0\154-60-52002 | HYDRAULIC TANK ASS'Y | 26001-26002 | ||
| \0\154-60-52001 | HYDRAULIC TANK ASS'Y | 25001-26000 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2611 TO 2626. | ||||
| 701-32-27001 | VALVE ASS'Y,RIPPER | 26003- | ||
| \0\701-32-27000 | VALVE ASS'Y,RIPPER | 25001-26002 | ||

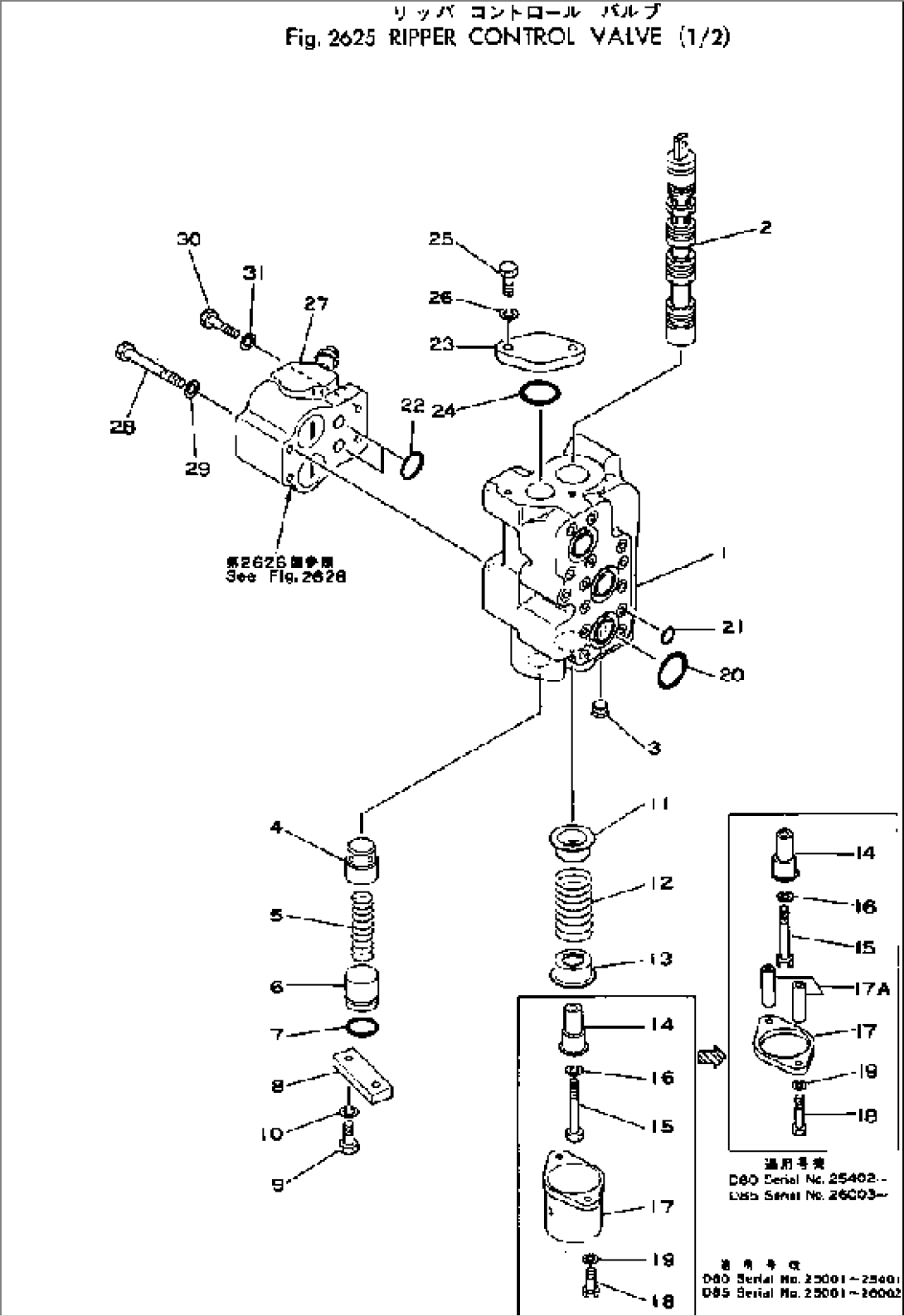

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2625 AND 2626. | ||||
| 701-32-42001 | CONTROL VALVE A. | 26003- | ||
| \0\701-32-42000 | CONTROL VALVE A. | 25001-26002 | ||
| 701-31-00070 | BODY ASS'Y | 25001- | ||
| 1 | \6\ | BODY | 25001- | |
| 2 | \6\ | SPOOL | 26001- | |
| 2 | \6\ | SPOOL | 25001-26000 | |
| 3 | 07043-00312 | PLUG | 25001- | |
| 4 | 701-33-31120 | VALVE | 25001- | |
| 5 | 701-33-31130 | SPRING | 25001- | |
| 6 | 701-33-31150 | SEAT | 25001- | |
| 7 | 07000-13035 | O-RING | 25001- | |
| 8 | 701-33-31160 | PLATE | 25001- | |
| 9 | 01010-31235 | BOLT | 25001- | |
| 10 | 01602-01236 | WASHER,SPRING | 25001- | |
| 11 | 701-33-31380 | RETAINER | 25001- | |
| 12 | 701-33-31191 | SPRING | 26003- | |
| 12 | \0\701-31-31130 | SPRING | 25001-26002 | |
| 13 | 701-33-31380 | RETAINER | 26003- | |
| 13 | 701-33-31390 | RETAINER | 25001-26002 | |
| 14 | 701-33-46171 | COLLAR | 26003- | |
| 14 | 701-33-46180 | COLLAR | 25001-26002 | |
| 15 | 01010-31280 | BOLT | 25001- | |
| 16 | 01602-01236 | WASHER | 25001- | |
| 17 | 701-33-46340 | PLATE | 26003- | |
| 17 | 701-33-46190 | CASE | 25001-26002 | |
| 17A | 701-33-46350 | COLLAR | 25001- | |
| 18 | 01010-31095 | BOLT | 26003- | |
| 18 | 01010-31030 | BOLT | 25001-26002 | |
| 19 | 01602-01030 | WASHER,SPRING | 25001- | |
| 20 | 07000-13045 | O-RING | 25001- | |
| 21 | 07000-12015 | O-RING | 25001- | |
| 22 | 07000-13030 | O-RING | 25001- | |
| 23 | 701-33-31360 | PLATE | 25001- | |
| 24 | 07000-13040 | O-RING | 25001- | |
| 25 | 01010-31440 | BOLT | 25001- | |
| 26 | 01602-01442 | WASHER,SPRING | 25001- | |
| 27 | 701-30-99000 | SAFETY VALVE ASS'Y | 25001- | |
| 28 | 01011-31210 | BOLT | 25001- | |
| 29 | 01602-01236 | WASHER,SPRING | 25001- | |
| 30 | 01010-31245 | BOLT | 25001- | |
| 31 | 01602-01236 | WASHER,SPRING | 25001- |
