| Item | Part No. | Part Name | Qty | Serial No. |
| (700-91-38002) | VALVE ASS'Y | 35001- | ||

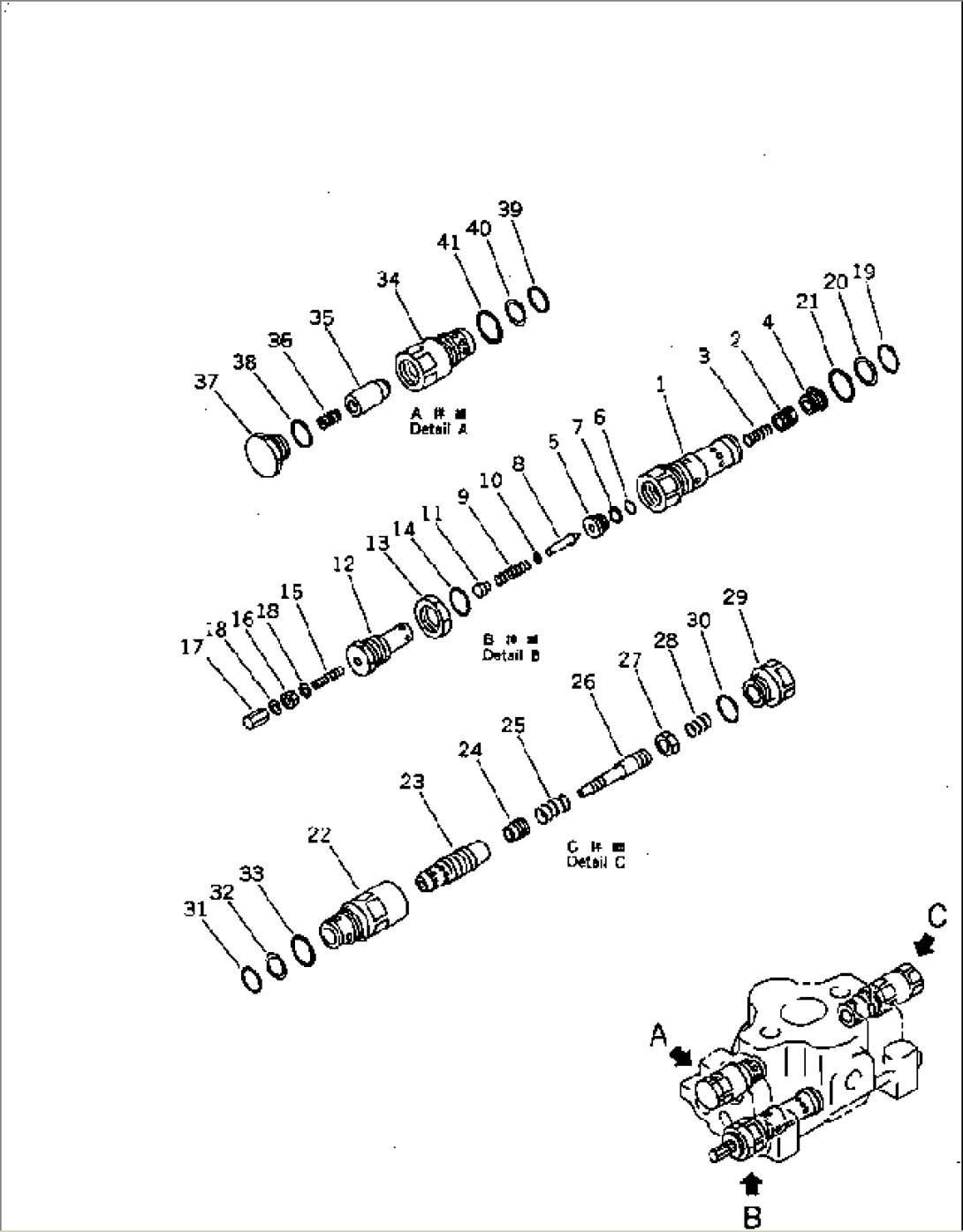

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6231 AND 6232. | ||||
| 709-90-51500 | VALVE ASS'Y,MAIN RELIEF | 35001- | ||
| 1 | \6\ | SLEEVE | 35001- | |
| 2 | \6\ | VALVE | 35001- | |
| 3 | 700-90-51320 | SPRING | 35001- | |
| 4 | \6\ | PLUG | 35001- | |
| 5 | 700-90-51150 | SEAT | 35001- | |
| 6 | 07000-22016 | O-RING | 35001- | |
| 7 | 07001-02016 | RING,BACK-UP | 35001- | |
| 8 | 700-80-61190 | POPPET | 35001- | |
| 9 | 700-90-51160 | SPRING | 35001- | |
| 10 | 700-80-51240 | SPACER | 35001- | |
| 11 | 700-90-51250 | RETAINER | 35001- | |
| 12 | 700-90-51270 | HOLDER | 35001- | |
| 13 | 700-90-51190 | NUT | 35001- | |
| 14 | 07002-03034 | O-RING | 35001- | |
| 15 | 700-90-51281 | SCREW | 35001- | |
| 16 | 01580-10806 | NUT | 35001- | |
| 17 | 700-90-51311 | NUT | 35001- | |
| 18 | 700-90-51290 | WASHER,SEAL | 35001- | |
| 19 | 700-93-11320 | O-RING | 35001- | |
| 20 | 700-93-11330 | RING,BACK-UP | 35001- | |
| 21 | 07002-03634 | O-RING | 35001- | |
| 700-90-76000 | VALVE ASS'Y,SUCTION AND SAFETY | 35001- | ||
| 22 | \6\ | SLEEVE | 35001- | |
| 23 | \6\ | VALVE | 35001- | |
| 24 | \6\ | POPPET | 35001- | |
| 25 | \6\ | SPRING | 35001- | |
| 26 | \6\ | PISTON | 35001- | |
| 27 | \6\ | NUT | 35001- | |
| 28 | 700-90-61170 | SPRING | 35001- | |
| 29 | 700-90-61180 | PLUG | 35001- | |
| 30 | 07002-13634 | O-RING | 35001- | |
| 31 | 700-93-11320 | O-RING | 35001- | |
| 32 | 700-93-11330 | RING,BACK-UP | 35001- | |
| 33 | 07002-03634 | O-RING | 35001- | |
| 700-90-88000 | VALVE ASS'Y | 35001- | ||
| 34 | \6\ | SLEEVE | 35001- | |
| 35 | \6\ | VALVE | 35001- | |
| 36 | 700-90-61170 | SPRING | 35001- | |
| 37 | 700-90-62130 | PLUG | 35001- | |
| 38 | 07002-13034 | O-RING | 35001- | |
| 39 | 700-93-11320 | O-RING | 35001- | |
| 40 | 700-93-11330 | RING,BACK-UP | 35001- | |
| 41 | 07002-03634 | O-RING | 35001- |
