| Item | Part No. | Part Name | Qty | Serial No. |

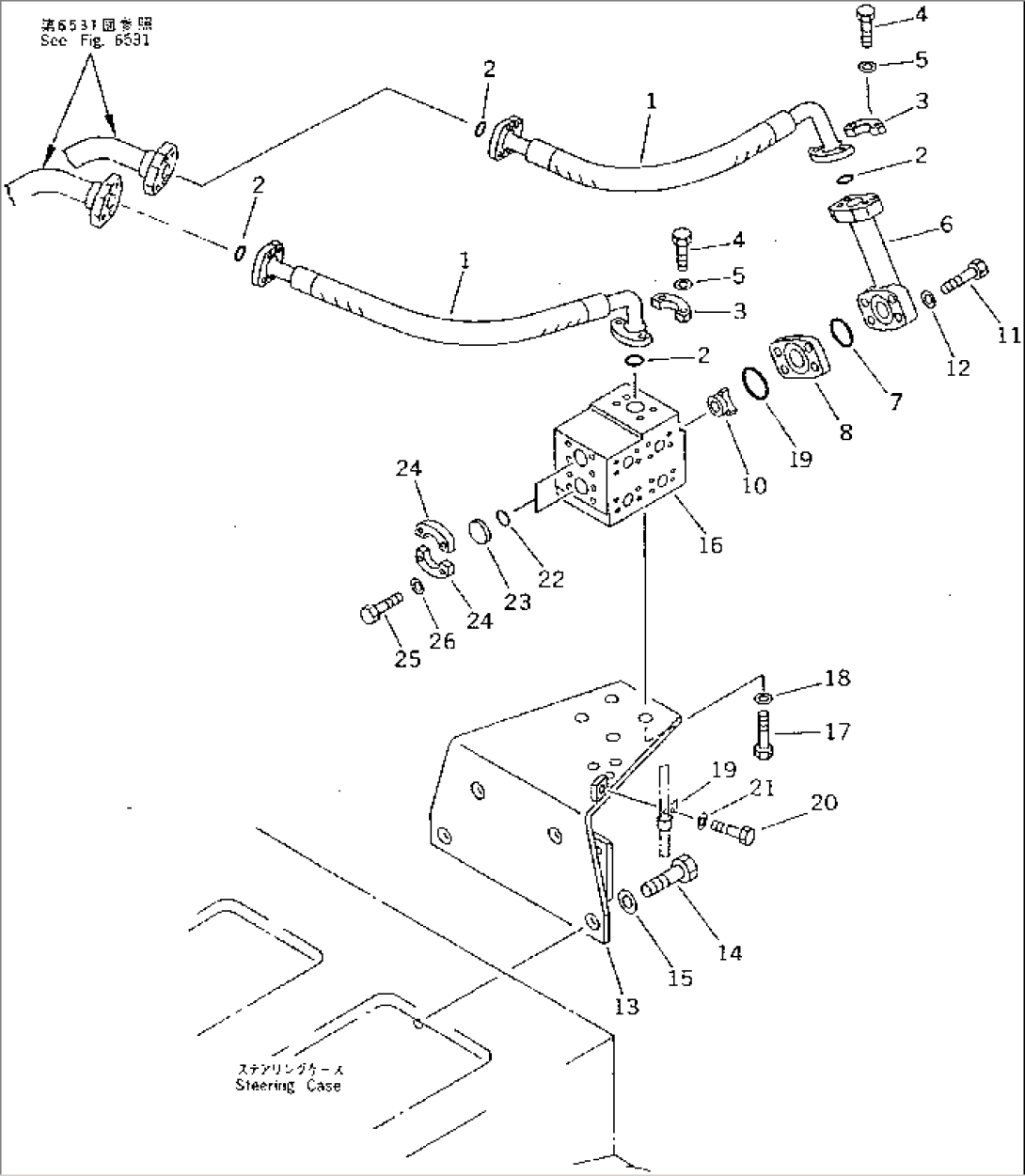

| G1 | (\8\15A-78-2210) | PIPING GROUP | 10301- | |
| ==================== | ||||
| 1 | 07124-01006 | HOSE | 10301- | |
| 2 | 07000-13032 | O-RING | 10301- | |
| 3 | 07371-31049 | FLANGE | 10301- | |
| 4 | 07372-21035 | BOLT | 10301- | |
| 5 | 01643-51032 | WASHER | 10301- | |
| 6 | 15A-78-12340 | TUBE | 10301- | |
| 7 | 07000-13038 | O-RING | 10301- | |
| 8 | 15A-78-12360 | PLATE | 10301- | |
| 9 | 07000-13045 | O-RING | 10301- | |
| 10 | 15A-78-12370 | VALVE | 10301- | |
| 11 | 01010-51250 | BOLT | 10301- | |
| 12 | 01643-31232 | WASHER | 10301- | |
| 13 | 15A-78-12350 | BRACKET | 10301- | |
| 14 | 01010-52055 | BOLT | 10301- | |
| 15 | 01643-32060 | WASHER | 10301- | |
| 16 | 15A-78-12330 | BODY | 10301- | |
| 17 | 01010-51230 | BOLT | 10301- | |
| 18 | 01643-31232 | WASHER | 10301- | |
| 19 | 08036-21414 | CLIP | 10301- | |
| 20 | 01010-51225 | BOLT | 10301- | |
| 21 | 01643-31232 | WASHER | 10301- | |
| 22 | 07000-13032 | O-RING | 10301- | |
| 23 | 07378-11000 | HEAD | 10301- | |
| 24 | 07371-31049 | FLANGE | 10301- | |
| 25 | 07372-21035 | BOLT | 10301- | |
| 26 | 01643-51032 | WASHER | 10301- | |
| ==================== |
