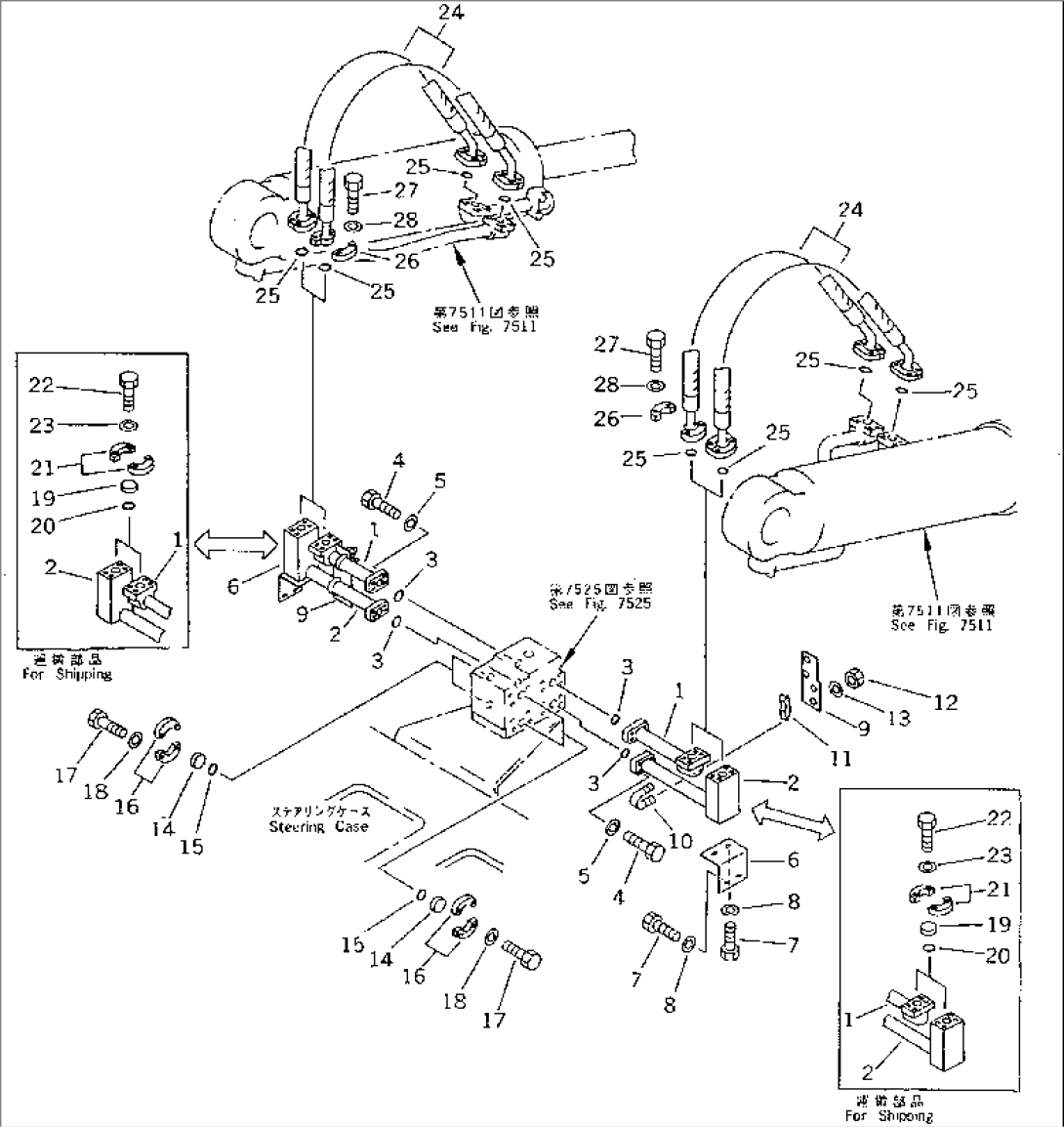

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\15A-78-X2220) | PIPING GROUP | 10301- | |
| ==================== | ||||
| 1 | 15A-78-12110 | TUBE | 10301- | |
| 2 | 15A-78-12120 | TUBE | 10301- | |
| 3 | 07000-13030 | O-RING | 10301- | |
| 4 | 01010-50830 | BOLT | 10301- | |
| 5 | 01643-50823 | WASHER | 10301- | |
| 6 | 15A-78-12270 | BRACKET | 10301- | |
| 7 | 01010-51025 | BOLT | 10301- | |
| 8 | 01643-31032 | WASHER | 10301- | |
| 9 | 15A-78-12290 | PLATE | 10301- | |
| 10 | 07283-32746 | CLIP | 10301- | |
| 11 | 07283-52737 | SEAT | 10301- | |
| 12 | 01599-01011 | NUT | 10301- | |
| 13 | 01643-31032 | WASHER | 10301- | |
| 14 | 07378-10600 | HEAD | 10301- | |
| 15 | 07000-13025 | O-RING | 10301- | |
| 16 | 07371-30640 | FLANGE | 10301- | |
| 17 | 07372-21035 | BOLT | 10301- | |
| 18 | 01643-51032 | WASHER | 10301- | |
| ==================== | ||||
| G-2 | (\8\15A-78-X2230) | BLANK PARTS GROUP | 10301- | |
| ==================== | ||||
| 19 | 07378-10600 | HEAD | 10301- | |
| 20 | 07000-13025 | O-RING | 10301- | |
| 21 | 07371-30640 | FLANGE | 10301- | |
| 22 | 07372-21035 | BOLT | 10301- | |
| 23 | 01643-51032 | WASHER | 10301- | |
| ==================== | ||||
| G-2 | (\8\15A-78-X2240) | PIPING GROUP | 10301- | |
| ==================== | ||||
| 24 | 07122-00610 | HOSE | 10301- | |
| 25 | 07000-13025 | O-RING | 10301- | |
| 26 | 07371-30640 | FLANGE | 10301- | |
| 27 | 07372-21035 | BOLT | 10301- | |
| 28 | 01643-51032 | WASHER | 10301- | |
| ==================== |
