| Item | Part No. | Part Name | Qty | Serial No. |

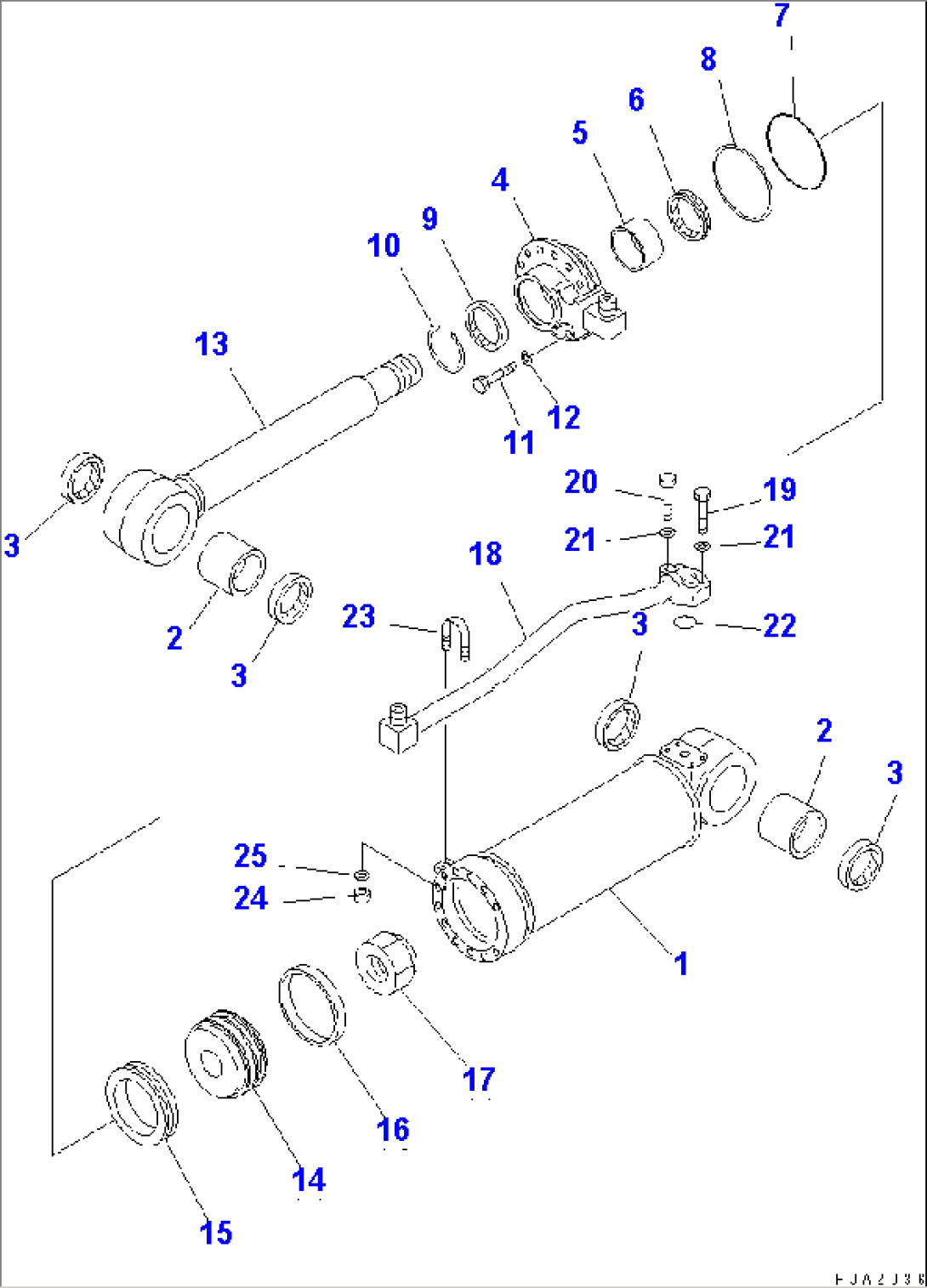

| G-1 | (\8\14X-63-X1052) | CYLINDER GROUP,RIPPER | 3001- | |
| ==================== | ||||
| 14X-63-01052 | CYLINDER ASS'Y,RIPPER | 3001- | ||
| 1 | 14X-63-42142 | CYLINDER | 3001- | |
| 2 | 07143-10707 | BUSHING | 3001- | |
| 3 | 07145-00075 | SEAL,DUST (KIT) | 3001- | |
| 4 | 707-27-14781 | HEAD,CYLINDER | 3001- | |
| 5 | 707-52-10700 | BUSHING | 3001- | |
| 6 | 707-51-70211 | PACKING,ROD (KIT) | 3001- | |
| 7 | 07000-12135 | O-RING (KIT) | 3001- | |
| 8 | 07146-02136 | RING,BACK-UP (KIT) | 3001- | |
| 9 | 144-63-95170 | SEAL,DUST (KIT) | 3001- | |
| 10 | 07179-12084 | RING,SNAP | 3001- | |
| 11 | 01010-81455 | BOLT | 3001- | |
| 12 | 01643-31445 | WASHER | 3001- | |
| 13 | 14X-63-42121 | ROD | 3001- | |
| 14 | 707-36-14120 | PISTON | 3001- | |
| 15 | 707-44-14180 | RING,PISTON (KIT) | 3001- | |
| 16 | 07156-01417 | RING,WEAR (KIT) | 3001- | |
| 17 | 07165-15252 | NUT | 3001- | |
| 18 | 14X-63-42182 | TUBE | 3001- | |
| 19 | 07372-21040 | BOLT | 3001- | |
| 20 | 07372-21050 | BOLT | 3001- | |
| 21 | 01643-51032 | WASHER | 3001- | |
| 22 | 07000-13030 | O-RING (KIT) | 3001- | |
| 23 | 07283-22738 | CLIP | 3001- | |
| 24 | 01599-01011 | NUT | 3001- | |
| 25 | 01643-31032 | WASHER | 3001- | |
| ==================== | ||||
| 707-98-52130 | SERVICE KIT | 3001- |
