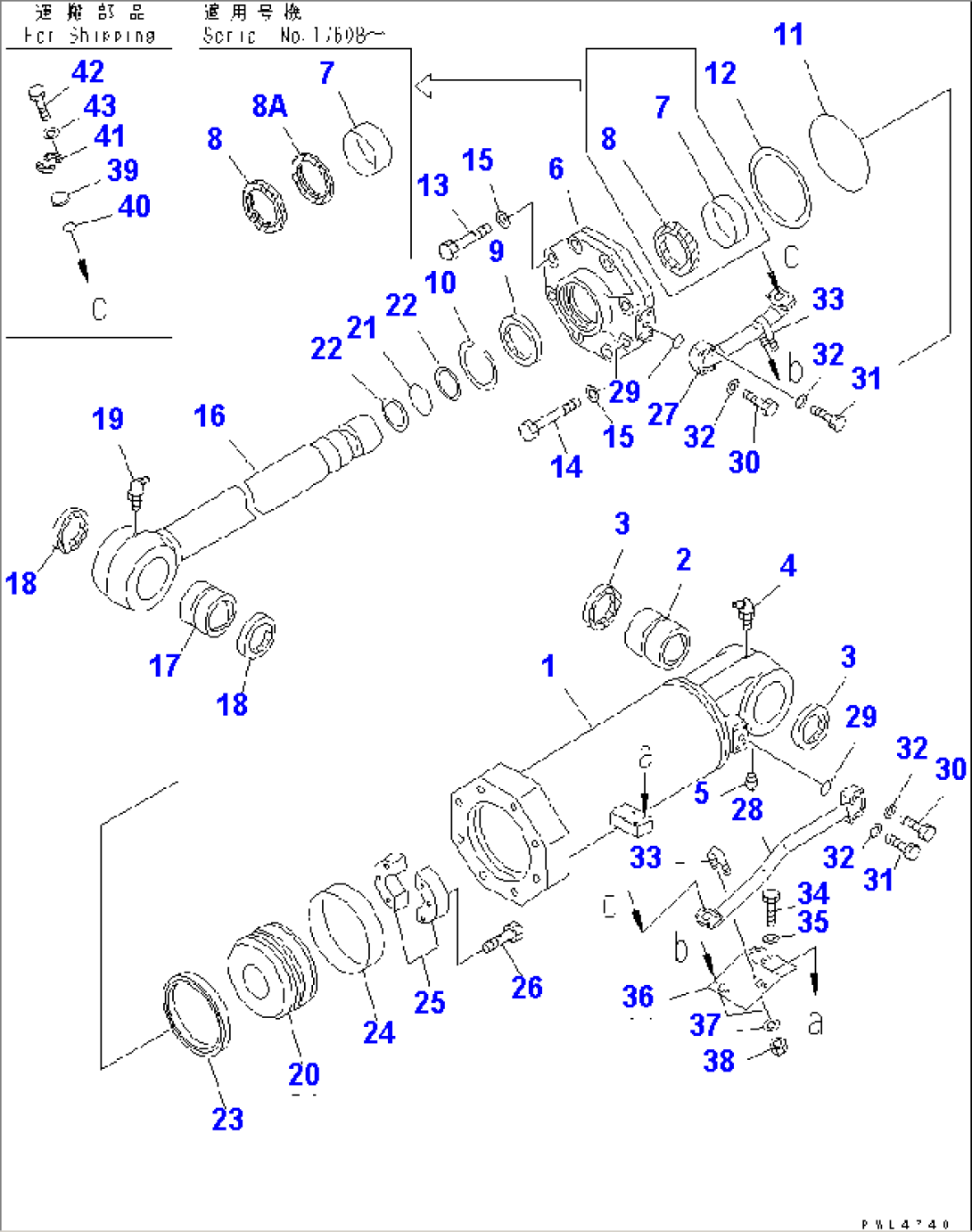

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\195-63-X1441) | CYLINDER GROUP,RIPPER LIFT¤ L.H. | | 17608- |
| G-1 | (\8\195-63-X1440) | CYLINDER GROUP,RIPPER LIFT¤ L.H. | | 17001-17607 |
| G-2 | (\8\195-63-X1451) | CYLINDER GROUP,RIPPER LIFT¤ R.H. | | 17608- |
| G-2 | (\8\195-63-X1450) | CYLINDER GROUP,RIPPER LIFT¤ R.H. | | 17001-17607 |
| | ==================== | | |
| 195-63-01441 | CYLINDER ASS'Y,L.H. | | 17608- |
| 195-63-01440 | CYLINDER ASS'Y,L.H. | | 17001-17607 |
| 195-63-01451 | CYLINDER ASS'Y,R.H. | | 17608- |
| 195-63-01450 | CYLINDER ASS'Y,R.H. | | 17001-17607 |
| 1 | 195-63-44640 | CYLINDER | | 17001- |
| 2 | 707-76-10120 | BUSHING | | 17001- |
| 3 | 07145-00100 | SEAL,DUST (KIT) | | 17001- |
| 4 | 07020-00675 | FITTING,GREASE | | 17001- |
| 5 | 07042-10108 | PLUG | | 17001- |
| 6 | 707-27-22320 | HEAD,CYLINDER | | 17608- |
| 707-27-22290 | HEAD,CYLINDER | | 17001-17607 |
| 7 | 707-52-90850 | BUSHING | | 17608- |
| 07177-01135 | BUSHING | | 17001-17607 |
| 8 | 707-51-11030 | PACKING,ROD (KIT) | | 17608- |
| 707-51-11110 | PACKING,ROD (KIT) | | 17001-17607 |
| 8A | 707-51-11640 | RING,BUFFER (KIT) | | 17608- |
| 9 | 198-63-94170 | SEAL,DUST (KIT) | | 17608- |
| 07016-21109 | SEAL,DUST (KIT) | | 17001-17607 |
| 10 | 07179-13126 | RING,SNAP | | 17001- |
| 11 | 07000-15220 | O-RING (KIT) | | 17001- |
| 12 | 07001-05220 | RING,BACK-UP (KIT) | | 17001- |
| 13 | 01010-62795 | BOLT | | 17001- |
| 14 | 01011-62705 | BOLT | | 17001- |
| 15 | 01643-32780 | WASHER | | 17608- |
| 01602-02783 | WASHER,SPRING | | 17001-17607 |
| 16 | 195-63-44221 | ROD,PISTON | | 17001- |
| 17 | 707-76-10110 | BUSHING | | 17001- |
| 18 | 07145-00100 | SEAL,DUST (KIT) | | 17001- |
| 19 | 07020-00900 | FITTING,GREASE | | 17001- |
| 20 | 707-36-22050 | PISTON | | 17001- |
| 21 | 07000-B2085 | O-RING (KIT) | | 17608- |
| 07000-12085 | O-RING (KIT) | | 17001-17607 |
| 22 | 07001-02085 | RING,BACK-UP (KIT) | | 17001- |
| 23 | 707-44-22290 | RING,PISTON (KIT) | | 17608- |
| 707-44-22280 | RING,PISTON (KIT) | | 17001-17607 |
| 24 | 07155-02250 | RING,WEAR (KIT) | | 17001- |
| 25 | 707-40-22021 | SPACER | | 17001- |
| 26 | 01010-61455 | BOLT | | 17001- |
| 27 | 195-78-72450 | TUBE,L.H. | | 17001- |
| 195-78-72460 | TUBE,R.H. | | 17001- |
| 28 | 195-78-72430 | TUBE,L.H. | | 17001- |
| 195-78-72440 | TUBE,R.H. | | 17001- |
| 29 | 07000-13035 | O-RING (KIT) | | 17001- |
| 30 | 01010-81050 | BOLT | | 17001- |
| 31 | 01010-81060 | BOLT | | 17001- |
| 32 | 01643-51032 | WASHER | | 17608- |
| 01602-21030 | WASHER,SPRING | | 17001-17607 |
| 33 | 07283-23450 | CLIP | | 17001- |
| 34 | 01010-81025 | BOLT | | 17001- |
| 35 | 01643-31032 | WASHER | | 17001- |
| 36 | 195-78-72550 | BRACKET,L.H. | | 17001- |
| 195-78-72560 | BRACKET,R.H. | | 17001- |
| 37 | 01643-31032 | WASHER | | 17001- |
| 38 | 01599-01011 | NUT | | 17001- |
| 39 | 707-88-33040 | CAP | | .- |
| \0\07378-11000 | HEAD | | 17001-. |
| 40 | 07000-13032 | O-RING | | 17001- |
| 41 | 07371-31049 | FLANGE,SPLIT | | 17001- |
| 42 | 07372-21035 | BOLT | | 17001- |
| 43 | 01643-51032 | WASHER | | 17001- |
| | ==================== | | |
| 707-99-74440 | SERVICE KIT | | 17608- |
| 707-98-74400 | SERVICE KIT | | 17001-17607 |
