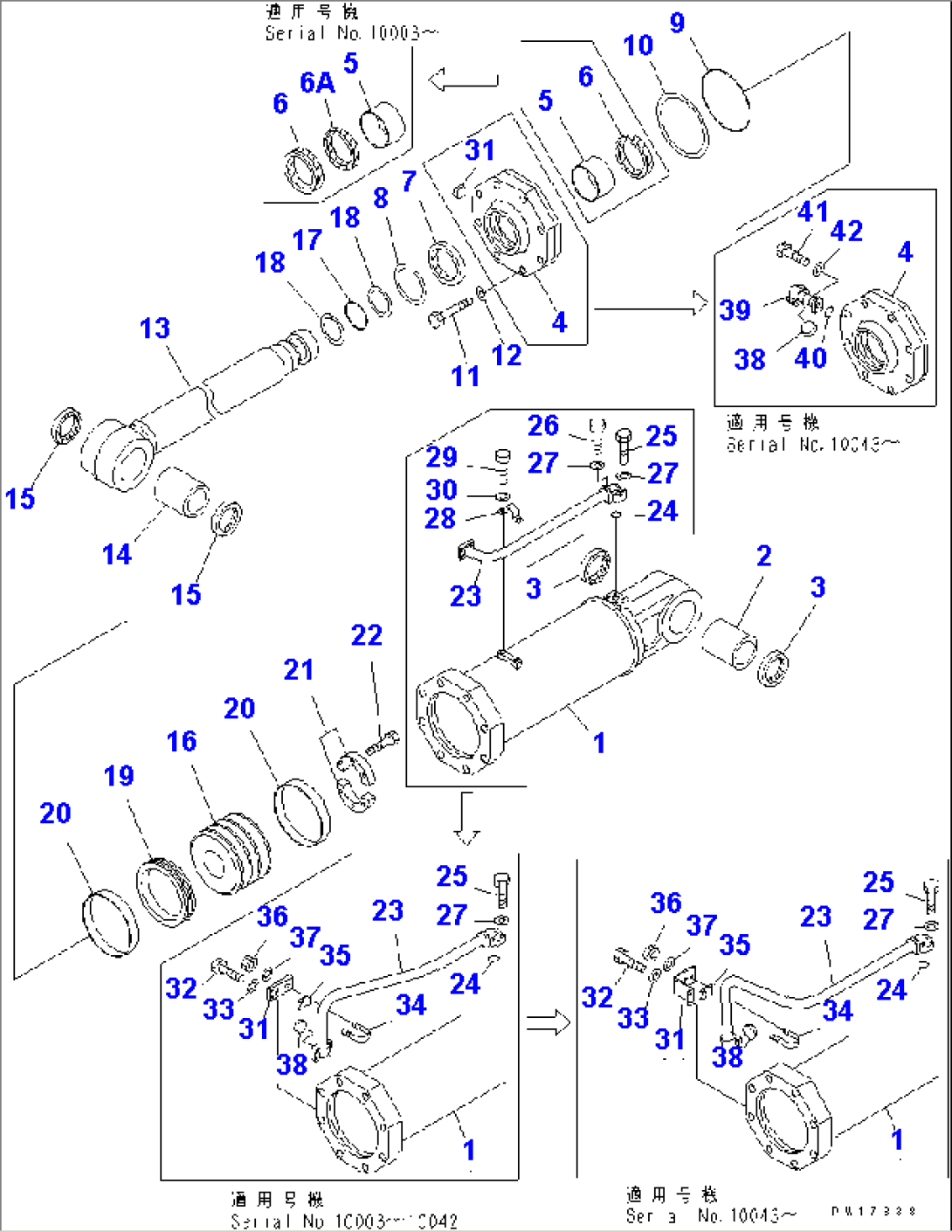

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\19M-63-X2047) | LIFT CYLINDER GROUP,RIPPER¤ L.H. | | 10043- |
| G-1 | (\8\19M-63-X2045) | LIFT CYLINDER GROUP,RIPPER¤ L.H. | | 10042-10042 |
| G-1 | (\8\19M-63-X2043) | LIFT CYLINDER GROUP,RIPPER¤ L.H. | | 10011-10041 |
| G-1 | (\8\19M-63-X2042) | LIFT CYLINDER GROUP,RIPPER¤ L.H. | | 10003-10010 |
| G-1 | (\8\19M-63-X2040) | LIFT CYLINDER GROUP,RIPPER¤ L.H. | | 10001-10002 |
| G-2 | (\8\19M-63-X2057) | LIFT CYLINDER GROUP,RIPPER¤ R.H. | | 10043- |
| G-2 | (\8\19M-63-X2055) | LIFT CYLINDER GROUP,RIPPER¤ R.H. | | 10042-10042 |
| G-2 | (\8\19M-63-X2053) | LIFT CYLINDER GROUP,RIPPER¤ R.H. | | 10011-10041 |
| G-2 | (\8\19M-63-X2052) | LIFT CYLINDER GROUP,RIPPER¤ R.H. | | 10003-10010 |
| G-2 | (\8\19M-63-X2050) | LIFT CYLINDER GROUP,RIPPER¤ R.H. | | 10001-10002 |
| | ==================== | | |
| 19M-63-02047 | CYLINDER ASS'Y,L.H. | | 10043- |
| \0\19M-63-02045 | CYLINDER ASS'Y,L.H. | | 10042-10042 |
| \0\19M-63-02043 | CYLINDER ASS'Y,L.H. | | 10011-10041 |
| \0\19M-63-02042 | CYLINDER ASS'Y,L.H. | | 10003-10010 |
| 19M-63-02040 | CYLINDER ASS'Y,L.H. | | 10001-10002 |
| 19M-63-02057 | CYLINDER ASS'Y,R.H. | | 10043- |
| \0\19M-63-02055 | CYLINDER ASS'Y,R.H. | | 10042-10042 |
| \0\19M-63-02053 | CYLINDER ASS'Y,R.H. | | 10011-10041 |
| \0\19M-63-02052 | CYLINDER ASS'Y,R.H. | | 10003-10010 |
| 19M-63-02050 | CYLINDER ASS'Y,R.H. | | 10001-10002 |
| 1 | 19M-63-42342 | CYLINDER | | 10003- |
| 19M-63-42340 | CYLINDER | | 10001-10002 |
| 2 | 707-76-12510 | BUSHING | | 10011- |
| \0\707-76-12500 | BUSHING | | 10001-10010 |
| 3 | 07145-00125 | SEAL (KIT) | | 10001- |
| 4 | 707-27-28180 | CYLINDER,HEAD | | 10043- |
| 707-27-28051 | CYLINDER,HEAD | | 10003-10042 |
| 707-27-28050 | CYLINDER,HEAD | | 10001-10002 |
| 5 | 707-52-91150 | BUSHING | | 10003- |
| 707-52-11410 | BUSHING | | 10001-10002 |
| 6 | 707-51-14030 | PACKING,ROD (KIT) | | 10003- |
| 707-51-14110 | PACKING,ROD (KIT) | | 10001-10002 |
| 6A | 707-51-14810 | RING,BUFFER (KIT) | | 10043- |
| 707-51-14640 | RING,BUFFER (KIT) | | 10042-10042 |
| \0\707-51-14630 | RING,BUFFER (KIT) | | 10003-10041 |
| 7 | 198-63-93170 | SEAL,DUST (KIT) | | 10001- |
| 8 | 07179-14160 | RING,SNAP | | 10001- |
| 9 | 07000-15275 | O-RING (KIT) | | 10001- |
| 10 | 178-63-22460 | RING,BACK-UP (KIT) | | 10001- |
| 11 | 01011-83620 | BOLT | | 10001- |
| 12 | 01643-33690 | WASHER | | 10001- |
| 13 | 19M-63-42321 | ROD,PISTON | | 10043- |
| 19M-63-42320 | ROD,PISTON | | 10001-10042 |
| 14 | 707-76-12510 | BUSHING | | 10011- |
| \0\707-76-12500 | BUSHING | | 10001-10010 |
| 15 | 07145-00125 | SEAL,DUST (KIT) | | 10001- |
| 16 | 707-36-28060 | PISTON | | 10043- |
| 707-36-28040 | PISTON | | 10001-10042 |
| 17 | 07000-B5115 | O-RING (KIT) | | 10043- |
| 07000-B2120 | O-RING (KIT) | | 10042-10042 |
| 07000-12120 | O-RING (KIT) | | 10001-10041 |
| 18 | 707-35-91270 | RING,BACK-UP (KIT) | | 10043- |
| 707-35-52960 | RING,BACK-UP (KIT) | | 10001-10042 |
| 19 | 707-44-28010 | RING,PISTON (KIT) | | 10043- |
| 707-44-28190 | RING,PISTON (KIT) | | 10042-10042 |
| 707-44-28180 | RING,PISTON (KIT) | | 10001-10041 |
| 20 | 707-39-28810 | RING,WEAR (KIT) | | 10042- |
| 707-39-28820 | RING,WEAR (KIT) | | 10001-10041 |
| 21 | 707-40-28030 | SPACER | | .- |
| \0\707-40-28040 | SPACER | | 10043-. |
| \0\707-40-28030 | SPACER | | 10001-10042 |
| 22 | 01010-61460 | BOLT | | 10001- |
| 23 | 707-86-11410 | TUBE,L.H. | | 10043- |
| 19M-78-12131 | TUBE,L.H. | | 10003-10042 |
| 19M-63-42370 | TUBE,L.H. | | 10001-10002 |
| 707-86-11430 | TUBE,R.H. | | 10043- |
| 19M-78-12121 | TUBE,R.H. | | 10003-10042 |
| 19M-63-42380 | TUBE,R.H. | | 10001-10002 |
| 24 | 07000-13035 | O-RING (KIT) | | 10001- |
| 25 | 01010-81060 | BOLT | | 10003- |
| 01010-81050 | BOLT | | 10001-10002 |
| 26 | 01010-81055 | BOLT | | 10001-10002 |
| 27 | 01643-31032 | WASHER | | 10001- |
| 28 | 07282-13411 | CLAMP | | 10001-10002 |
| 29 | 01010-81020 | BOLT | | 10001-10002 |
| 30 | 01643-31032 | WASHER | | 10001-10002 |
| 31 | 707-88-02010 | PLATE | | 10043- |
| 19M-78-12150 | PLATE | | 10003-10042 |
| 32 | 01010-81225 | BOLT | | 10003- |
| 33 | 01643-31232 | WASHER | | 10003- |
| 34 | 07283-33450 | CLIP | | 10043- |
| 07283-23450 | CLIP | | 10003-10042 |
| 35 | 07283-53444 | SEAT | | 10003- |
| 36 | 01597-01009 | NUT | | 10043- |
| 01599-01011 | NUT | | 10003-10042 |
| 37 | 01643-31032 | WASHER | | 10003- |
| 38 | 07378-11000 | HEAD,(FOR SHIPPING) | | 10001- |
| 39 | 707-86-11420 | TUBE,L.H. | | 10043- |
| 707-86-11440 | TUBE,R.H. | | 10043- |
| 40 | 07000-13035 | O-RING (KIT) | | 10043- |
| 41 | 01010-81035 | BOLT | | 10043- |
| 42 | 01643-31032 | WASHER | | 10043- |
| | ==================== | | |
| 707-98-84450 | SERVICE KIT | | 10043- |
| 707-98-84441 | SERVICE KIT | | 10042-10042 |
| 707-98-84420 | SERVICE KIT | | 10003-10041 |
| 707-98-84410 | SERVICE KIT | | 10001-10002 |
