| Item | Part No. | Part Name | Qty | Serial No. |

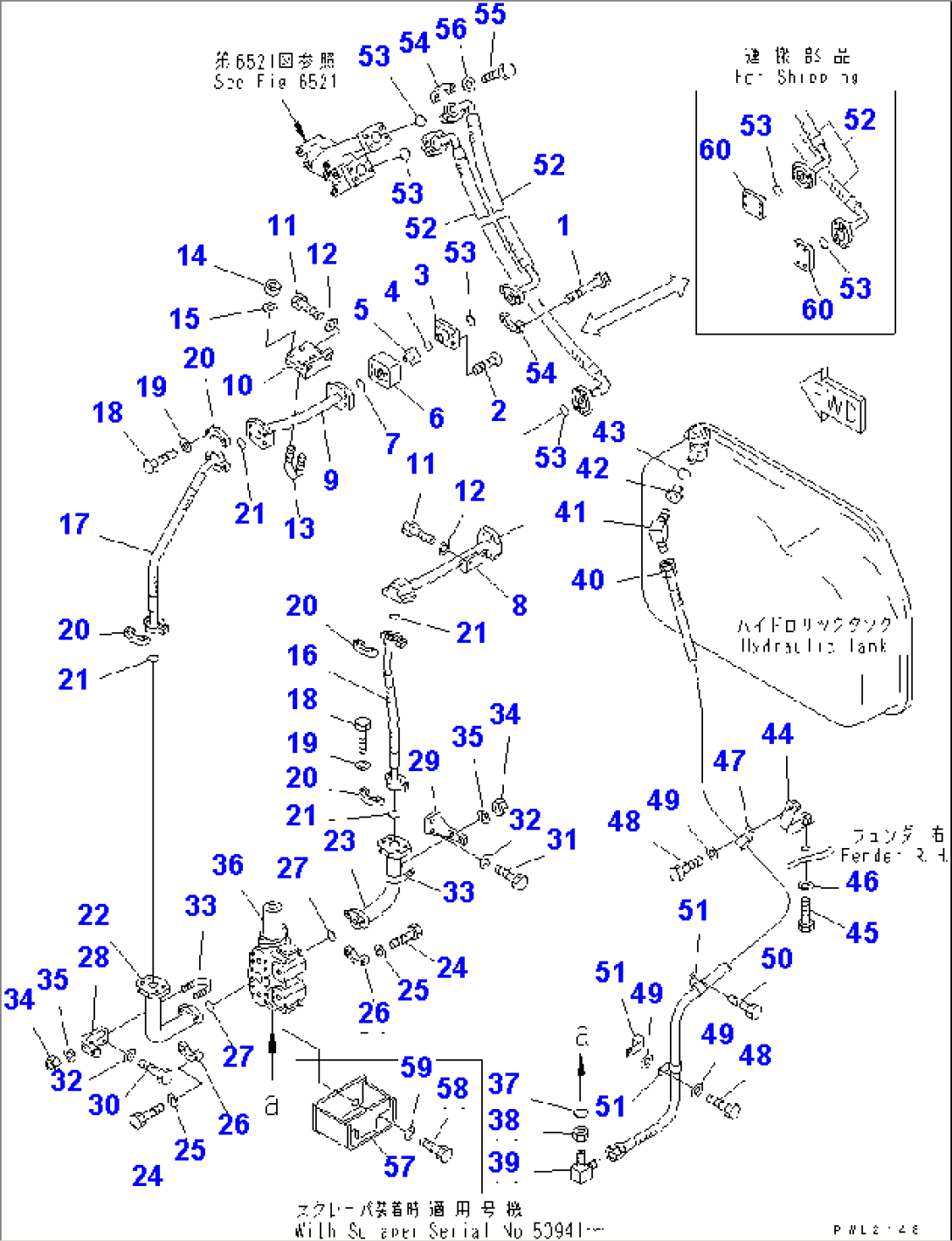

| G-1 | (\8\175-78-X1500) | PIPING GROUP | 50001- | |
| ==================== | ||||
| 1 | 01010-51295 | BOLT | 50001- | |
| 175-78-62101 | VALVE ASS'Y | 50001- | ||
| 2 | 01224-40620 | SCREW | 50001- | |
| 3 | 175-78-62140 | FLANGE | 50001- | |
| 4 | 07000-12055 | O-RING | 50001- | |
| 5 | 175-78-62151 | VALVE | 50001- | |
| 6 | 175-78-62260 | FLANGE | 50001- | |
| 7 | 07000-13048 | O-RING | 50001- | |
| 8 | 175-78-62163 | TUBE | 50001- | |
| 9 | 175-78-62173 | TUBE | 50001- | |
| 10 | 175-78-62126 | BRACKET | 50001- | |
| 11 | 01010-51235 | BOLT | 50001- | |
| 12 | 01643-31232 | WASHER | 50001- | |
| 13 | 07283-24354 | CLIP | 50001- | |
| 14 | 01599-01011 | NUT | 50001- | |
| 15 | 01643-31032 | WASHER | 50001- | |
| 16 | 07114-01406 | HOSE | 50001- | |
| 07115-A1406 | HOSE,(FOR SLAG HANDLING) | 50001- | ||
| 17 | 07114-01407 | HOSE | 50001- | |
| 07115-A1407 | HOSE,(FOR SLAG HANDLING) | 50001- | ||
| 18 | 07372-21240 | BOLT | 50001- | |
| 19 | 01643-51232 | WASHER | 50001- | |
| 20 | 07371-31465 | FLANGE,SPLIT | 50001- | |
| 21 | 07000-13048 | O-RING | 50001- | |
| 22 | 175-78-63110 | TUBE,L.H. | 50001- | |
| 23 | 175-78-63250 | TUBE,R.H. | 50001- | |
| 24 | 07372-21240 | BOLT | 50001- | |
| 25 | 01643-51232 | WASHER | 50001- | |
| 26 | 07371-31465 | FLANGE,SPLIT | 50001- | |
| 27 | 07000-13048 | O-RING | 50001- | |
| 28 | 175-78-63230 | BRACKET,L.H. | 50001- | |
| 29 | 175-78-63241 | BRACKET,R.H. | 50001- | |
| 30 | 01010-51235 | BOLT | 50001- | |
| 31 | 01010-51240 | BOLT | 50001- | |
| 32 | 01643-31232 | WASHER | 50001- | |
| 33 | 07283-24346 | CLIP | 50001- | |
| 34 | 01599-01011 | NUT | 50001- | |
| 35 | 01643-31032 | WASHER | 50001- | |
| 36 | (700-61-13006) | VALVE ASS'Y | 50001- | |
| 37 | 07002-01623 | O-RING | 50001- | |
| 38 | 01583-11610 | NUT | 50001- | |
| 39 | 175-78-32170 | ELBOW | 50001- | |
| 40 | 07113-00325 | HOSE | 50001- | |
| 07113-A0325 | HOSE,(FOR SLAG HANDLING) | 50001- | ||
| 41 | 07234-20315 | ELBOW | 50001- | |
| 42 | 07239-22009 | NUT | 50001- | |
| 43 | 07002-02034 | O-RING | 50001- | |
| 44 | 175-78-65120 | BRACKET | 50001- | |
| 45 | 01010-51030 | BOLT | 50001- | |
| 46 | 01643-31032 | WASHER | 50001- | |
| 47 | 195-79-12181 | CLIP | 50001- | |
| 195-79-48120 | CLIP,(FOR SLAG HANDLING) | 50001- | ||
| 48 | 01010-51025 | BOLT | 50001- | |
| 49 | 01643-31032 | WASHER | 50001- | |
| 50 | 01010-51235 | BOLT | 50001- | |
| 51 | 195-78-22471 | CLIP | 50001- | |
| 195-78-48130 | CLIP,(FOR SLAG HANDLING) | 50001- | ||
| ==================== | ||||
| G-2 | (\8\175-78-X1830) | PIPING GROUP | 50001- | |
| ==================== | ||||
| 52 | 175-78-62480 | HOSE | 50001- | |
| 53 | 07000-13048 | O-RING | 50001- | |
| 54 | 07371-31465 | FLANGE,SPLIT | 50001- | |
| 55 | 07372-21240 | BOLT | 50001- | |
| 56 | 01643-51232 | WASHER | 50001- | |
| ==================== | ||||
| 57 | 175-54-47330 | GUARD | 50941- | |
| 58 | 01010-52045 | BOLT | 50941- | |
| 59 | 01643-32060 | WASHER | 50941- | |
| 60 | 07379-01460 | FLANGE,(FOR SHIPPING) | 50001- |
