| Item | Part No. | Part Name | Qty | Serial No. |

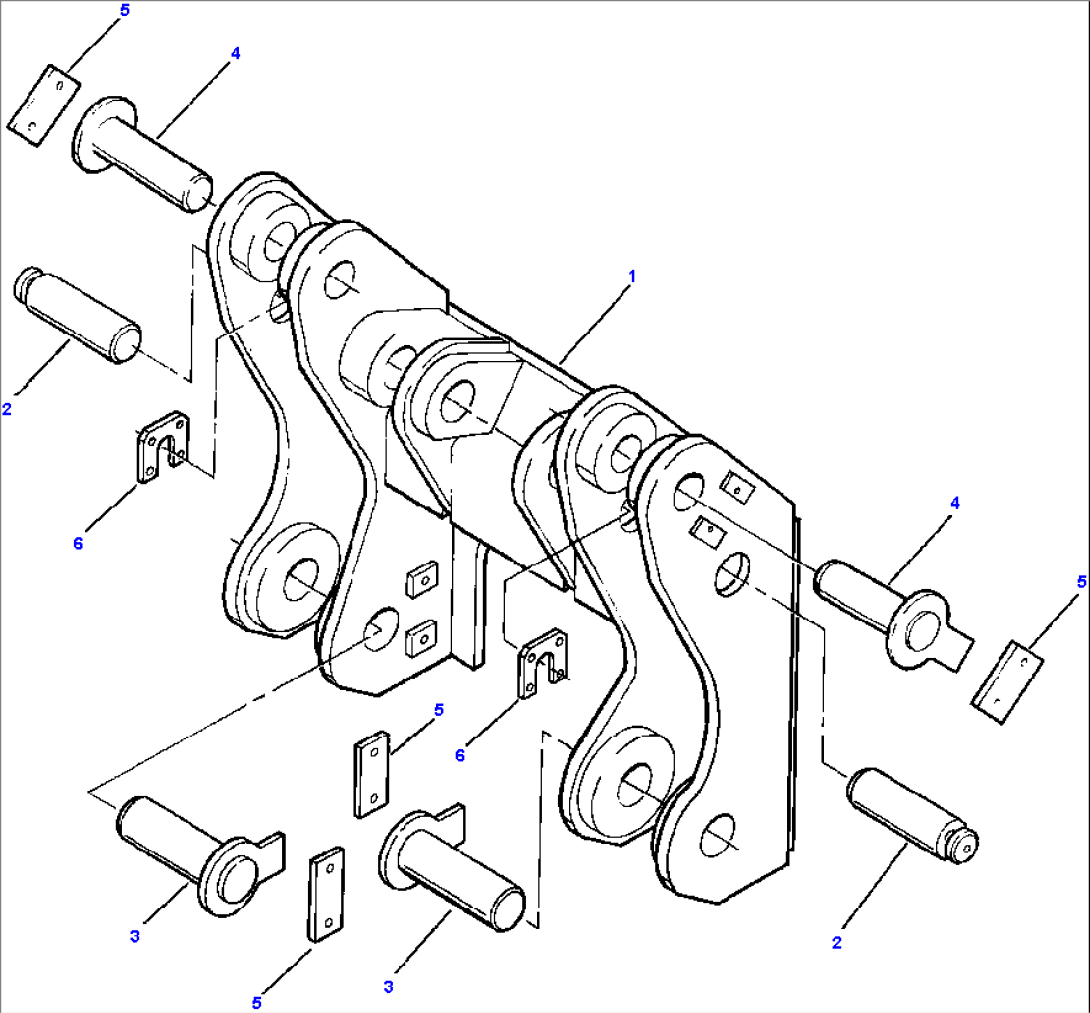

| (730 453 C93) | FRAME ASSEMBLY, RIPPER MOUNTING | |||
| 1 | 730 454 C2 | FRAME, MOUNTING | ||
| 2 | 730 032 C2 | PIN, LIFT CYLINDER | ||
| 3 | 730 463 C2 | PIN, DRAFT FRAME | ||
| 4 | 730 038 C1 | PIN, PITCH CYLINDER OR FIXED UPPER LINK | ||
| 5 | 730 024 C1 | PLATE, RETAINER | ||
| 30 087 R1 | BOLT, MOUNTING - M20x40 | |||
| 30 179 R1 | WASHER, FLAT - M20 | |||
| 6 | 730 188 C2 | PLATE, RETAINER | ||
| 30 065 R1 | BOLT, MOUNTING - M16x35 | |||
| 30 178 R1 | WASHER, FLAT - M16 | |||
| F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. | ||||
