| Item | Part No. | Part Name | Qty | Serial No. |

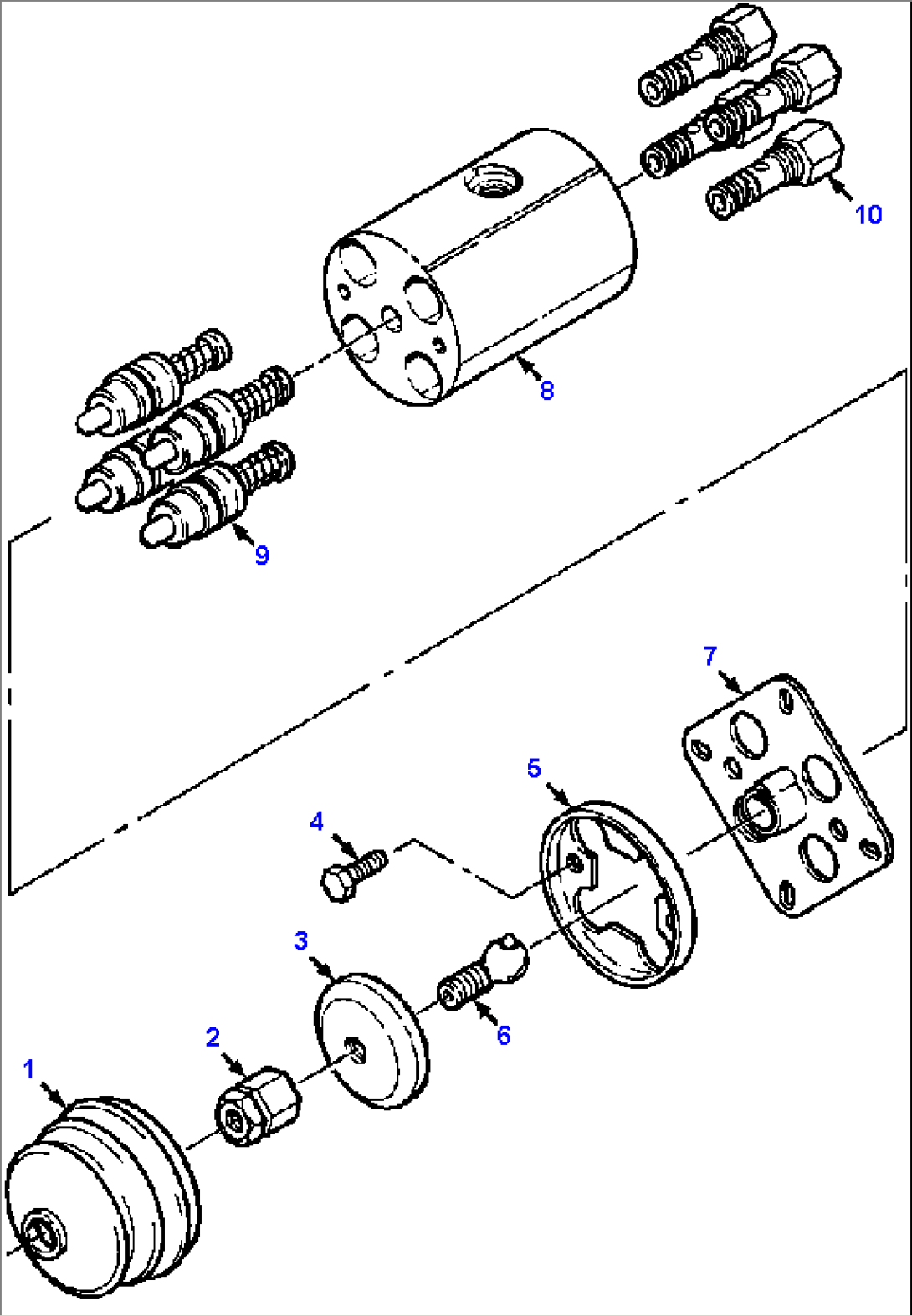

| (1297 688 H91) | VALVE ASSY, RIPPER PILOT | |||
| 1 | 1234 007 H1 | BOOT, VALVE | ||
| 2 | 1234 014 H1 | NUT, CONTROL | ||
| 3 | 1234 013 H1 | PLATE, PIVOT | ||
| 4 | 24 839 R1 | BOLT, MOUNTING - 3/8NCx3/4 | ||
| 5 | 1234 008 H1 | CLAMP, BOOT | ||
| 6 | 1234 010 H1 | BOLT, PIVOT | ||
| 7 | 1234 006 H1 | PLATE, MOUNTING | ||
| 8 | (NSS) | HOUSING, VALVE | ||
| 9 | CAPSULE, PLUNGER (SEE PG 10-064) | |||
| 10 | CAPSULE, PLUNGER FEEL (SEE PG 10-066) | |||
| F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. | ||||
