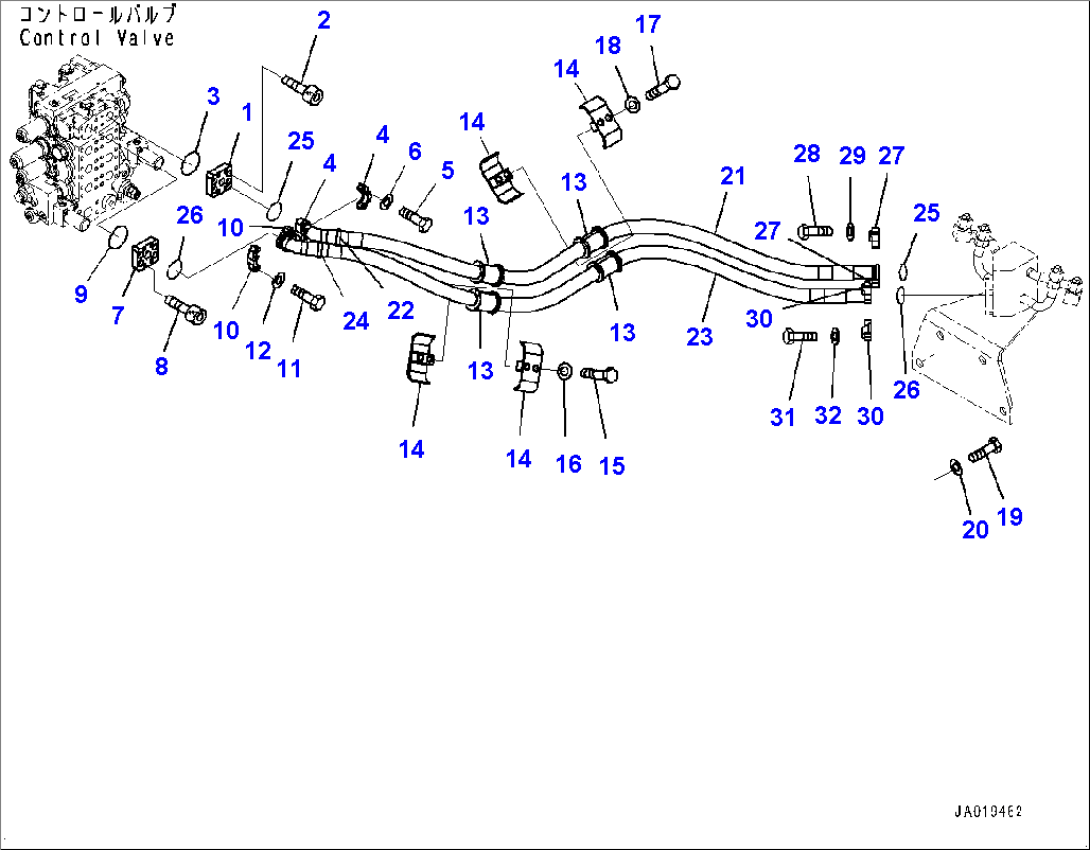

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-78-85251 | Plate | 22001-23027 | |
| 2 | 01252-91025 | Bolt, Hexagon Socket Head | 22001-23027 | |
| 3 | 07000-13034 | O-ring | 22001-23027 | |
| 4 | 07371-31049 | Flange, Split | 22001-23027 | |
| 5 | 07372-21035 | Bolt | 22001-23027 | |
| 6 | 01643-51032 | Washer | 22001-23027 | |
| 7 | 154-78-85251 | Plate | 22001-23027 | |
| 8 | 01252-91025 | Bolt, Hexagon Socket Head | 22001-23027 | |
| 9 | 07000-13034 | O-ring | 22001-23027 | |
| 10 | 07371-31049 | Flange, Split | 22001-23027 | |
| 11 | 07372-21035 | Bolt | 22001-23027 | |
| 12 | 01643-51032 | Washer | 22001-23027 | |
| 13 | 07095-01035 | Cushion | 22001-23027 | |
| 14 | 22P-62-13560 | Clamp | 22001-23027 | |
| 15 | 01010-81280 | Bolt | 22001-23027 | |
| 16 | 01643-31232 | Washer | 22001-23027 | |
| 17 | 01010-81290 | Bolt | 22001-23027 | |
| 18 | 01643-31232 | Washer | 22001-23027 | |
| 19 | 01010-82040 | Bolt | 22001-23027 | |
| 20 | 01643-32060 | Washer | 22001-23027 | |
| 21 | 154-78-85441 | Hose | 22001-23027 | |
| 22 | 21U-62-34780 | Band, Brown | 22001-23027 | |
| 23 | 154-78-85391 | Hose | 22001-23027 | |
| 24 | 21U-62-34760 | Band, Red | 22001-23027 | |
| 25 | 07000-13032 | O-ring | 22001-23027 | |
| 26 | 07000-13032 | O-ring | 22001-23027 | |
| 27 | 07371-31049 | Flange, Split | 22001-23027 | |
| 28 | 07372-21035 | Bolt | 22001-23027 | |
| 29 | 01643-51032 | Washer | 22001-23027 | |
| 30 | 07371-31049 | Flange, Split | 22001-23027 | |
| 31 | 07372-21035 | Bolt | 22001-23027 | |
| 32 | 01643-51032 | Washer | 22001-23027 |
