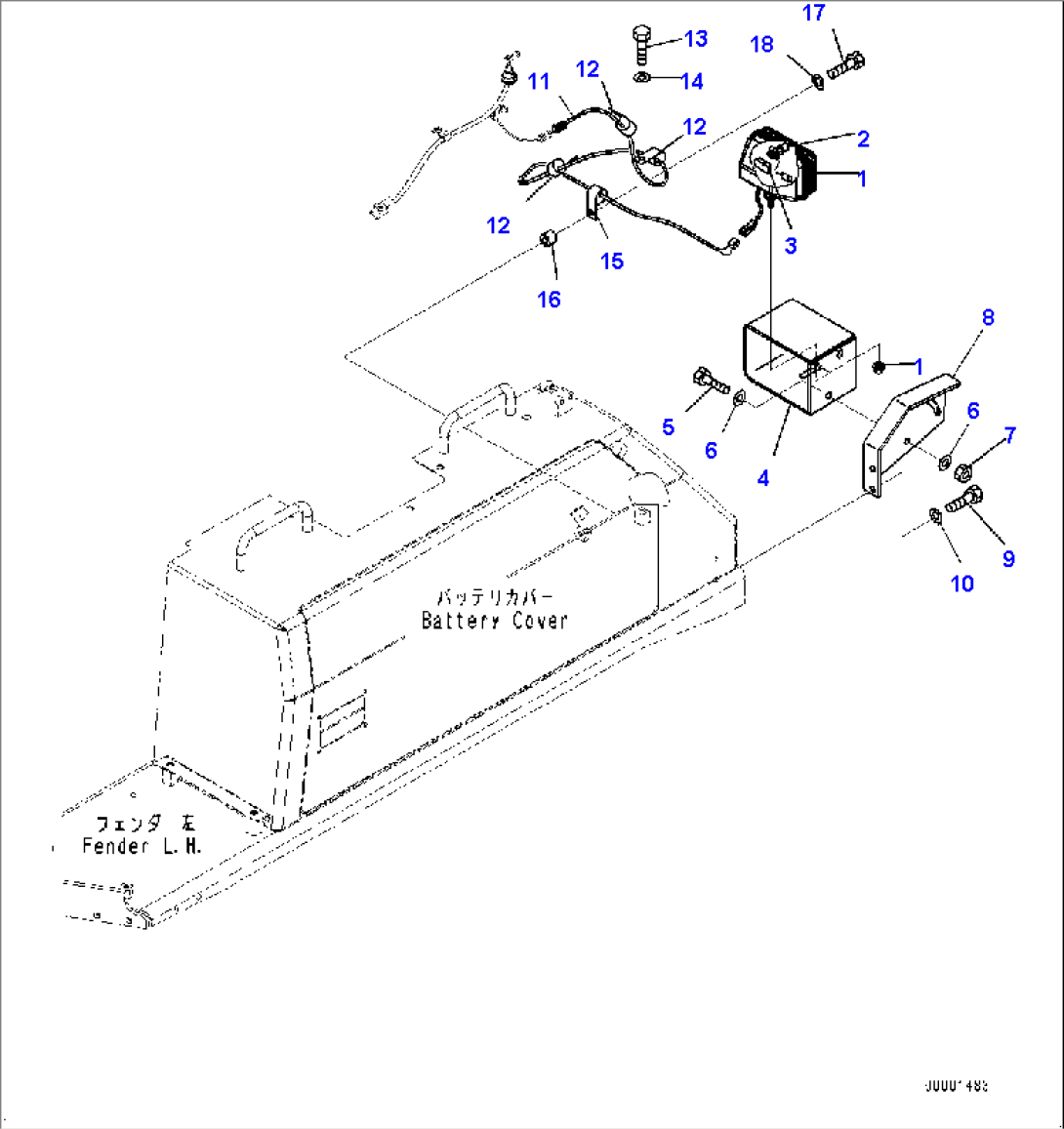

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-06-17931 | Working Lamp Assembly | 11609- | |
| 2 | 17A-06-17970 | Bulb, 70watt | 11609- | |
| 3 | 17A-06-17980 | Sleeve | 11609- | |
| 4 | 154-06-71620 | Cover | 11609- | |
| 5 | 01010-81240 | Bolt | 11609- | |
| 6 | 01643-31232 | Washer | 11609- | |
| 7 | 01580-01210 | Nut | 11609- | |
| 8 | 154-06-71611 | Bracket | 11609- | |
| 9 | 01010-81230 | Bolt | 11609- | |
| 10 | 01643-31232 | Washer | 11609- | |
| 11 | 154-06-71380 | Wiring Harness | 11609- | |
| 12 | 04434-51012 | Clip | 11609- | |
| 13 | 01010-81230 | Bolt | 11609- | |
| 14 | 01643-31232 | Washer | 11609- | |
| 15 | 04434-51012 | Clip | 11609- | |
| 16 | 195-33-11220 | Spacer | 11609- | |
| 17 | 01010-81240 | Bolt | 11609- | |
| 18 | 01643-31232 | Washer | 11609- |
