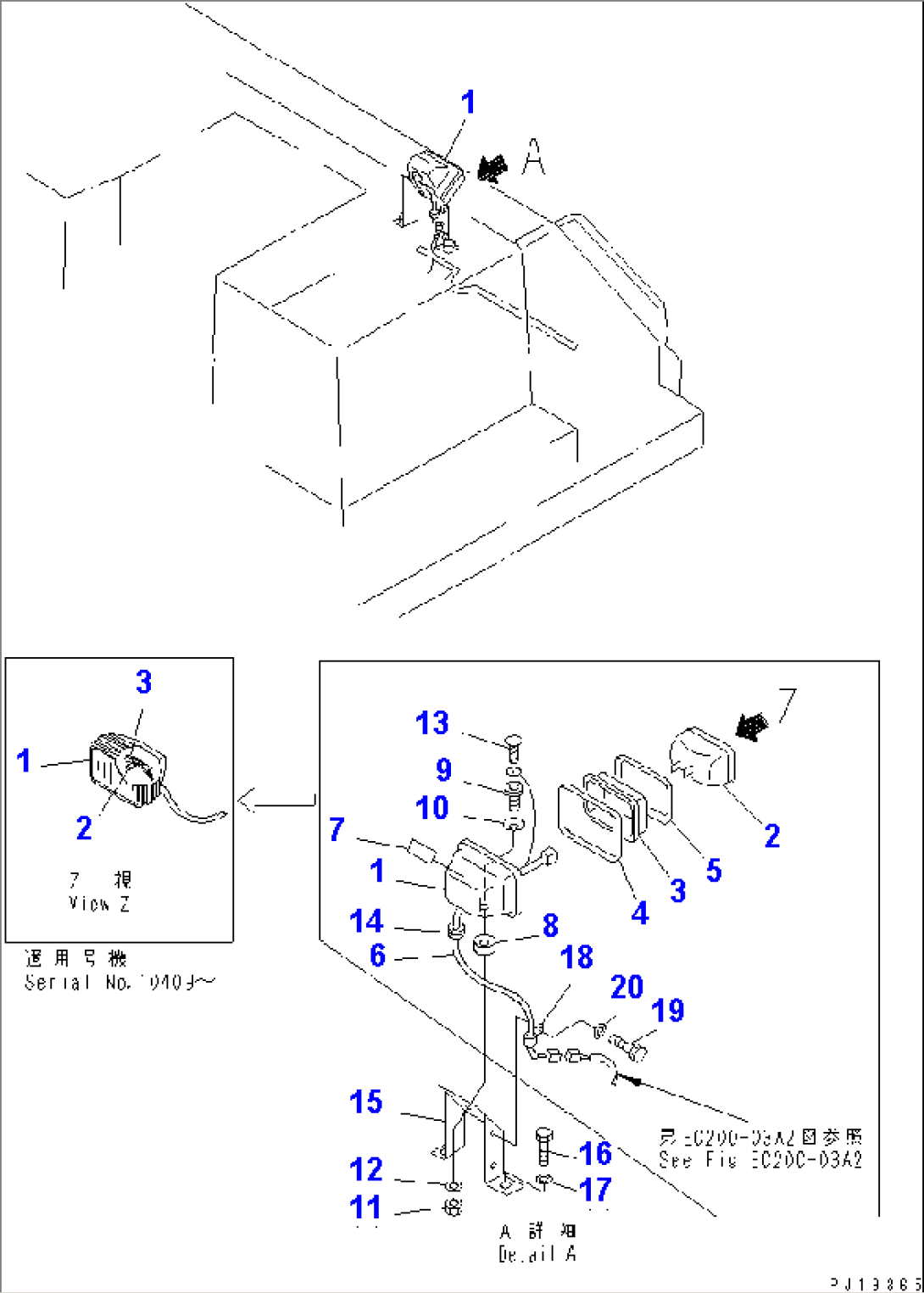

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-06-17920 | WORK LAMP ASS'Y | 10409- | |
| 1 | 195-06-44121 | LAMP ASS'Y | 10001-10408 | |
| 2 | 17A-06-17970 | BULB, 70W,70W | 10409- | |
| 2 | 22W-06-12170 | BULB | 10001-10408 | |
| 3 | 17A-06-17980 | SLEEVE | 10409- | |
| 3 | 22W-06-12290 | CUSHION | 10001-10408 | |
| 4 | 203-06-56190 | RING | 10001-10408 | |
| 5 | 203-06-56180 | RING | 10001-10408 | |
| 6 | 195-06-44131 | WIRE ASS'Y | 10001-10408 | |
| 7 | 195-06-44141 | PLATE | 10001-10408 | |
| 8 | 22W-06-12160 | SEAT | 10001-10408 | |
| 9 | 22W-06-12140 | BOLT | 10001-10408 | |
| 10 | 22W-06-12150 | WASHER | 10001-10408 | |
| 11 | 01582-11411 | NUT | 10001-10408 | |
| 12 | 01643-31445 | WASHER | 10001-10408 | |
| 13 | 04418-03060 | SCREW | 10001-10408 | |
| 14 | 09415-01008 | CAP | 10001-10408 | |
| 15 | 17M-06-21320 | BRACKET | 10001- | |
| 16 | 01010-51235 | BOLT | 10001- | |
| 17 | 01643-31232 | WASHER | 10001- | |
| 18 | 21T-38-12270 | CLIP | 10001- | |
| 19 | 01010-51225 | BOLT | 10001- | |
| 20 | 01643-31232 | WASHER | 10001- |
