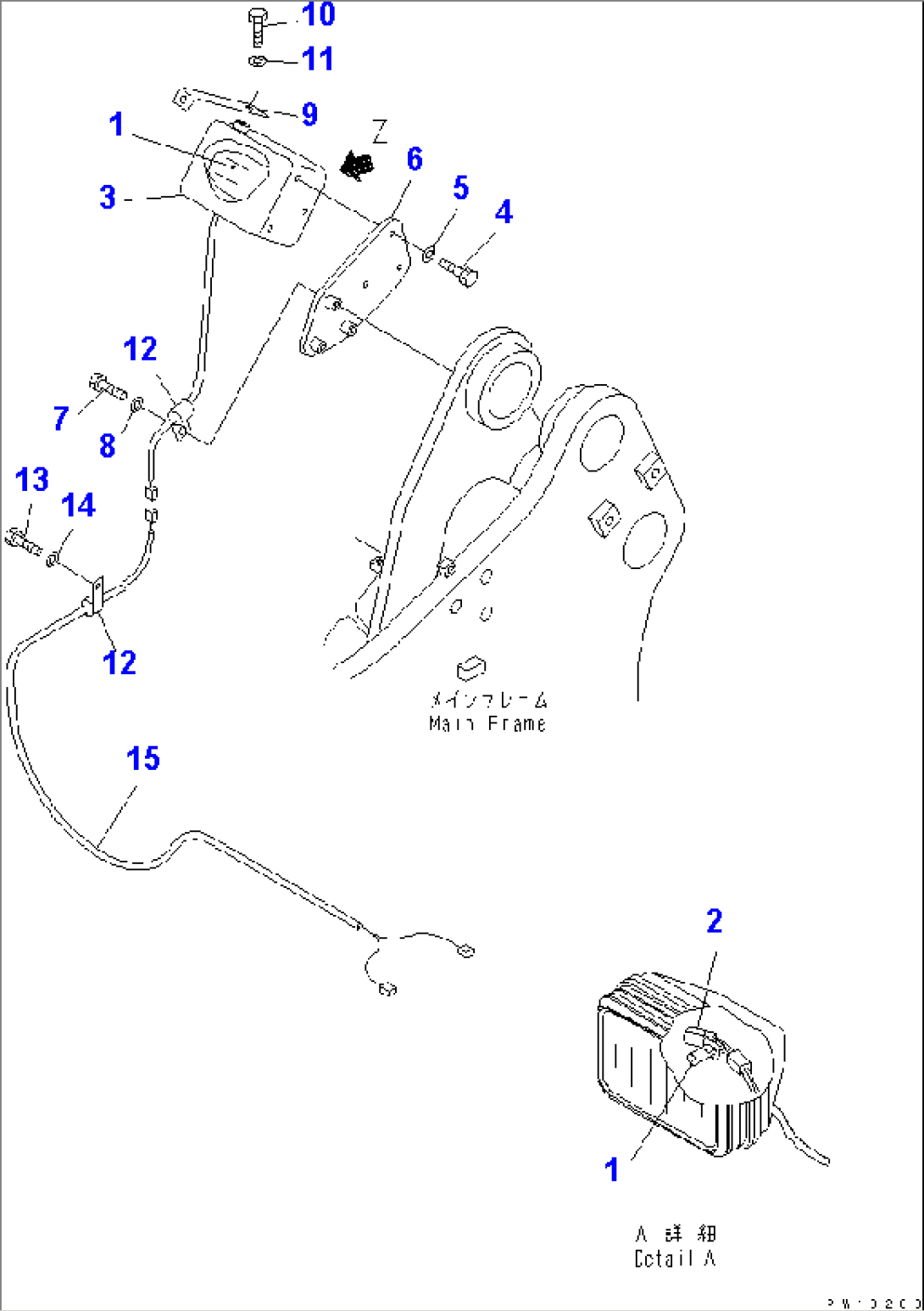

| Item | Part No. | Part Name | Qty | Serial No. |
| 17A-06-17930 | LAMP ASS'Y | 18001- | ||
| 1 | 17A-06-17970 | BULB¤ 70W | 18001- | |
| 2 | 17A-06-17980 | SLEEVE | 18001- | |
| 3 | 195-06-41910 | COVER | 18001- | |
| 4 | 01010-81235 | BOLT | 18001- | |
| 5 | 01643-31232 | WASHER | 18001- | |
| 6 | 195-06-44510 | BRACKET | 18001- | |
| 7 | 01010-81250 | BOLT | 18001- | |
| 8 | 01643-31232 | WASHER | 18001- | |
| 9 | 195-06-41930 | BRACKET | 18001- | |
| 10 | 01010-81225 | BOLT | 18001- | |
| 11 | 01643-31232 | WASHER | 18001- | |
| 12 | 04434-51012 | CLIP | 18001- | |
| 13 | 01010-81220 | BOLT | 18001- | |
| 14 | 01643-31232 | WASHER | 18001- | |
| 15 | 195-06-72490 | WIRING HARNESS | 18001- |
