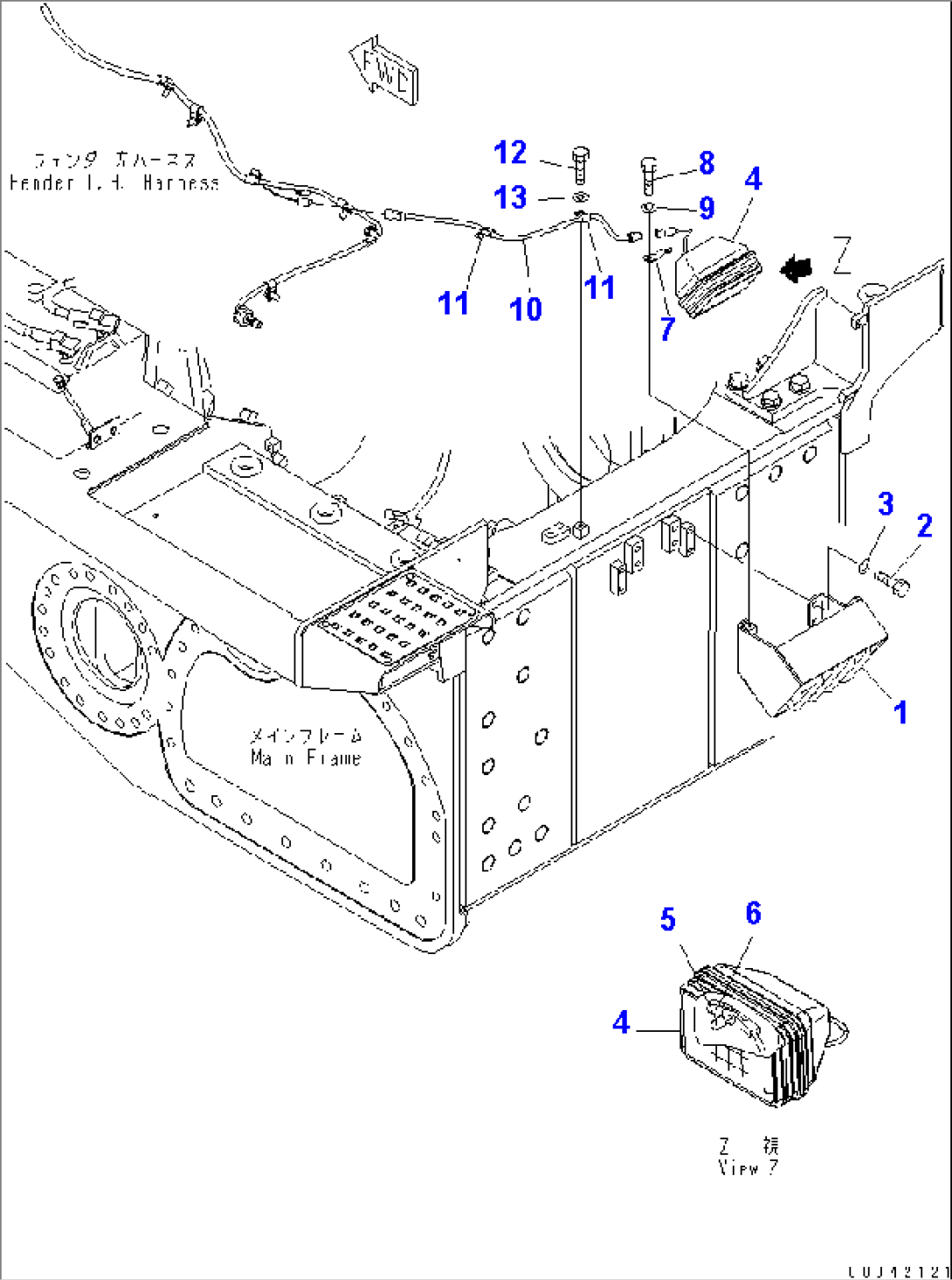

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-06-41791 | COVER | 80001- | |
| 2 | 01010-81230 | BOLT | 80001- | |
| 3 | 01643-31232 | WASHER | 80001- | |
| 4 | 17A-06-17931 | LAMP ASS'Y | 80150- | |
| 4 | \0\17A-06-17930 | LAMP ASS'Y | 80001-80149 | |
| 5 | 17A-06-17970 | BULB, 70W | 80001- | |
| 6 | 17A-06-17980 | SLEEVE | 80001- | |
| 7 | 08193-21012 | CLIP | 80001- | |
| 8 | 01010-81225 | BOLT | 80001- | |
| 9 | 01643-31232 | WASHER | 80001- | |
| 10 | 17A-06-41261 | WIRING HARNESS | 80001- | |
| 11 | 04434-51012 | CLIP | 80001- | |
| 12 | 01010-81225 | BOLT | 80001- | |
| 13 | 01643-31232 | WASHER | 80001- |
