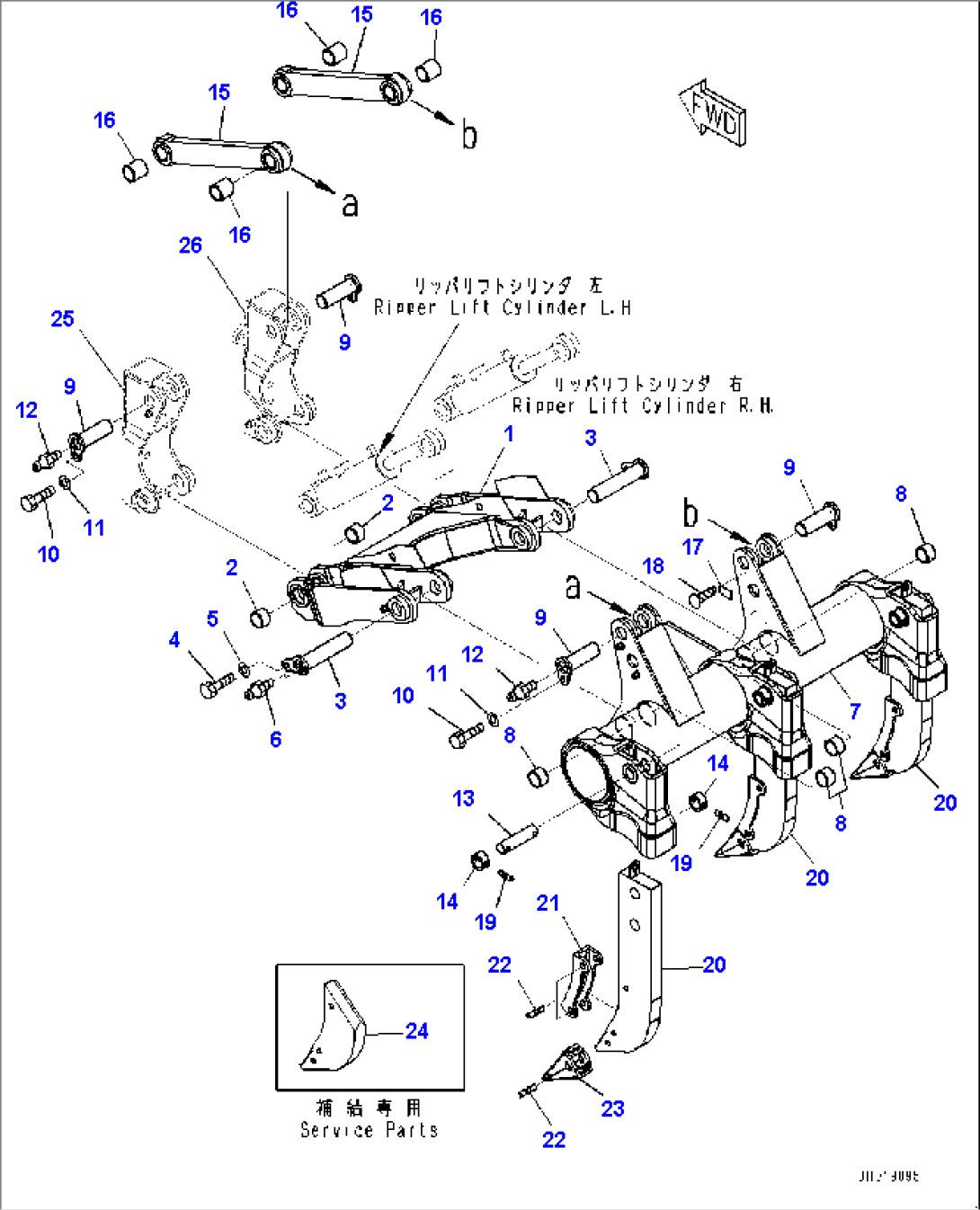

Item | Part No. | Part Name | Qty | Serial No. |
1 | 154-78-74122 | Arm | 22083- | |
2 | 154-78-14224 | Bushing | 22083- | |
3 | 154-78-74191 | Pin | 22083- | |
4 | 01010-81625 | Bolt | 22083- | |
5 | 01643-31845 | Washer | 22083- | |
6 | 07020-00000 | Fitting, Grease | 22083- | |
7 | 154-78-74111 | Beam | 22083- | |
8 | 154-78-14224 | Bushing | 22083- | |
9 | 154-78-74181 | Pin | 22083- | |
10 | 01010-81625 | Bolt | 22083- | |
11 | 01643-31845 | Washer | 22083- | |
12 | 07020-00000 | Fitting, Grease | 22083- | |
13 | 154-78-32430 | Pin | 22083- | |
14 | 154-78-32440 | Collar | 22083- | |
15 | 154-78-74131 | Link | 22083- | |
16 | 145-70-42220 | Bushing | 22083- | |
17 | (09601-50000) | Plate, Name (Limited Supply) | 22083- | |
18 | 04418-13060 | Screw | 22083- | |
19 | 09244-02489 | Pin | 22083- | |
20 | 154-78-14349 | Shank | 22083- | |
21 | 154-78-31330 | Protector | 22083- | |
22 | 09244-02508 | Pin | 22083- | |
23 | 175-78-31230 | Point | 22083- | |
24 | 154-78-15691 | Shank | 22083- | |
25 | (154-78-74151) | Bracket | - | |
(154-78-74151) | Bracket | - | ||
26 | (154-78-74161) | Bracket | - | |
(154-78-74161) | Bracket | - |
