| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (NS) | SHANK ASSEMBLY, RIPPER | ||
| 2 | 668 984 C1 | PIN, FLEX | ||
| 3 | 734 869 C1 | POINT, SHANK | ||
| 4 | 734 872 C1 | SHANK, RIPPER | ||
| 5 | 710 369 C1 | PIN, SHANK MOUNTING | ||
| 6 | 710 368 C1 | TUBE, LOCKING | ||
| 25 510 R1 | BOLT | |||
| 9412 231 | NUT, LOCK |
- Главная
- Каталог запчастей
- Бульдозеры
- Td 20g s/n u035001 up/p051001 up
- Mounted equipment
- Ripper shank for machines with standard gauge tracks
Поиск по каталогу

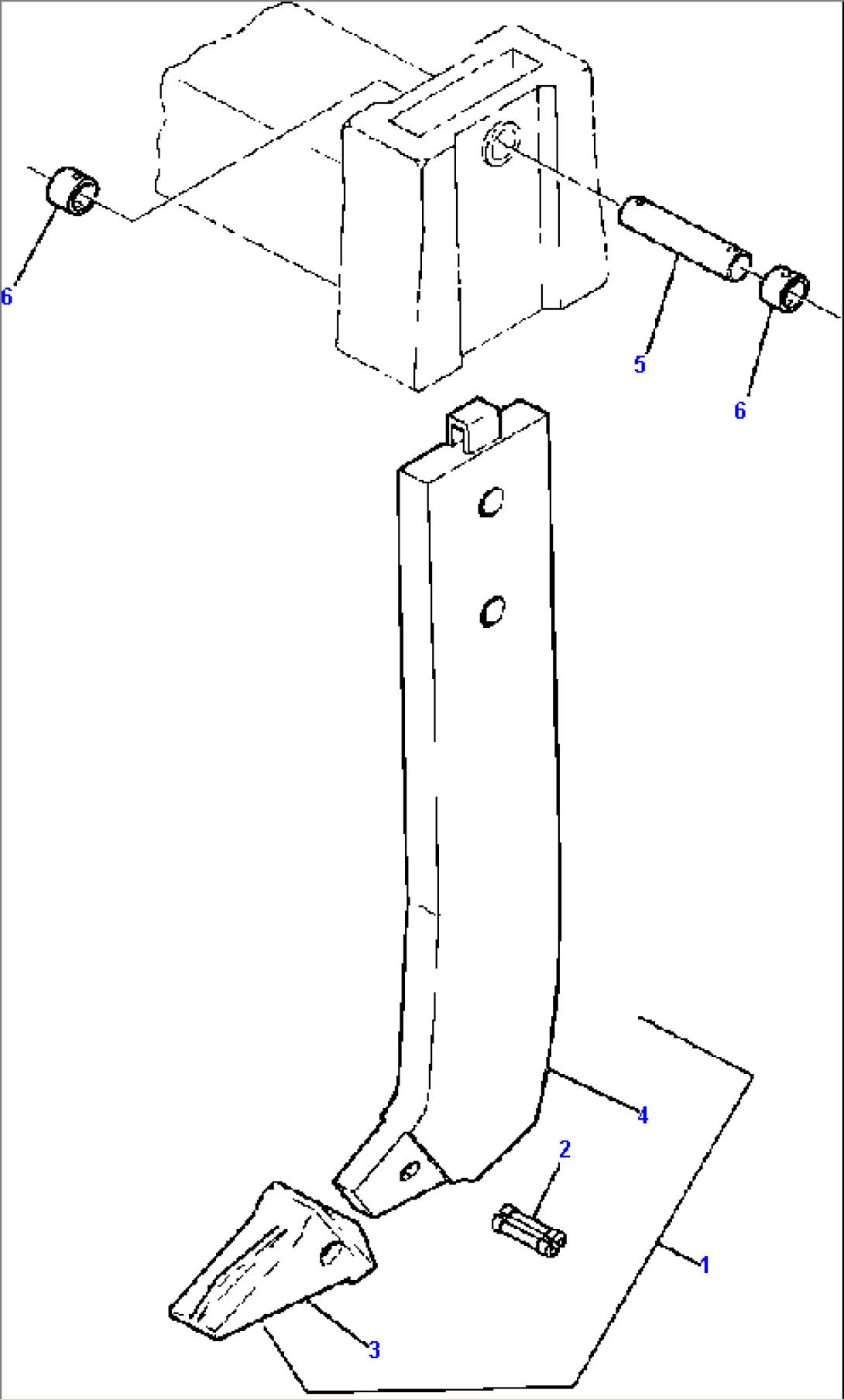

RIPPER SHANK FOR MACHINES WITH STANDARD GAUGE TRACKS
