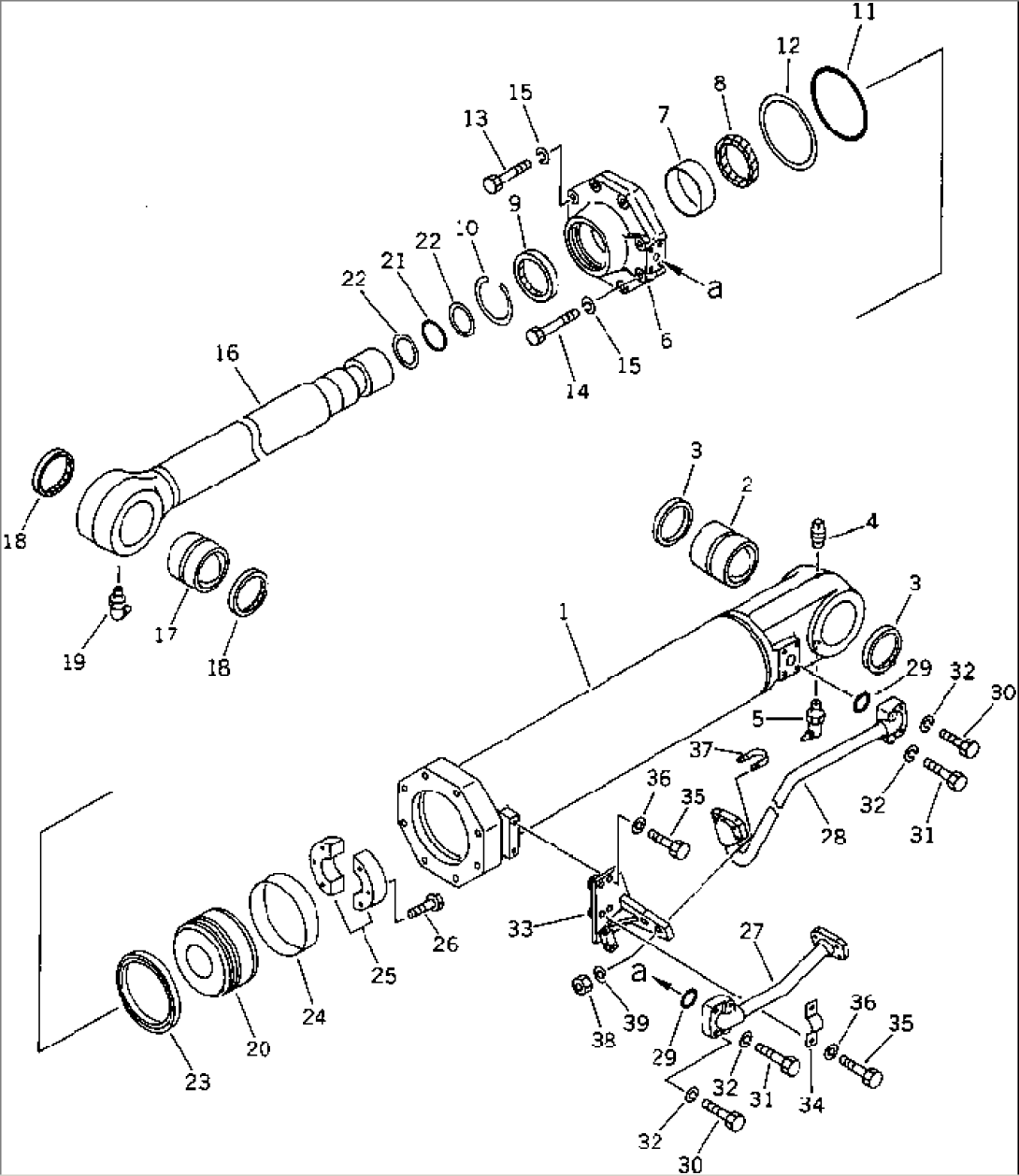

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\195-63-45501) | CYLINDER ASS'Y,RIPPER TILT¤ L.H. | 16001- | |
| G-1 | (\8\195-63-45601) | CYLINDER ASS'Y,RIPPER TILT¤ R.H. | 16001- | |
| ==================== | ||||
| 195-63-01501 | CYLINDER ASS'Y,L.H. | 16001- | ||
| 195-63-01601 | CYLINDER ASS'Y,R.H. | 16001- | ||
| 1 | 195-63-45241 | CYLINDER | 16001- | |
| 2 | 707-76-10120 | BUSHING | 16001- | |
| 3 | 07145-00100 | SEAL,DUST (KIT) | 16001- | |
| 4 | 07042-10108 | PLUG | 16001- | |
| 5 | 07020-00675 | FITTING,GREASE | 16001- | |
| 6 | 707-27-20390 | HEAD,CYLINDER | 16001- | |
| 7 | 07177-01135 | BUSHING | 16001- | |
| 8 | 707-51-11110 | PACKING,ROD (KIT) | 16001- | |
| 9 | 07016-21109 | SEAL,DUST (KIT) | 16001- | |
| 10 | 07179-13126 | RING,SNAP | 16001- | |
| 11 | 07000-15190 | O-RING (KIT) | 16001- | |
| 12 | 07146-05192 | RING,BACK-UP (KIT) | 16001- | |
| 13 | 01010-62080 | BOLT | 16001- | |
| 14 | 01010-62095 | BOLT | 16001- | |
| 15 | 01602-02060 | WASHER,SPRING | 16001- | |
| 16 | 195-63-45221 | ROD,PISTON | 16001- | |
| 17 | 707-76-10110 | BUSHING | 16001- | |
| 18 | 07145-00100 | SEAL,DUST (KIT) | 16001- | |
| 19 | 07020-00900 | FITTING,GREASE | 16001- | |
| 20 | 707-36-20110 | PISTON | 16001- | |
| 21 | 07000-12085 | O-RING (KIT) | 16001- | |
| 22 | 07001-02085 | RING,BACK-UP (KIT) | 16001- | |
| 23 | 707-44-20180 | RING,PISTON (KIT) | 16001- | |
| 24 | 07155-02045 | RING,WEAR (KIT) | 16001- | |
| 25 | 707-40-22021 | SPACER | 16001- | |
| 26 | 01010-31455 | BOLT | 16001- | |
| 27 | 195-63-45170 | TUBE,L.H. | 16001- | |
| 195-63-45270 | TUBE,R.H. | 16001- | ||
| 28 | 195-63-45181 | TUBE,L.H. | 16001- | |
| 195-63-45281 | TUBE,R.H. | 16001- | ||
| 29 | 07000-13035 | O-RING (KIT) | 16001- | |
| 30 | 01010-51050 | BOLT | 16001- | |
| 31 | 01010-51060 | BOLT | 16001- | |
| 32 | 01602-21030 | WASHER,SPRING | 16001- | |
| 33 | 195-78-72530 | BRACKET,L.H. | 16001- | |
| 195-78-72540 | BRACKET,R.H. | 16001- | ||
| 34 | 07282-03411 | CLAMP | 16001- | |
| 35 | 01010-51025 | BOLT | 16001- | |
| 36 | 01643-31032 | WASHER | 16001- | |
| 37 | 07283-33450 | CLIP | 16001- | |
| 38 | 01599-01011 | NUT | 16001- | |
| 39 | 01643-31032 | WASHER | 16001- | |
| ==================== |
