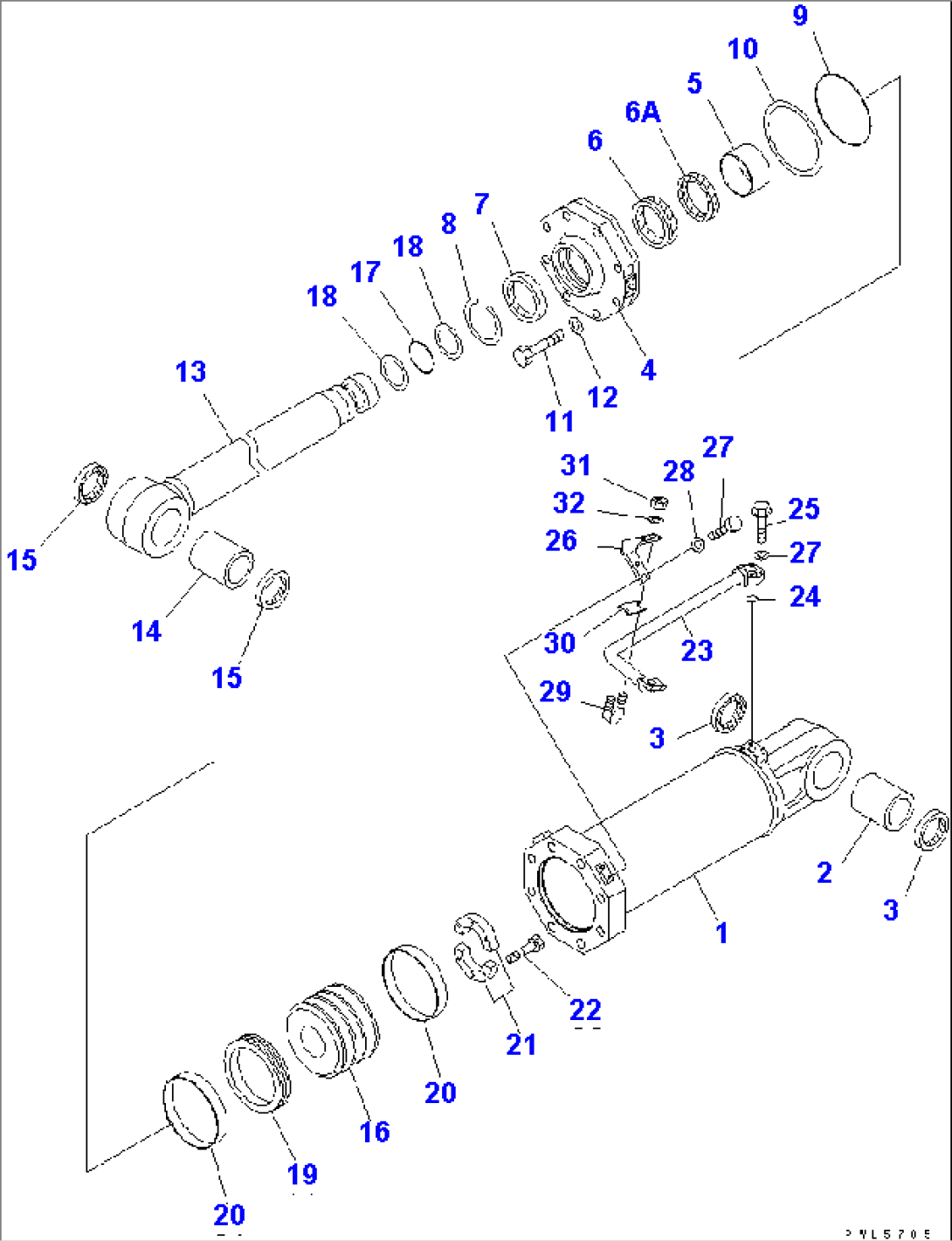

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\707-01-XX390) | TILT CYLINDER GROUP,L.H. (FINAL COATING) | 10105- | |
| G-2 | (\8\707-01-XX400) | TILT CYLINDER GROUP,R.H. (FINAL COATING) | 10105- | |
| ==================== | ||||
| 19M-63-02067 | CYLINDER ASS'Y,L.H. | 10105- | ||
| 19M-63-02077 | CYLINDER ASS'Y,R.H. | 10105- | ||
| 1 | 19M-63-43441 | CYLINDER | 10105- | |
| 2 | 707-76-12510 | BUSHING | 10105- | |
| 3 | 07145-00125 | SEAL,DUST (KIT) | 10105- | |
| 4 | 707-27-28180 | CYLINDER,HEAD | 10105- | |
| 5 | 707-52-91150 | BUSHING | 10105- | |
| 6 | 707-51-14030 | PACKING,ROD (KIT) | 10105- | |
| 6A | 707-51-14810 | RING,BUFFER (KIT) | 10105- | |
| 7 | 198-63-93170 | SEAL,DUST (KIT) | 10105- | |
| 8 | 07179-14160 | RING,SNAP | 10105- | |
| 9 | 07000-15275 | O-RING (KIT) | 10105- | |
| 10 | 178-63-22460 | RING,BACK-UP (KIT) | 10105- | |
| 11 | 01011-83620 | BOLT | 10105- | |
| 12 | 01643-33690 | WASHER | 10105- | |
| 13 | 19M-63-43321 | ROD,PISTON | 10105- | |
| 14 | 707-76-12510 | BUSHING | 10105- | |
| 15 | 07145-00125 | SEAL,DSUT (KIT) | 10105- | |
| 16 | 707-36-28060 | PISTON | 10105- | |
| 17 | 07000-B5115 | O-RING (KIT) | 10105- | |
| 18 | 707-35-91270 | RING,BACK-UP (KIT) | 10105- | |
| 19 | 707-44-28010 | RING,PISTON (KIT) | 10105- | |
| 20 | 707-39-28810 | RING,WEAR (KIT) | 10105- | |
| 21 | 707-40-28030 | SPACER | 10105- | |
| 22 | 01010-61460 | BOLT | 10105- | |
| 23 | 707-86-11450 | TUBE,L.H. | 10105- | |
| 707-86-11460 | TUBE,R.H. | 10105- | ||
| 24 | 07000-13035 | O-RING (KIT) | 10105- | |
| 25 | 01435-01055 | BOLT | 10105- | |
| 26 | 19M-78-11630 | PLATE | 10105- | |
| 27 | 01010-81230 | BOLT | 10105- | |
| 28 | 01643-31232 | WASHER | 10105- | |
| 29 | 07283-33450 | CLIP | 10105- | |
| 30 | 07283-53440 | SHEET | 10105- | |
| 31 | 01597-01009 | NUT | 10105- | |
| 32 | 01643-31032 | WASHER | 10105- | |
| ==================== | ||||
| 707-98-84450 | SERVICE KIT | 10105- |
