| Item | Part No. | Part Name | Qty | Serial No. |

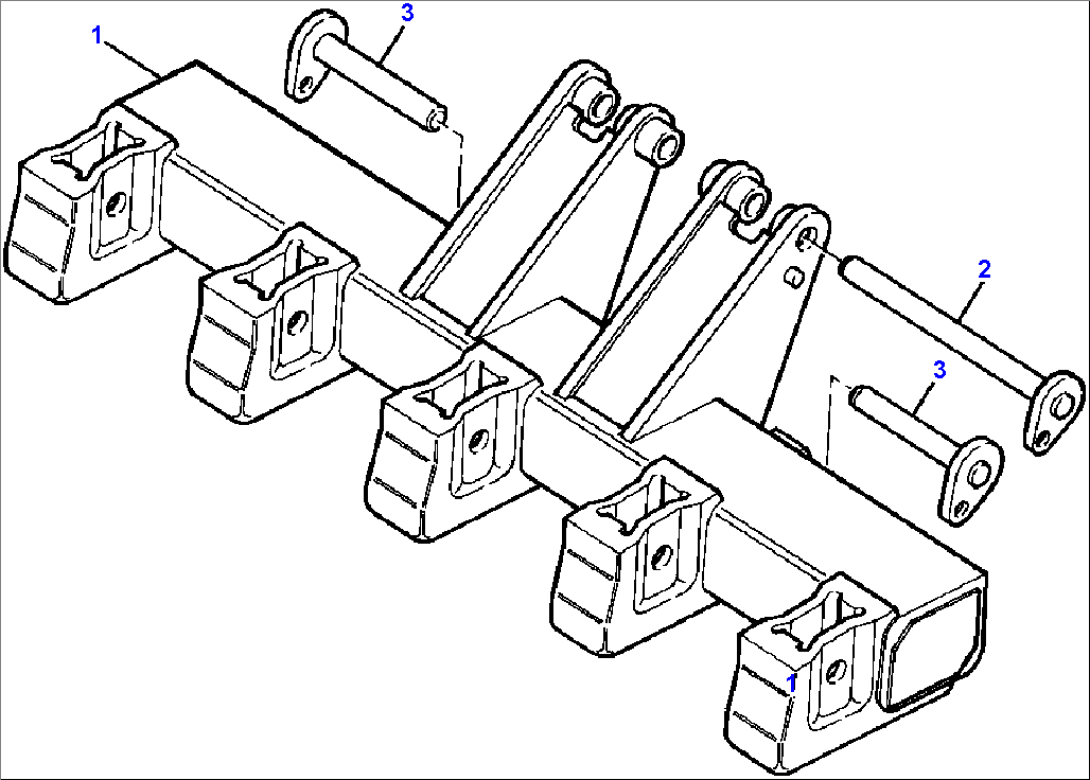

| (710 100 C92) | TOOLBEAM ASSEMBLY | |||
| 1 | 710 106 C2 | TOOLBEAM | ||
| 2 | 710 101 C1 | PIN, CYLINDER AND UPPER STRUT | ||
| 24 859 R1 | BOLT, MOUNTING - 1/2NCx3/4 | |||
| 25 555 R1 | WASHER, FLAT - 1/2 | |||
| 116 121 | WASHER, LOCK - 1/2 | |||
| 3 | 710 103 C1 | PIN, DRAFT FRAME | ||
| 24 859 R1 | BOLT, MOUNTING - 1/2NCx3/4 | |||
| 25 555 R1 | WASHER, FLAT - 1/2 | |||
| 116 121 | WASHER, LOCK - 1/2 | |||
| F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE | ||||
| ONLY. ORDER INDIVIDUAL PIECE PARTS. |
