| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 195-61-43532 | BRACKET | 17001- | |
| 2 | 01010-81230 | BOLT | 17001- | |
| 3 | 01643-31232 | WASHER | 17001- | |
| 4 | 195-06-46280 | CONNECTOR ASS'Y | 17001- | |
| 5 | 08053-01512 | CLIP | 17001- | |
| 6 | 01010-81220 | BOLT | 17001- | |
| 7 | 01643-31232 | WASHER | 17001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D375a 3a s/n 17001 up (7 track roller)
- Hydraulic system
- Ripper valve and piping less
Поиск по каталогу

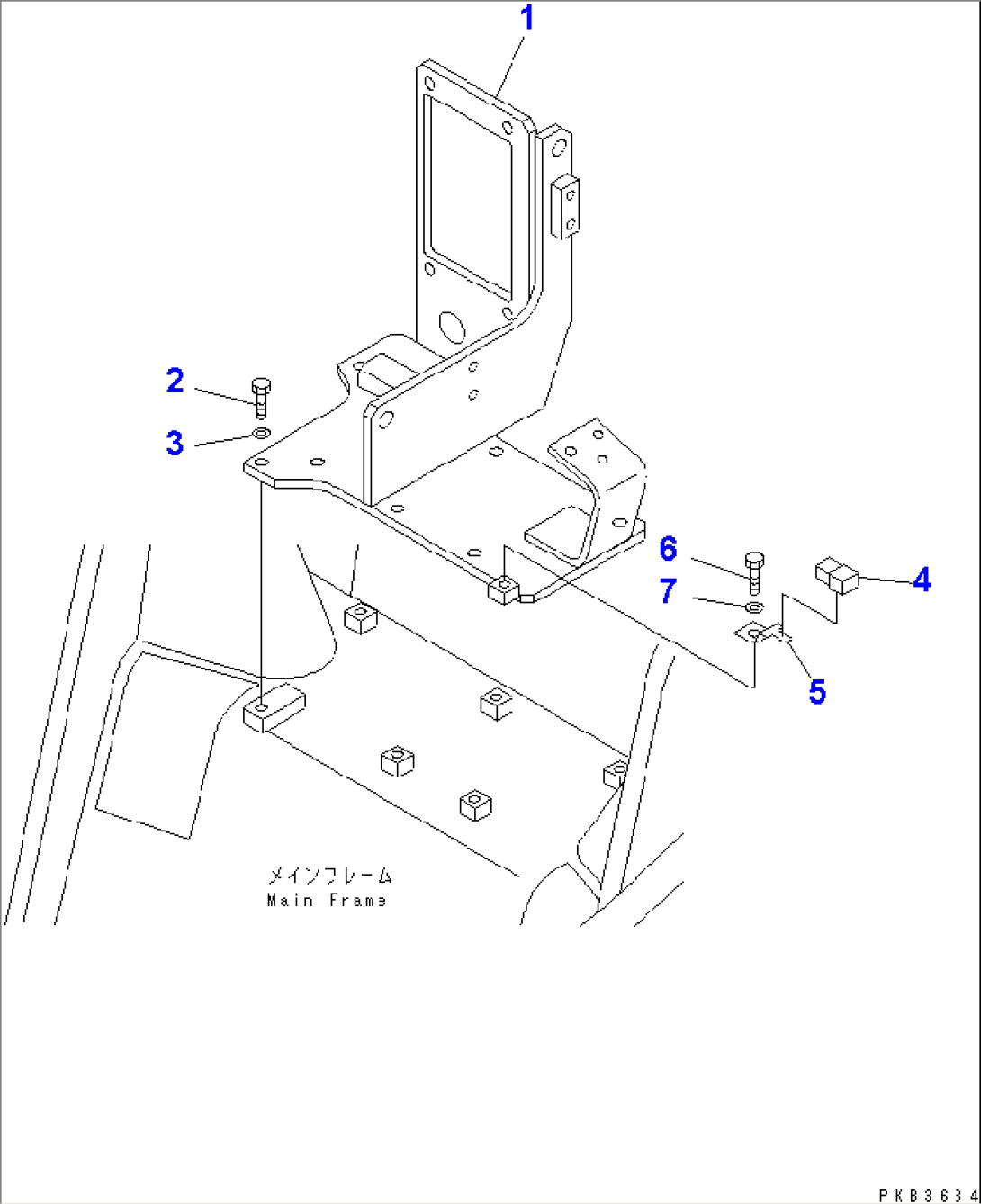

RIPPER VALVE AND PIPING LESS
