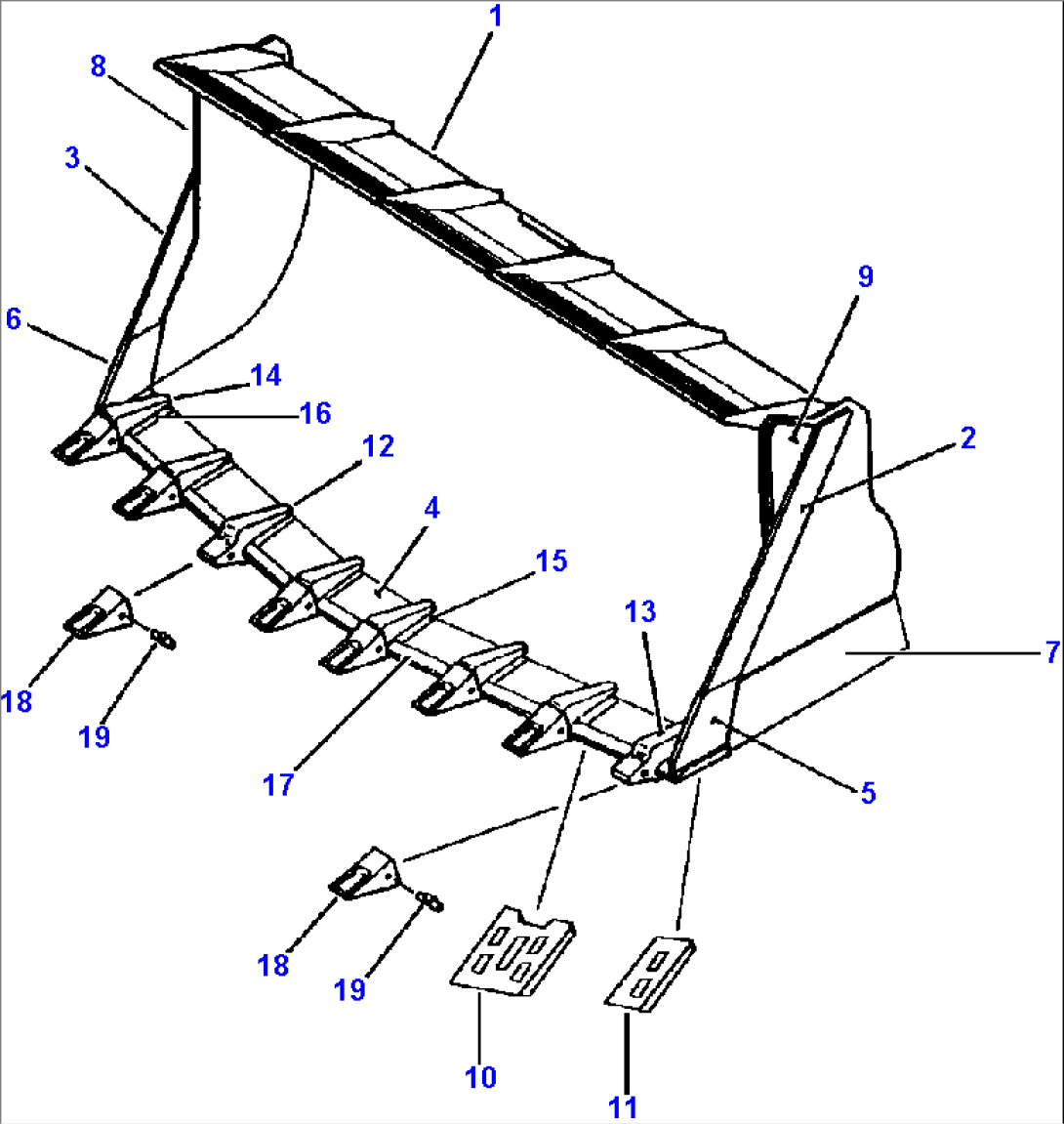

| Item | Part No. | Part Name | Qty | Serial No. |
| 425-819-A110 | BUCKET, 4.0 M³ (5.2 YD³) | |||
| 1 | 425-809-A110 | BUCKET | ||
| 2 | 425-70-A2130 | PLATE, L.H | ||
| 3 | 425-70-A2120 | PLATE, R.H | ||
| 4 | 425-809-1121 | EDGE, CUTTING | ||
| 5 | 425-809-A150 | PLATE, L.H | ||
| 6 | 425-809-A160 | PLATE, R.H | ||
| 7 | 425-809-A180 | PLATE | ||
| 8 | 425-809-A120 | PLATE, R.H | ||
| 9 | 425-809-A130 | PLATE, L.H | ||
| 10 | 425-70-A2140 | PLATE | ||
| 11 | 425-70-A2170 | PLATE | ||
| 12 | 426-847-1121 | ADAPTER | ||
| 13 | 426-848-1121 | ADAPTER, L.H. CORNER | ||
| 14 | 426-848-1131 | ADAPTER, R.H. CORNER | ||
| 15 | 425-847-1170 | PLATE | ||
| 16 | 425-847-1180 | PLATE | ||
| 17 | 426-70-12481 | PLATE | ||
| 18 | 426-847-1110 | TOOTH | ||
| 19 | 426-847-1130 | PIN |
