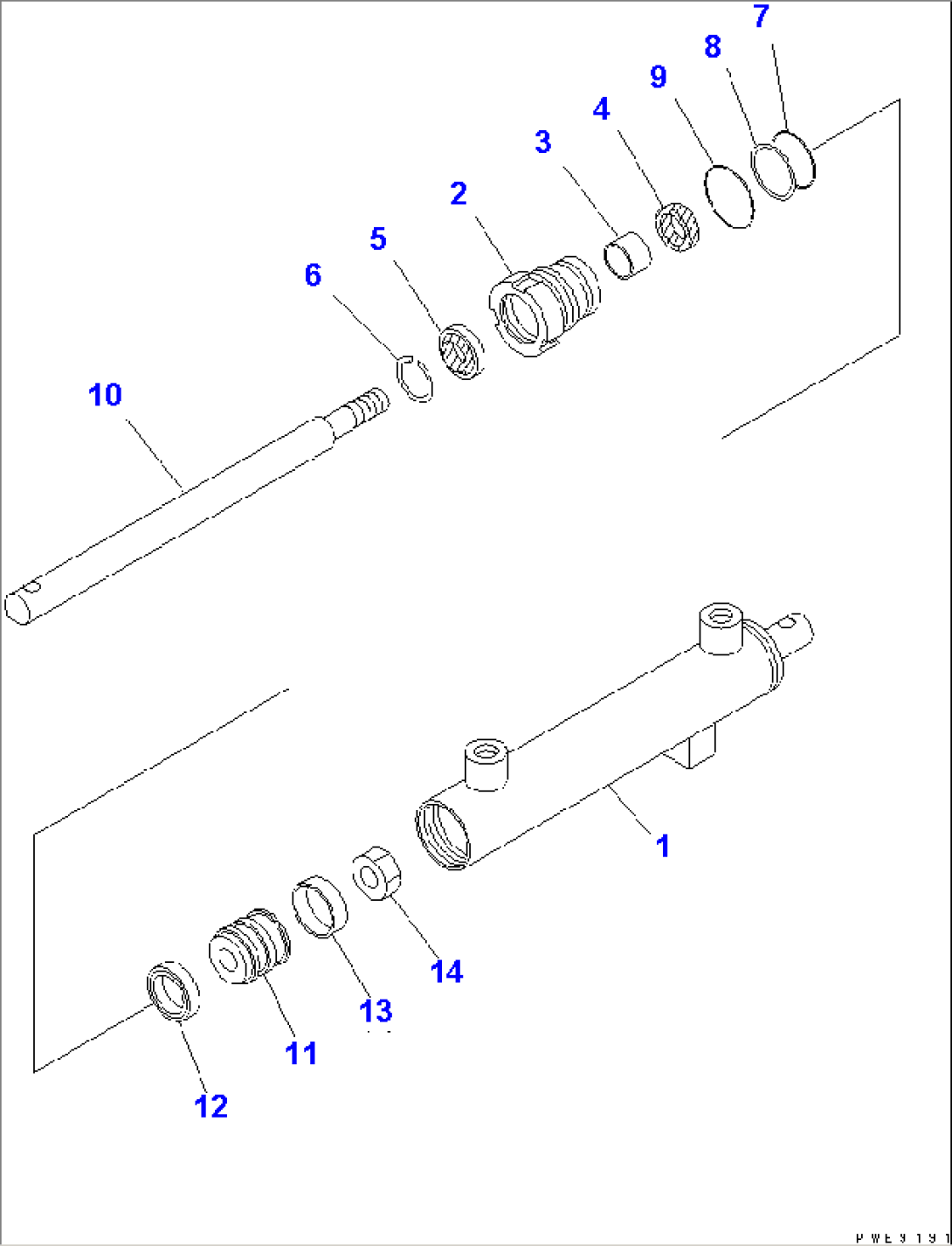

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-00-02450 | CYLINDER ASS'Y | 50001- | ||
| 1 | 707-11-35270 | CYLINDER | 50001- | |
| 2 | 707-29-35060 | HEAD,CYLINDER | 50001- | |
| 3 | 707-52-10260 | BUSHING | 50001- | |
| 4 | 707-51-20030 | PACKING,ROD | 50001- | |
| 5 | 707-56-20590 | SEAL,DUST | 50001- | |
| 6 | 707-75-20050 | RING,SNAP | 50001- | |
| 7 | 07000-13030 | O-RING | 50001- | |
| 8 | 707-35-90300 | RING,BACK-UP | 50001- | |
| 9 | 707-34-36000 | O-RING | 50001- | |
| 10 | 707-58-20170 | ROD,PISTON | 50001- | |
| 11 | 707-36-35020 | PISTON | 50001- | |
| 12 | 707-44-35010 | RING,PISTON | 50001- | |
| 13 | 707-39-35010 | RING,WEAR | 50001- | |
| 14 | 01580-01411 | NUT | 50001- |
