| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-978-3111 | GUARD | 3689- | |
| 2 | 09420-01907 | HANDLE | 3689- | |
| 3 | 01010-81230 | BOLT | 3689- | |
| 4 | 01643-31232 | WASHER | 3689- | |
| 5 | 08037-03614 | GROMMET | 3689- | |
| 6 | 07049-01215 | PLUG | 3689- | |
| 7 | 04418-13060 | SCREW | 3689- |
- Главная
- Каталог запчастей
- Бульдозеры
- D85p 21 ep s/n 3689 up
- Operator's compartment and control system
- Roll over protective structure
Поиск по каталогу

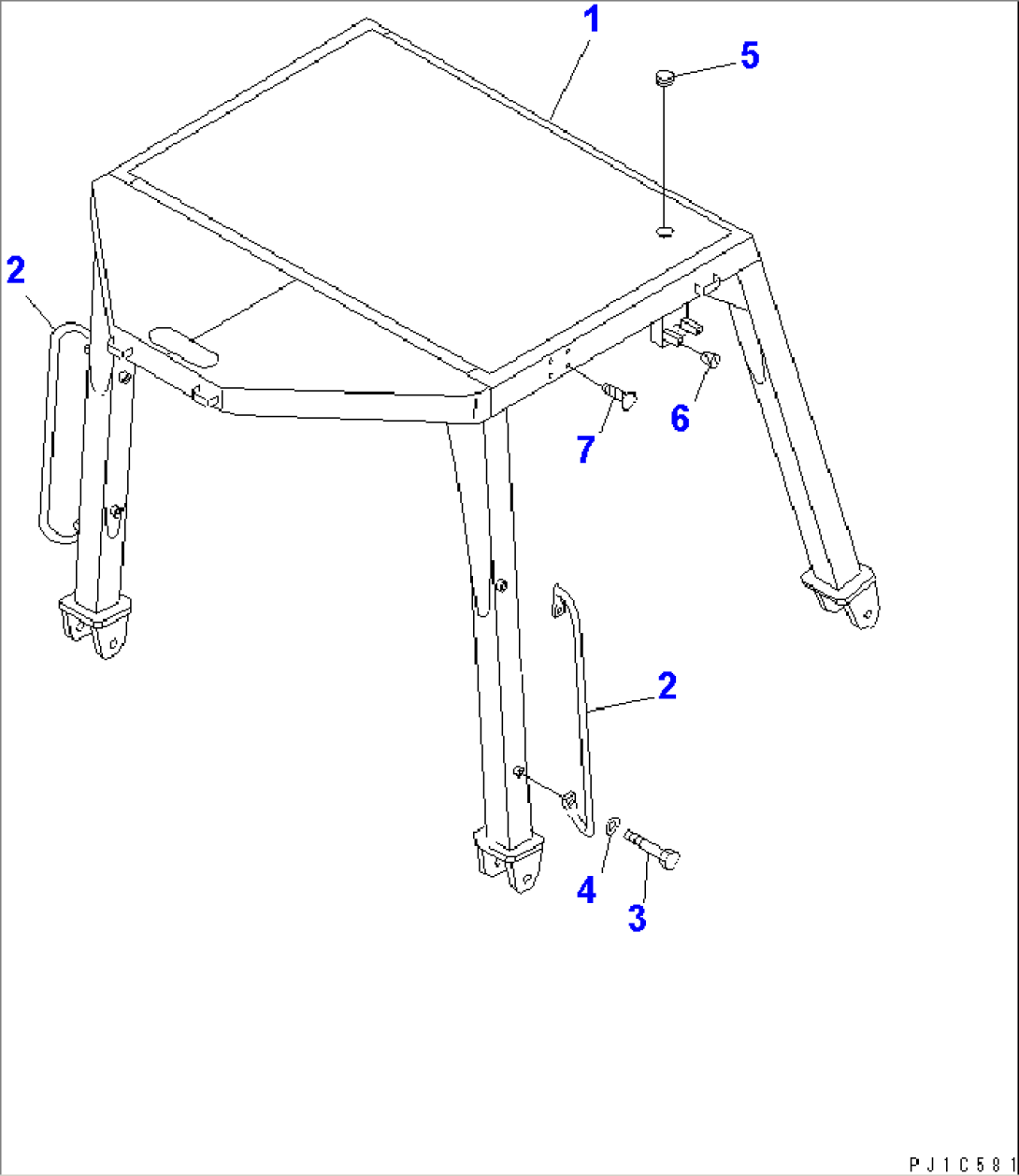

ROLL OVER PROTECTIVE STRUCTURE
