| Item | Part No. | Part Name | Qty | Serial No. |

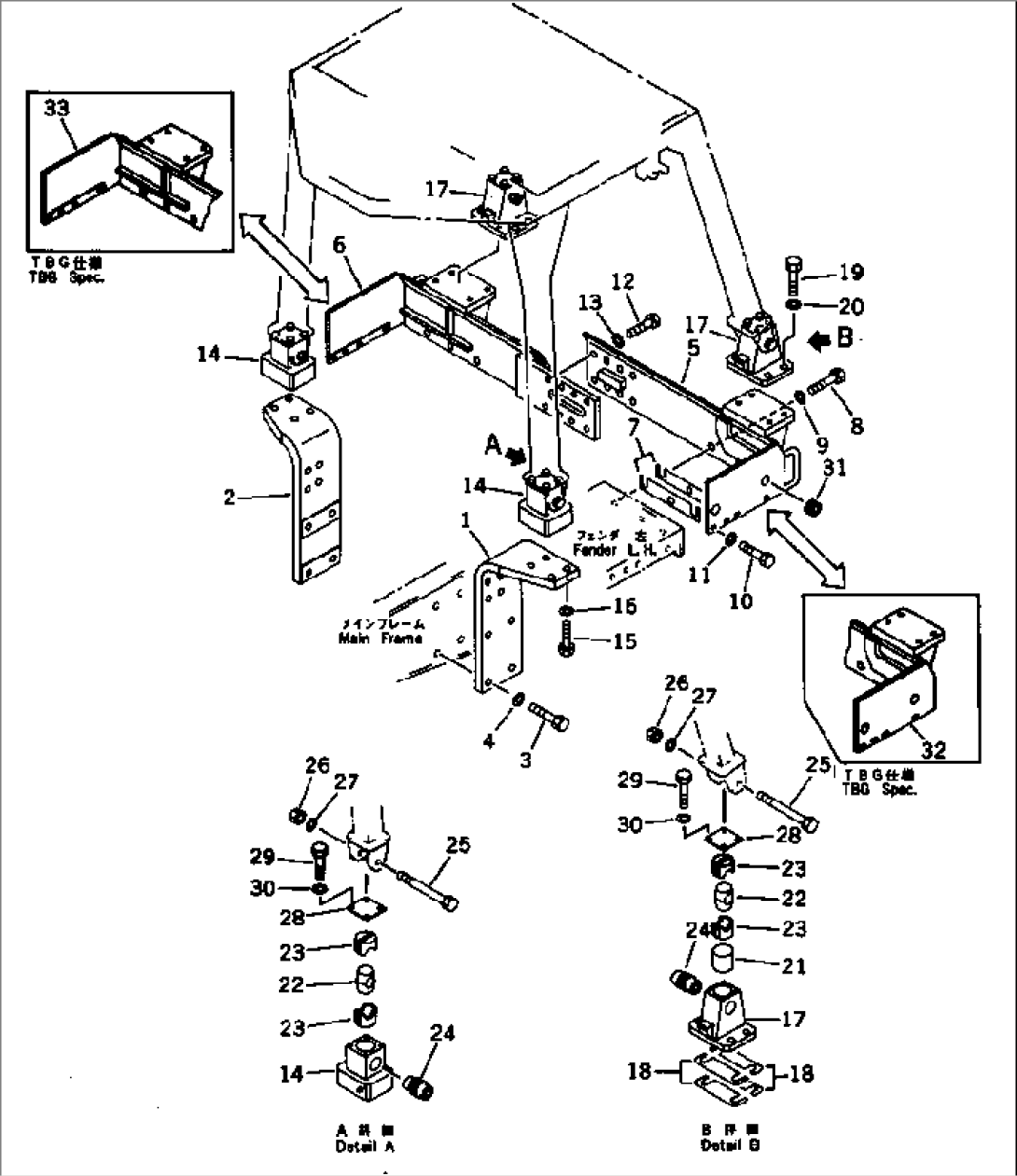

| G-1 | (\8\154-978-X121) | ROPS BRACKET GROUP | 3229-@ | |
| G-1 | (\8\154-978-X120) | ROPS BRACKET GROUP | 3001-3228 | |
| ==================== | ||||
| 1 | 154-978-3130 | PLATE,L.H. | 3001-@ | |
| 2 | 154-978-3140 | PLATE,R.H. | 3001-@ | |
| 3 | 01011-83010 | BOLT | 3001-@ | |
| 4 | 01643-33080 | WASHER | 3001-@ | |
| 5 | 154-978-3281 | BRACKET,L.H. | 3229-3381 | |
| 5 | 154-978-3280 | BRACKET,L.H. | 3001-3228 | |
| 6 | 154-978-3291 | BRACKET,R.H. | 3229-3381 | |
| 6 | 154-978-3290 | BRACKET,R.H. | 3001-3228 | |
| 7 | 154-978-0020 | SHIM ASS'Y | 3001-3381 | |
| 7 | \6\ | SHIM, 1.0MM | 3001-3381 | |
| 7 | \6\ | SHIM, 0.5MM | 3001-3381 | |
| 8 | 01010-82465 | BOLT | 3001-3381 | |
| 9 | 01643-32460 | WASHER | 3001-3381 | |
| 10 | 01010-81650 | BOLT | 3001-3381 | |
| 11 | 01643-31645 | WASHER | 3001-3381 | |
| 12 | 01010-83065 | BOLT | 3001-3381 | |
| 13 | 01643-33080 | WASHER | 3001-3381 | |
| 14 | 154-978-3151 | BRACKET | 3001-@ | |
| 15 | 01011-83010 | BOLT | 3001-@ | |
| 16 | 01643-33080 | WASHER | 3001-@ | |
| 17 | 154-978-3310 | BRACKET | 3001-@ | |
| 18 | 154-978-0030 | SHIM ASS'Y | 3001-@ | |
| 18 | \6\ | SHIM, 1.0MM | 3001-@ | |
| 18 | \6\ | SHIM, 0.5MM | 3001-@ | |
| 19 | 01010-82465 | BOLT | 3001-@ | |
| 20 | 01643-32460 | WASHER | 3001-@ | |
| 21 | 154-978-3171 | SEAT | 3001-@ | |
| 22 | 195-54-45490 | BLOCK | 3001-@ | |
| 23 | 154-54-42220 | RUBBER | 3001-@ | |
| 24 | 195-54-45510 | COLLAR | 3001-@ | |
| 25 | 175-978-5210 | BOLT | 3001-@ | |
| 26 | 01580-12722 | NUT | 3001-@ | |
| 27 | 01643-32780 | WASHER | 3001-@ | |
| 28 | 195-56-11320 | PLATE | 3001-@ | |
| 29 | 01010-51230 | BOLT | 3001-@ | |
| 30 | 01643-31232 | WASHER | 3001-@ | |
| 31 | 154-978-3331 | CAP | 3229-@ | |
| 31 | 154-978-3330 | CAP | 3001-3228 | |
| ==================== | ||||
| 32 | 154-978-3340 | BRACKET,L.H,TBG SPEC | 3001-3381 | |
| 33 | 154-978-3351 | BRACKET,R.H,TBG SPEC | 3229-3381 | |
| 33 | 154-978-3350 | BRACKET,R.H,TBG SPEC | 3001-3228 |
