| Item | Part No. | Part Name | Qty | Serial No. |
| (273-70-31000) | ROLLER ASS'Y | 30003- | ||

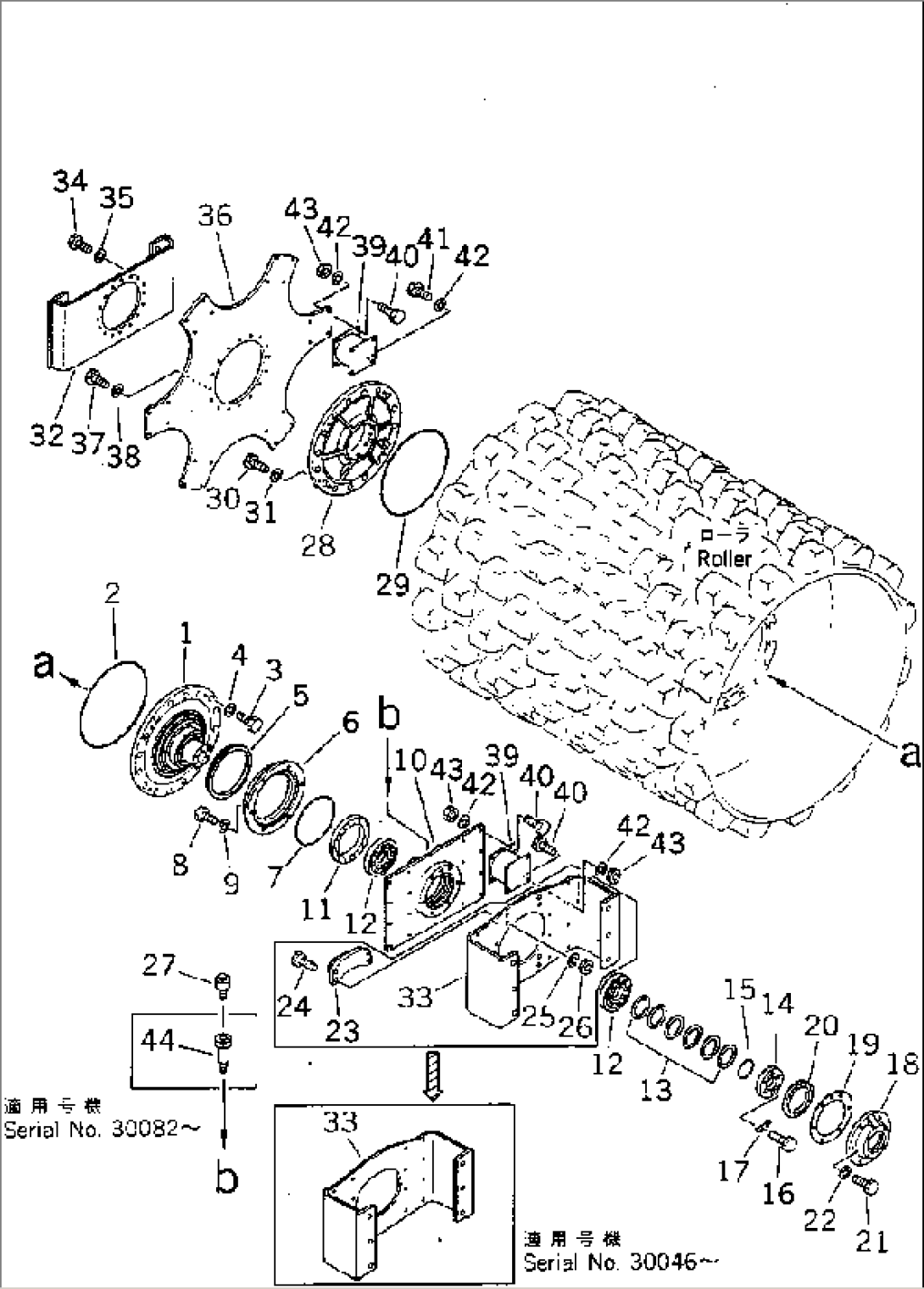

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3001 AND 3003. | ||||
| 1 | 273-70-21260 | FLANGE,AXLE | 30003- | |
| 2 | 07000-15500 | O-RING | 30003- | |
| 3 | 01010-52060 | BOLT | 30003- | |
| 4 | 01643-32060 | WASHER | 30003- | |
| 5 | 273-70-21320 | RING | 30003- | |
| 6 | 273-70-21280 | RING | 30003- | |
| 7 | 07000-15325 | O-RING | 30003- | |
| 8 | 01010-51035 | BOLT | 30003- | |
| 9 | 01643-31032 | WASHER | 30003- | |
| 10 | 273-70-21270 | HUB | 30003- | |
| 11 | 273-70-21330 | SEAL,OIL | 30003- | |
| 12 | 06000-32026 | BEARING | 30003- | |
| 13 | 273-70-00030 | SHIM ASS'Y | 30003- | |
| 273-70-21350 | SHIM,0.1MM | 30003- | ||
| 273-70-21360 | SHIM,0.5MM | 30003- | ||
| 14 | 273-70-21290 | COVER | 30003- | |
| 15 | 07000-12125 | O-RING | 30003- | |
| 16 | 01010-51035 | BOLT | 30003- | |
| 17 | 273-70-21310 | WASHER | 30003- | |
| 18 | 273-70-21380 | FLANGE | 30003- | |
| 19 | 273-70-21371 | GASKET,(NON ASBESTOS) | 30087- | |
| \0\273-70-21370 | GASKET | 30003-30086 | ||
| 20 | 273-70-21340 | SEAL,OIL | 30003- | |
| 21 | 01010-51245 | BOLT | 30003- | |
| 22 | 01643-31232 | WASHER,SPRING | 30003- | |
| 23 | 273-70-21430 | STOPPER | 30003-30086 | |
| 24 | 01010-52070 | BOLT | 30003-30086 | |
| 25 | 01602-22060 | WASHER,SPRING | 30003-30086 | |
| 26 | 01580-12016 | NUT | 30003-30086 | |
| 27 | 07030-10252 | BREATHER | 30003- | |
| 28 | 273-70-21250 | FLANGE | 30003- | |
| 29 | 07000-15500 | O-RING | 30003- | |
| 30 | 01010-52060 | BOLT | 30003- | |
| 31 | 01643-32032 | WASHER | 30003- | |
| 32 | 273-70-21420 | BRACKET,R.H. | 30003- | |
| 33 | 273-70-21411 | BRACKET,L.H. | 30046- | |
| 273-70-21410 | BRACKET,L.H. | 30003-30045 | ||
| 34 | 01010-51650 | BOLT | 30003- | |
| 35 | 01643-31645 | WASHER,SPRING | 30003- | |
| 36 | 273-70-31130 | PLATE | 30003- | |
| 37 | 01010-51650 | BOLT | 30003- | |
| 38 | 01643-31645 | WASHER | 30003- | |
| 39 | 273-70-11720 | CUSHION | 30003- | |
| 273-70-11730 | CUSHION,(12200KG SPEC) | 30003- | ||
| 40 | 01010-51240 | BOLT | 30003- | |
| 01010-51245 | BOLT | 30003- | ||
| 41 | 01010-51225 | BOLT | 30003- | |
| 01010-51230 | BOLT | 30003- | ||
| 42 | 01643-31232 | WASHER | 30003- | |
| 43 | 01580-11210 | NUT | 30003- | |
| 44 | 273-70-21530 | JOINT | 30082- |
