| Item | Part No. | Part Name | Qty | Serial No. |
| 273-70-12000 | ROLLER ASS'Y | 10011- | ||

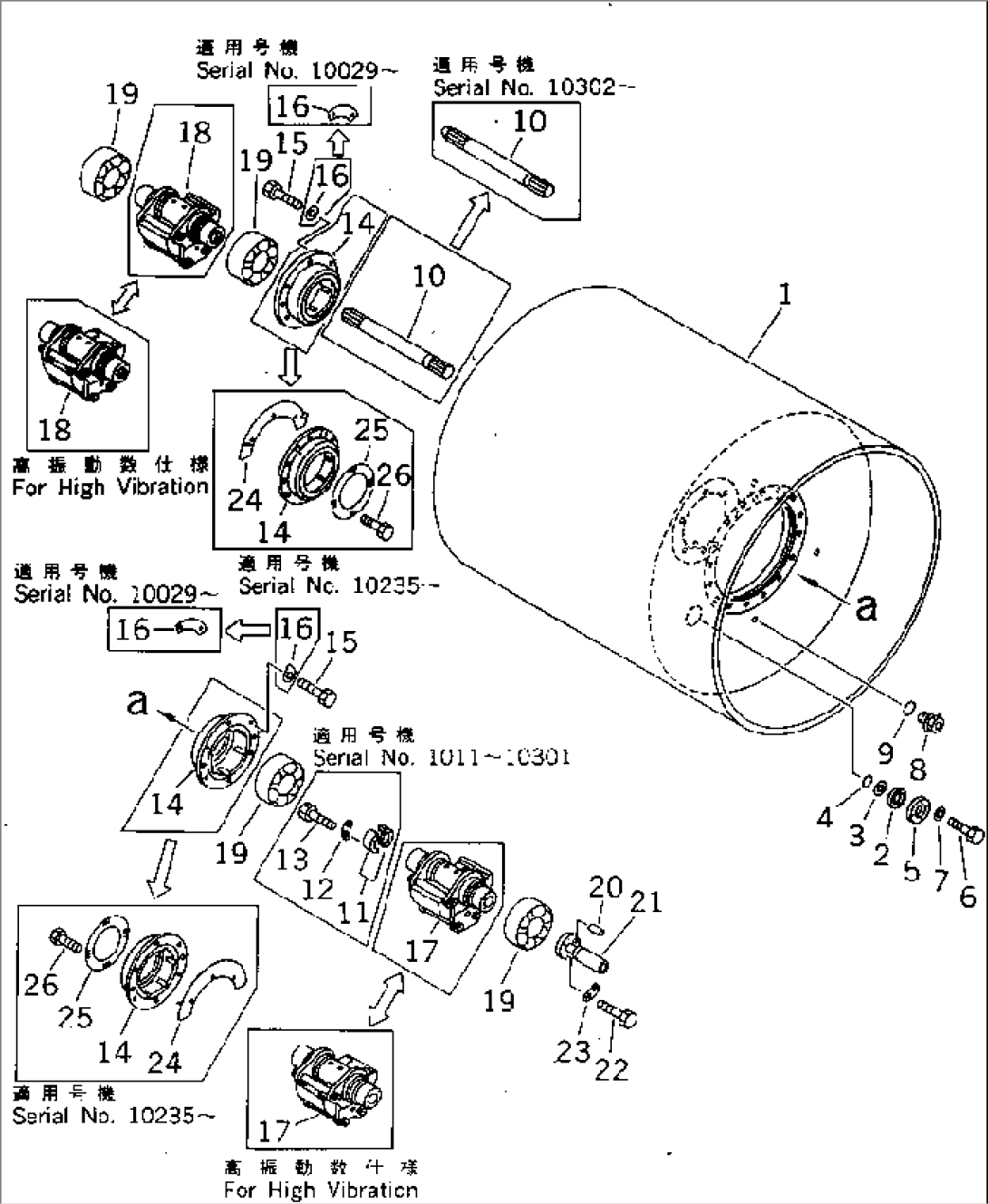

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3001 AND 3003. | ||||
| 1 | 273-70-11742 | ROLLER | 10302- | |
| 273-70-11741 | ROLLER | 10011-10301 | ||
| 2 | 07715-11257 | RING | 10011- | |
| 3 | 07715-00651 | COVER | 10011- | |
| 4 | 10E-60-12150 | PLATE | 10011- | |
| 5 | 273-70-11620 | FLANGE | 10011- | |
| 6 | 01010-50616 | BOLT | 10011- | |
| 7 | 01643-30623 | WASHER | 10011- | |
| 8 | 07044-12412 | PLUG | 10011- | |
| 9 | 07002-12434 | O-RING | 10011- | |
| 10 | 273-70-51120 | SHAFT | 10302- | |
| 273-70-12130 | SHAFT | 10011-10301 | ||
| 11 | 273-70-12140 | FLANGE | 10011-10301 | |
| 12 | 273-70-11460 | WASHER | 10011-10301 | |
| 13 | 07372-01050 | BOLT | 10011-10301 | |
| 14 | 273-70-11311 | HOUSING | 10235- | |
| 273-70-11310 | HOUSING | 10011-10234 | ||
| 15 | 01010-51235 | BOLT | 10011- | |
| 16 | 273-70-12370 | LOCK | 10029- | |
| 01650-21212 | WASHER | 10011-10028 | ||
| 17 | 273-70-51300 | WEIGHT,L.H. | 10305- | |
| 273-70-12401 | WEIGHT,L.H. | 10235-10304 | ||
| 273-70-12400 | WEIGHT,L.H. | 10011-10234 | ||
| 273-861-3200 | WEIGHT,L.H. (FOR HIGH VIBRATION) | 10011- | ||
| 18 | 273-70-12501 | WEIGHT,R.H. | 10235- | |
| 273-70-12500 | WEIGHT,R.H. | 10011-10234 | ||
| 273-861-3100 | WEIGHT,R.H. (FOR HIGH VIBRATION) | 10011- | ||
| 19 | 273-70-11340 | BEARING | 10011- | |
| 20 | 04020-01024 | PIN,DOWEL | 10011- | |
| 21 | 273-70-11470 | SHAFT | 10011- | |
| 22 | 01010-51030 | BOLT | 10011- | |
| 23 | 273-70-11460 | WASHER | 10011- | |
| 24 | 273-70-11910 | PLATE | 10235- | |
| 25 | 273-70-11920 | PLATE | 10235- | |
| 26 | 01010-51610 | BOLT | 10235- |
