| Item | Part No. | Part Name | Qty | Serial No. |

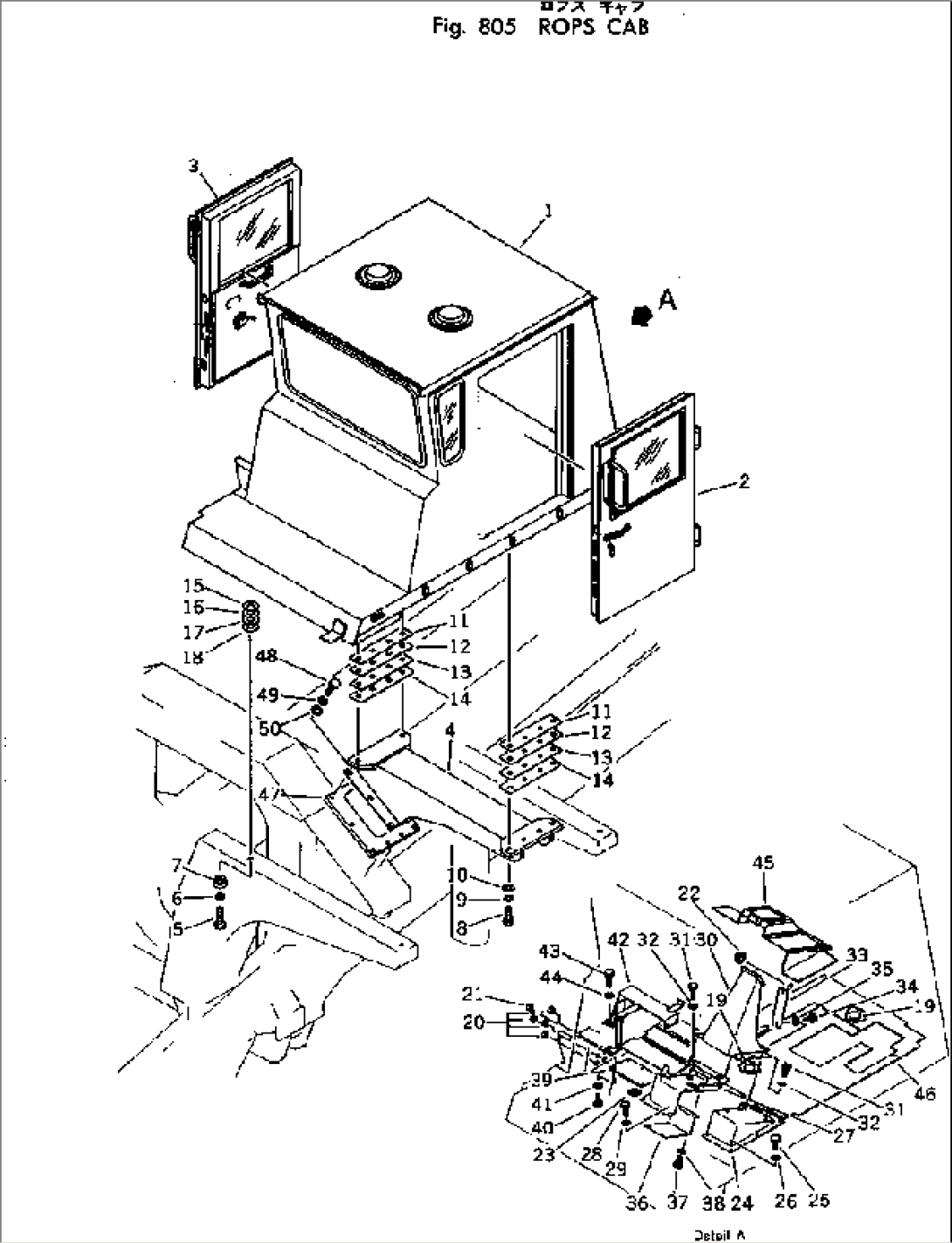

| 561-90-30000 | ROPS CAB ASS'Y | 1101- | ||
| 561-90-31000 | ROPS CAB ASS'Y | 1101- | ||
| 1 | 561-90-31100 | ROPS CAB ASS'Y | 1101- | |
| 2 | 566-54-24101 | DOOR ASS'Y,(SEE FIG¤532) | 1101- | |
| 3 | 566-54-25101 | DOOR ASS'Y,(SEE FIG¤533) | 1101- | |
| 4 | 561-90-31510 | SUPPORT | 1101- | |
| 5 | 01016-52490 | BOLT | 1115- | |
| \0\01010-62485 | BOLT | 1101-1114 | ||
| 6 | 01643-32460 | WASHER | 1115- | |
| \0\01602-22472 | WASHER | 1101-1114 | ||
| 7 | 561-90-31610 | SPACER | 1101- | |
| 8 | 01016-52490 | BOLT | 1115- | |
| \0\01010-62485 | BOLT | 1101-1114 | ||
| 9 | 01602-22472 | WASHER | 1101-1114 | |
| 10 | 01643-32460 | WASHER | 1101- | |
| 11 | 561-90-31620 | PLATE¤ 6.0MM | 1101- | |
| 12 | 561-90-31630 | PLATE¤ 3.2MM | 1101- | |
| 13 | 561-90-31640 | PLATE¤ 2.3MM | 1101- | |
| 14 | 561-90-31650 | PLATE¤ 1.2MM | 1101- | |
| 15 | 561-90-31660 | PLATE¤ 6.0MM | 1101- | |
| 16 | 561-90-31670 | PLATE¤ 3.2MM | 1101- | |
| 17 | 561-90-31680 | PLATE¤ 2.3MM | 1101- | |
| 18 | 561-90-31690 | PLATE¤ 1.2MM | 1101- | |
| 19 | 09415-05016 | CAP | 1101- | |
| 20 | 566-54-13970 | GROMMET | 1101- | |
| 21 | 566-54-13980 | GROMMET | 1101- | |
| 22 | 08037-05016 | GROMMET | 1101- | |
| 23 | 566-54-11180 | CUSHION | 1101- | |
| 24 | 566-54-12324 | BOARD | 1101- | |
| 25 | 01010-51020 | BOLT | 1101- | |
| 26 | 01643-31032 | WASHER | 1101- | |
| 27 | 569-54-12282 | BOARD | 1101- | |
| 28 | 01010-51020 | BOLT | 1101- | |
| 29 | 01643-31032 | WASHER | 1101- | |
| 30 | 566-54-12662 | COVER | 1101- | |
| 31 | 01010-51020 | BOLT | 1101- | |
| 32 | 01643-31032 | WASHER | 1101- | |
| 33 | 566-54-18210 | COVER | 1101- | |
| 34 | 01010-50812 | BOLT | 1101- | |
| 35 | 01640-20816 | WASHER | 1101- | |
| 36 | 566-54-12651 | GUARD | 1101- | |
| 37 | 01010-51020 | BOLT | 1101- | |
| 38 | 01643-31032 | WASHER | 1101- | |
| 39 | 561-90-31810 | COVER | 1101- | |
| 40 | 01010-51025 | BOLT | 1101- | |
| 41 | 01643-31032 | WASHER | 1101- | |
| 42 | 566-07-11131 | BRACKET | 1101- | |
| 43 | 01010-51230 | BOLT | 1101- | |
| 44 | 01643-31232 | WASHER | 1101- | |
| 45 | 561-90-31710 | MAT | 1101- | |
| 46 | 561-90-31720 | MAT | 1101- | |
| 47 | 561-90-31910 | SEAT | 1101- | |
| 48 | 01010-82455 | BOLT | 1115- | |
| \0\01010-82465 | BOLT | 1101-1114 | ||
| 49 | 01602-22472 | WASHER | 1101-1114 | |
| 50 | 01643-32460 | WASHER | 1101- |
