| Item | Part No. | Part Name | Qty | Serial No. |

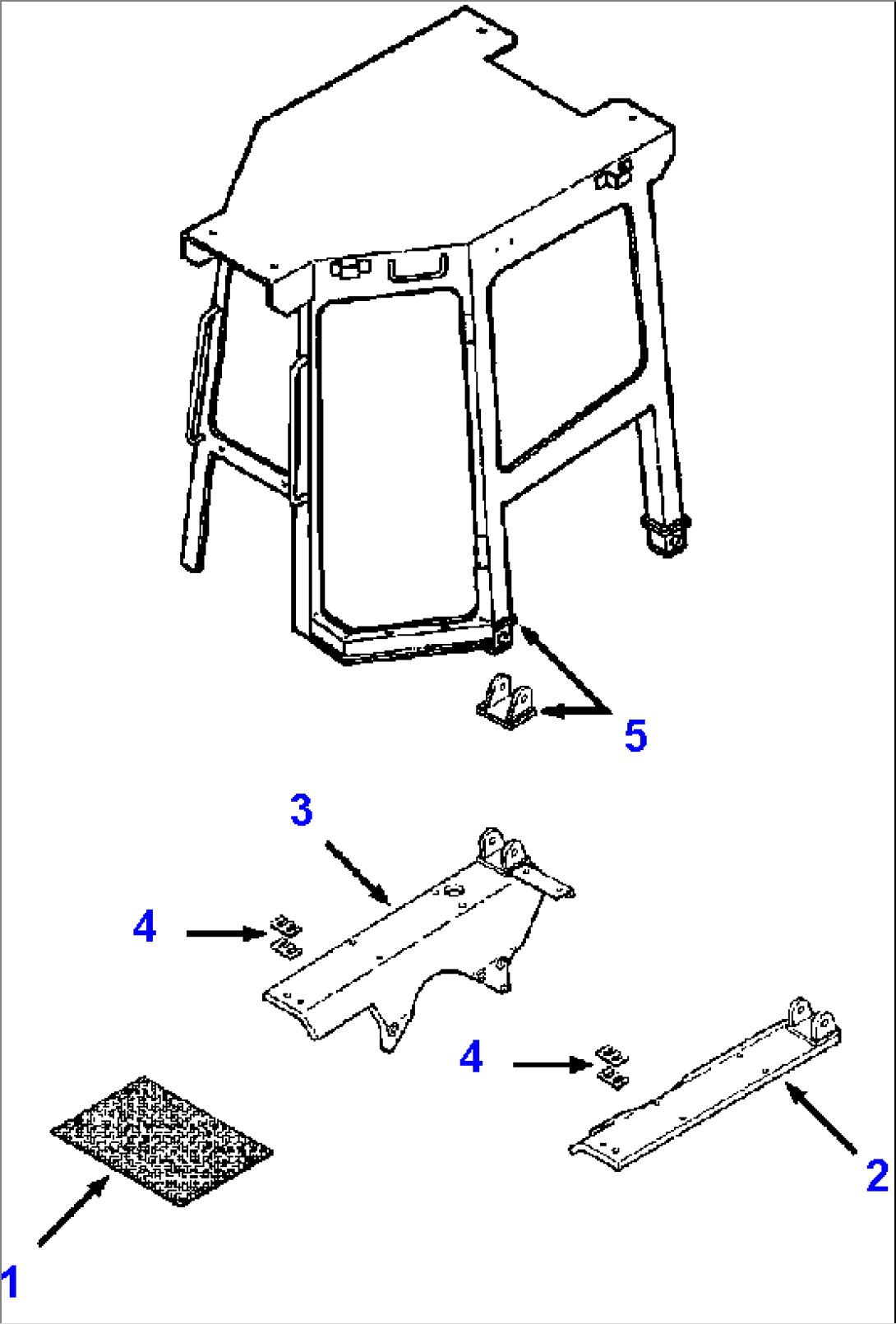

| (1300 486 H91) | FENDERS AND PLATFORMS | |||
| 1 | 1268 598 H1 | PLATE, FLOOR | ||
| 24 840 R1 | BOLT, HEX - 3/8NCx1 | |||
| 25 553 R1 | WASHER, FLAT - 3/8 | |||
| 2 | 1299 607 H91 | FENDER, LEFT | ||
| 24 891 R1 | BOLT, HEX - 3/4NCx2-3/4 | |||
| 25 548 R1 | WASHER, FLAT - 3/4 | |||
| 3 | 1299 608 H91 | FENDER, RIGHT | ||
| 24 891 R1 | BOLT, HEX - 3/4NCx2-3/4 | |||
| 25 548 R1 | WASHER, FLAT - 3/4 | |||
| 4 | 1299 603 H1 | SPACER, FENDER | ||
| 24 891 R1 | BOLT, HEX - 3/4NCx2-3/4 | |||
| 5 | CAB MOUNTING (SEE PG 13-048) | |||
| F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. | ||||
