| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 208-979-7540 | Collar | C10001- | |
| 2 | 01010-80830 | Bolt | C10001- | |
| 3 | 01643-30823 | Washer | C10001- | |
| 4 | 08034-40521 | Band | C10001- | |
| 5 | 08037-12036 | Grommet | C10001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa200 6 s/n c10001 up
- Operator's compartment and control system
- Rops cab and floor frame group air conditioner unit mounts (#c10001 )
Поиск по каталогу

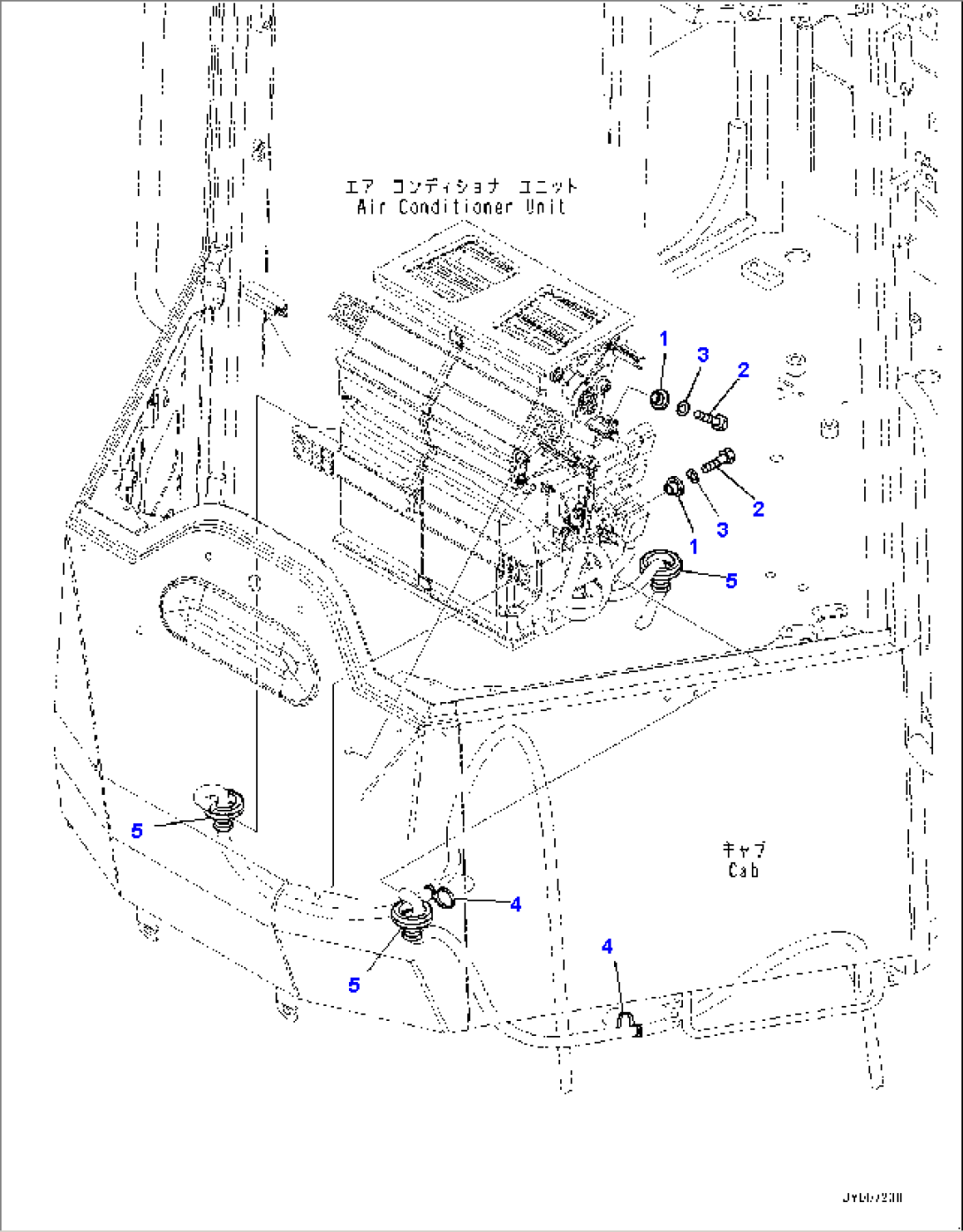

ROPS Cab And Floor Frame Group Air Conditioner Unit Mounts (#C10001-)
