| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-926-4480 | Pad | 70883- | |
| 2 | 418-926-4J50 | Sheet | 70883- | |
| 3 | 418-926-4J60 | Sheet | 70883- | |
| 4 | 423-56-21910 | Button | 70883- | |
| 5 | 205-54-51250 | Hanger | 70883- | |
| 6 | 01224-70412 | Screw, Philips Head | 70883- | |
| 7 | 418-926-4J70 | Sheet | 70883- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa200pz 6 s/n 70883 up (for north america)
- Operator's compartment and control system
- Rops cab and floor frame group, roof cover (#70883 )
Поиск по каталогу

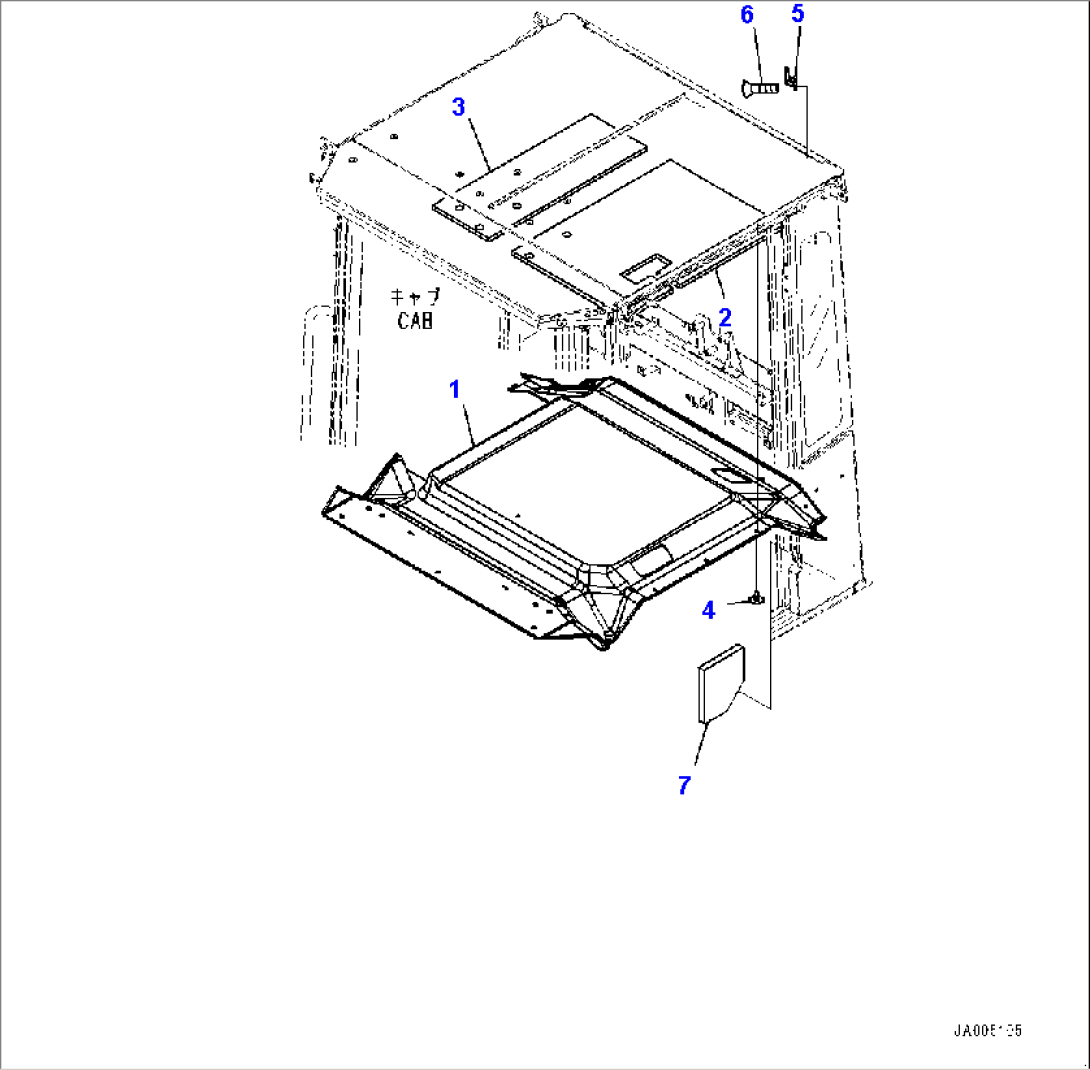

ROPS Cab and Floor Frame Group, Roof Cover (#70883-)
