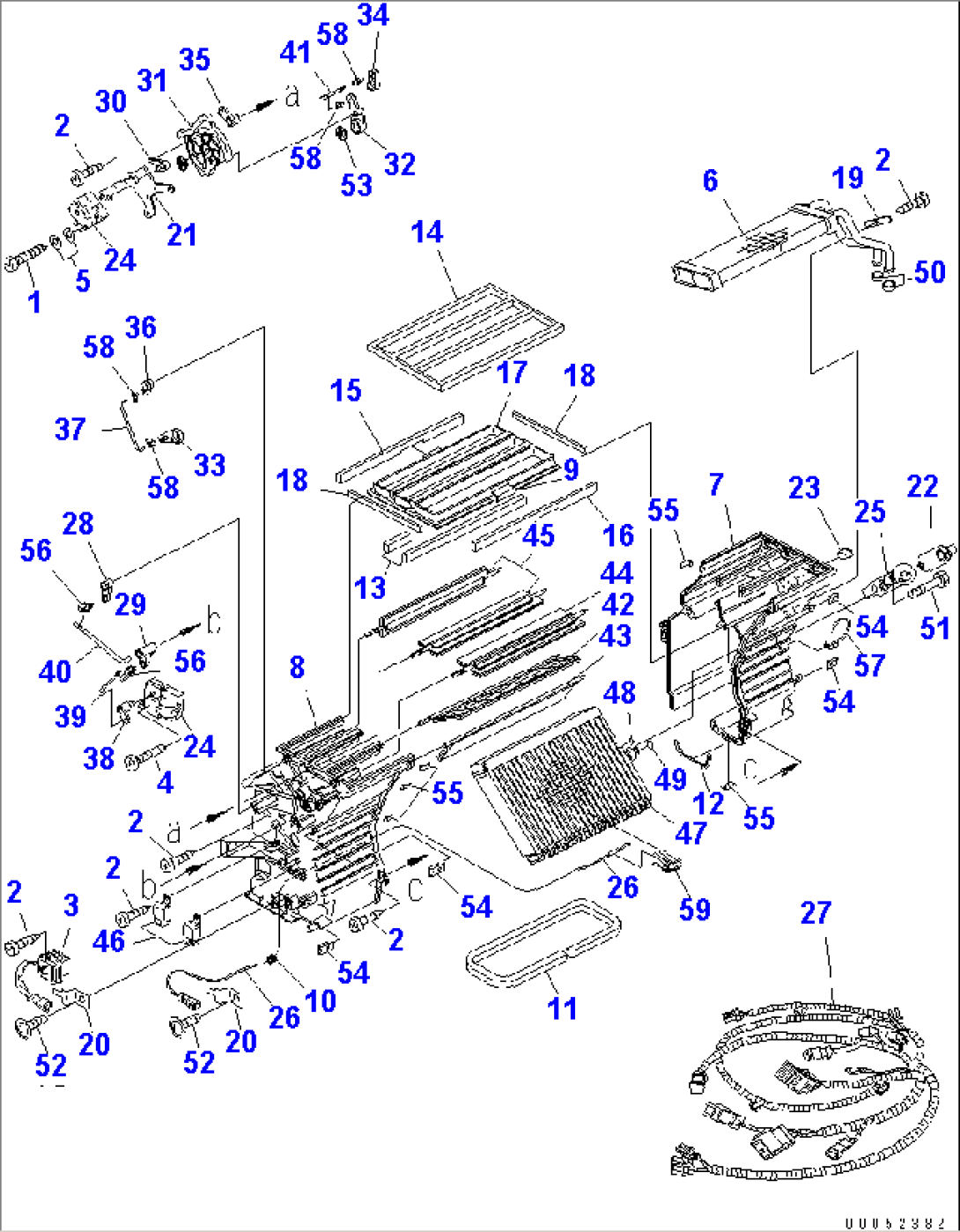

| Item | Part No. | Part Name | Qty | Serial No. |
| 423-07-31811 | UNIT ASS'Y | 85001- | ||
| 1 | ANKN-0425BA8 | BOLT | 85001- | |
| 2 | ANTB105160T1 | SCREW | 85001- | |
| 3 | ANTKS-B210A0 | CONTROLLER | 85001- | |
| 4 | ANTN104300T1 | SCREW | 85001- | |
| 5 | ANWPA04000G1 | WASHER | 85001- | |
| 6 | AN51141-10430 | HEATER CORE ASS'Y | 85001- | |
| 7 | AN51150-12590 | CASE ASS'Y,R.H. | 85001- | |
| 8 | AN51150-12680 | CASE ASS'Y,L.H. | 85001- | |
| 9 | AN51159-41850 | JOINT | 85001- | |
| 10 | AN51184-40820 | GROMMET | 85001- | |
| 11 | AN51191-58720 | PACKING | 85001- | |
| 12 | AN51191-59410 | PACKING | 85001- | |
| 13 | AN51191-59601 | PACKING | 85001- | |
| 14 | AN51191-59710 | PACKING | 85001- | |
| 15 | AN51191-59720 | PACKING | 85001- | |
| 16 | AN51191-59730 | PACKING | 85001- | |
| 17 | AN51191-59740 | PACKING | 85001- | |
| 18 | AN51191-59750 | PACKING | 85001- | |
| 19 | AN51243-41500 | PIPE | 85001- | |
| 20 | AN51259-41750 | BRACKET | 85001- | |
| 21 | AN51260-40670 | BRACKET | 85001- | |
| 22 | AN51436-D0580 | COVER,EXPANSION VALVE | 85001- | |
| 23 | AN51436-10320 | CAP,COOLER BOX | 85001- | |
| 24 | AN51502-15130 | MOTOR ACTUATOR | 85001- | |
| 25 | AN51515-A0490 | EXPANSION VALVE | 85001- | |
| 26 | AN51532-41240 | THERMISTOR | 85001- | |
| 27 | AN51550-18860 | HARNESS | 85001- | |
| 28 | AN51571-43580 | LEVER,UPPER | 85001- | |
| 29 | AN51571-43590 | LEVER,LOWER | 85001- | |
| 30 | AN51571-43840 | LEVER | 85001- | |
| 31 | AN51571-43850 | LINK | 85001- | |
| 32 | AN51571-43860 | LEVER | 85001- | |
| 33 | AN51571-43870 | LEVER | 85001- | |
| 34 | AN51571-43880 | LEVER | 85001- | |
| 35 | AN51571-43890 | LEVER | 85001- | |
| 36 | AN51571-43900 | LEVER | 85001- | |
| 37 | AN51571-43910 | ROD | 85001- | |
| 38 | AN51571-44120 | LEVER | 85001- | |
| 39 | AN51571-44320 | ROD | 85001- | |
| 40 | AN51571-44330 | ROD | 85001- | |
| 41 | AN51571-44570 | ROD | 85001- | |
| 42 | AN51573-11552 | DAMPER,UPPER | 85001- | |
| 43 | AN51573-11562 | DAMPER,LOWER | 85001- | |
| 44 | AN51573-11660 | DAMPER | 85001- | |
| 45 | AN51573-11670 | DAMPER | 85001- | |
| 46 | AN51580-41010 | RELAY | 85001- | |
| 47 | AN51700-A0380 | EVAPORATOR ASS'Y | 85001- | |
| 48 | AN51439-D0041 | O-RING | 85001- | |
| 49 | AN51439-D0051 | O-RING | 85001- | |
| 50 | AN51719-40030 | CAP | 85001- | |
| 51 | AN51851-42250 | BOLT | 85001- | |
| 52 | AN51852-40770 | SCREW | 85001- | |
| 53 | AN51852-40780 | CAP | 85001- | |
| 54 | AN51853-41521 | NUT | 85001- | |
| 55 | AN51870-40040 | CLAMP | 85001- | |
| 56 | AN51870-40910 | CLAMP | 85001- | |
| 57 | AN51871-80010 | BAND | 85001- | |
| 58 | AN51872-40350 | HOLDER | 85001- | |
| 59 | AN51873-40250 | HOLDER | 85001- |
