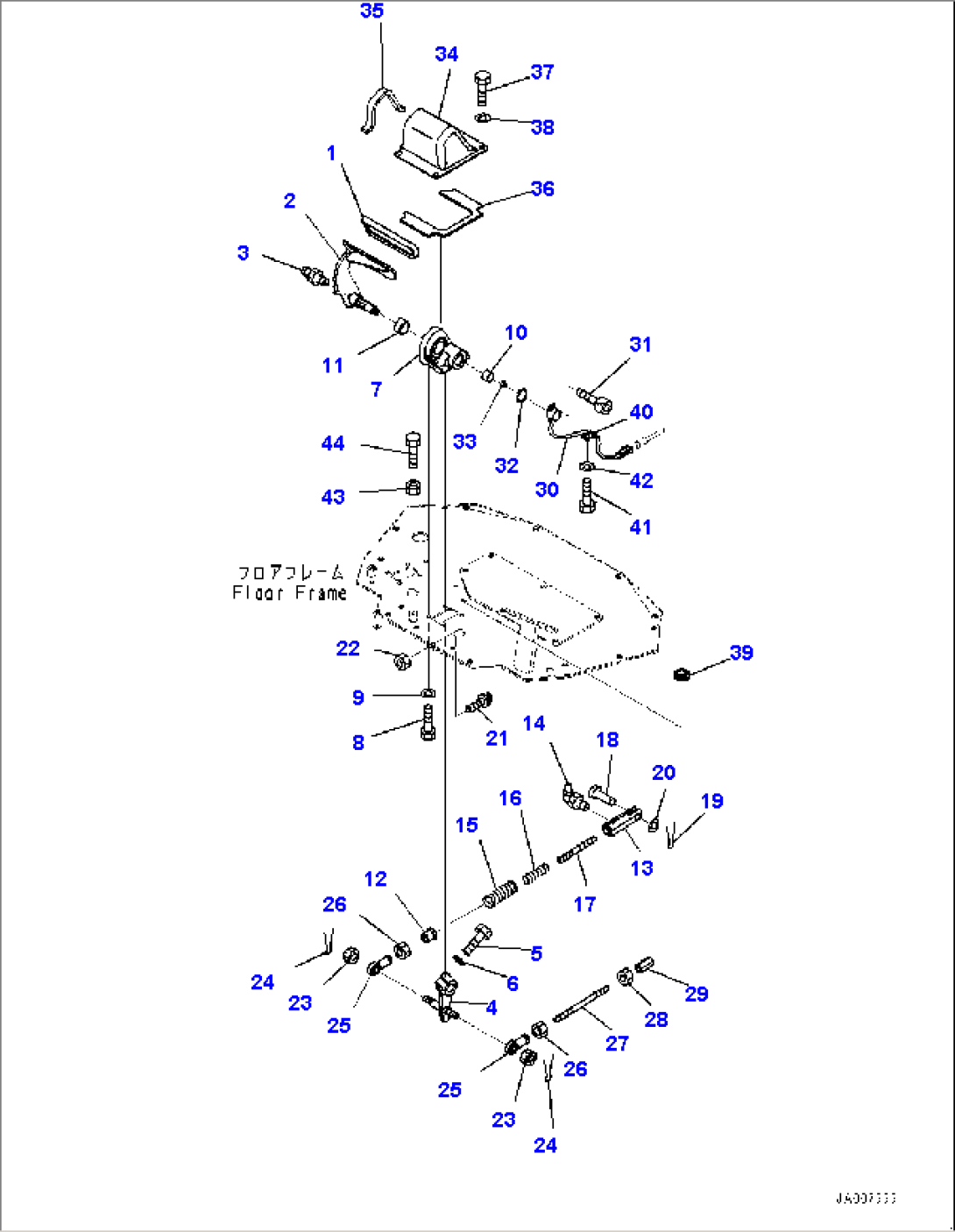

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-43-12110 | Pedal Cap | 80001- | |
| 2 | 14X-43-51511 | Pedal | 80001- | |
| 3 | 07020-00000 | Fitting, Grease | 80001- | |
| 4 | 14X-43-51551 | Lever | 80001- | |
| 5 | 01010-81245 | Bolt | 80001- | |
| 6 | 01643-31232 | Washer | 80001- | |
| 7 | 14X-43-51571 | Bracket | 80001- | |
| 8 | 01010-81020 | Bolt | 80001- | |
| 9 | 01643-31032 | Washer | 80001- | |
| 10 | 06124-02020 | Bearing | 80001- | |
| 11 | 06124-03020 | Bearing | 80001- | |
| 12 | 134-43-72490 | Guide | 80001- | |
| 13 | 14X-43-32210 | Yoke | 80001- | |
| 14 | 07020-00900 | Fitting, Grease | 80001- | |
| 15 | 14X-43-51590 | Spring | 80001- | |
| 16 | 14X-43-32220 | Spring | 80001- | |
| 17 | 14X-43-32230 | Rod | 80001- | |
| 18 | 04205-11442 | Pin | 80001- | |
| 19 | 04050-13022 | Pin, Cotter | 80001- | |
| 20 | 01641-21423 | Washer, Flat | 80001- | |
| 21 | 09311-41237 | Bumper, Pedal | 80001- | |
| 22 | 01580-11210 | Nut | 80001- | |
| 23 | 01593-31411 | Nut | 80001- | |
| 24 | 04050-13022 | Pin, Cotter | 80001- | |
| 25 | 04250-81474 | End | 80001- | |
| 26 | 01582-11411 | Nut | 80001- | |
| 27 | 14X-43-12410 | Rod | 80001- | |
| 28 | 01508-41408 | Nut | 80001- | |
| 29 | 17A-43-24160 | Joint | 80001- | |
| 30 | 17A-06-41981 | Sensor, Potentiometer | 80001- | |
| 31 | 01252-70414 | Bolt | 80001- | |
| 32 | 04064-01610 | Ring, Snap | 80001- | |
| 33 | 142-43-13180 | Spring | 80001- | |
| 34 | 14X-43-51631 | Cover | 80001- | |
| 35 | 14X-43-51651 | Sheet | 80001- | |
| 36 | 14X-43-51870 | Sheet | 80001- | |
| 37 | 01010-81020 | Bolt | 80001- | |
| 38 | 01643-31032 | Washer | 80001- | |
| 39 | 08037-02512 | Grommet | 80001- | |
| 40 | 04434-50810 | Clip | 80001- | |
| 41 | 01010-81020 | Bolt | 80001- | |
| 42 | 01643-31032 | Washer | 80001- | |
| 43 | 01580-11008 | Nut | 80001- | |
| 44 | 01016-51030 | Bolt | 80001- |
