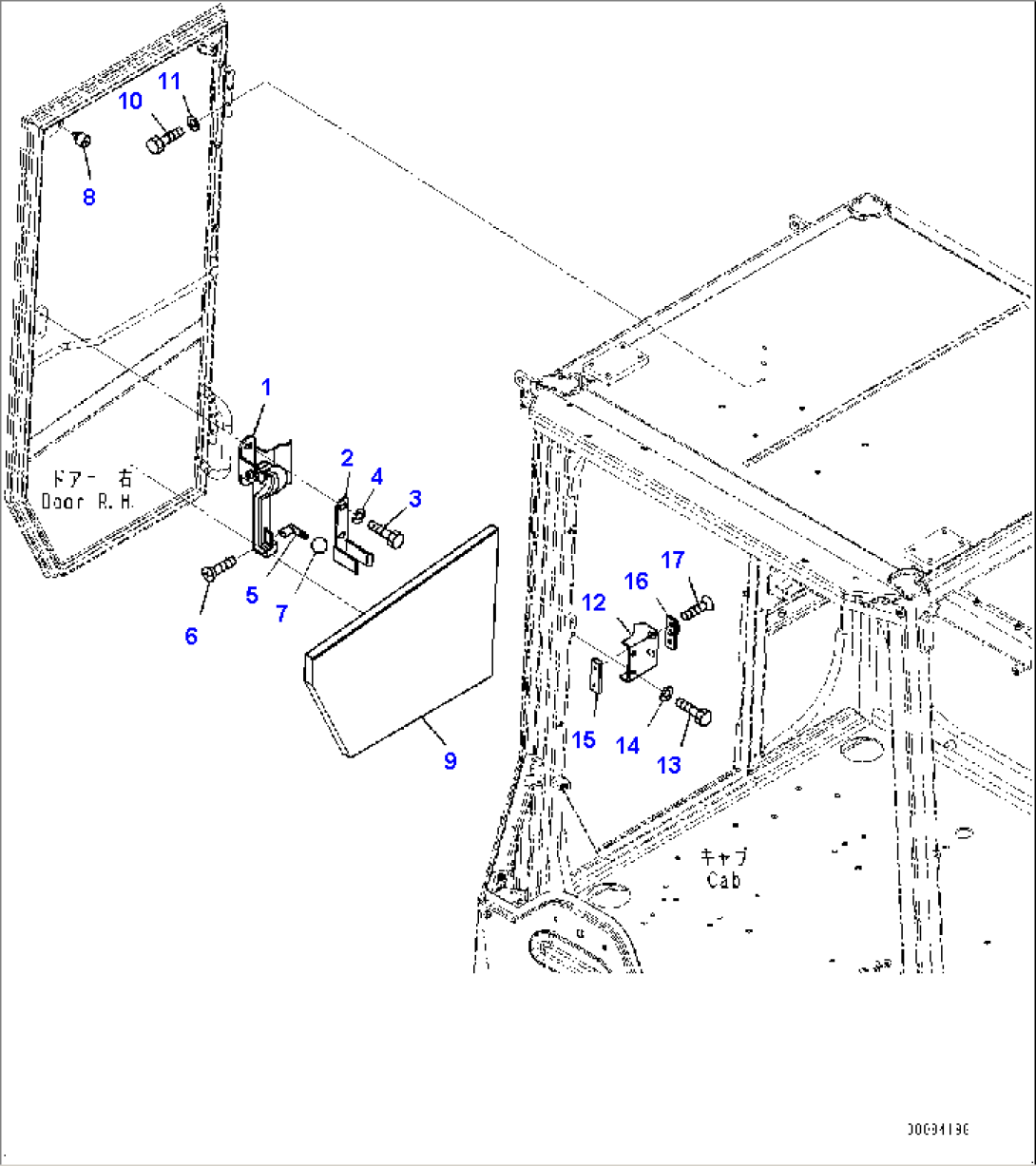

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-925-4271 | Lock Assembly | 55425- | |
| 2 | 426-56-31650 | Plate | 55425- | |
| 3 | 01010-D0620 | Bolt | 55425- | |
| 4 | 01643-70623 | Washer | 55425- | |
| 5 | 423-925-4391 | Bracket | 55425- | |
| 6 | 01224-70412 | Screw, Philips Head | 55425- | |
| 7 | 22T-55-15290 | Knob | 55425- | |
| 8 | 417-923-3950 | Stopper | 55425- | |
| 9 | 423-925-4360 | Sheet | 55425- | |
| 10 | 01010-81025 | Bolt | 55425- | |
| 11 | 01643-31032 | Washer | 55425- | |
| 12 | 423-925-4334 | Bracket | 55425- | |
| 13 | 01010-D1020 | Bolt | 55425- | |
| 14 | 01643-71032 | Washer | 55425- | |
| 15 | 423-925-4241 | Plate | 55425- | |
| 16 | 423-925-4253 | Striker | 55425- | |
| 17 | 01240-00616 | Screw | 55425- |
