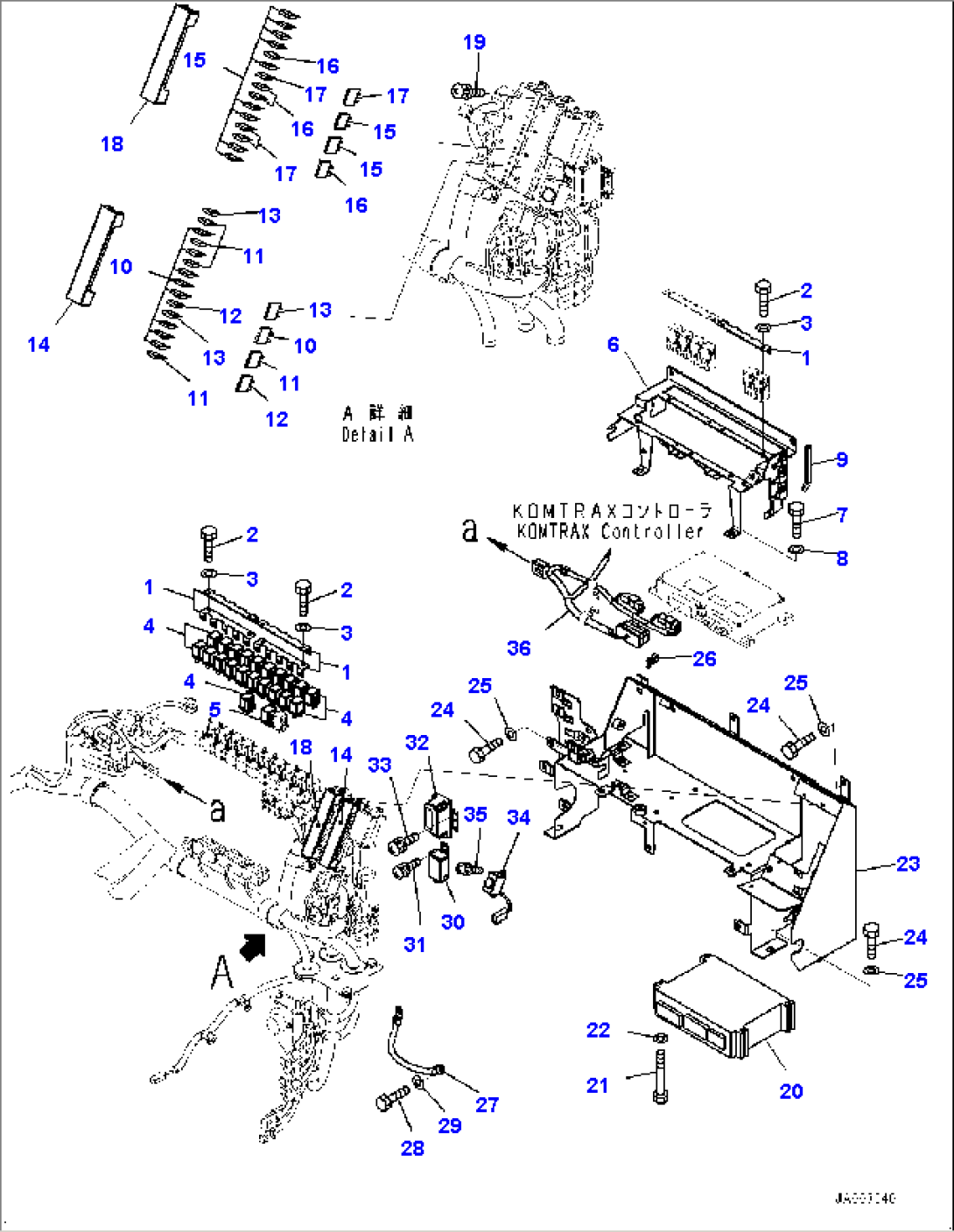

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-06-61180 | Bracket | 90047-91201 | |
| 2 | 01010-80616 | Bolt | 90047-91201 | |
| 3 | 01643-30623 | Washer | 90047-91201 | |
| 4 | 569-06-61960 | Relay | 90047-91201 | |
| 5 | 569-06-61970 | Relay | 90047-91201 | |
| 6 | 423-06-42633 | Bracket | 90047-91201 | |
| 7 | 01010-81020 | Bolt | 90047-91201 | |
| 8 | 01643-31032 | Washer | 90047-91201 | |
| 9 | 423-06-42420 | Finisher | 90047-91201 | |
| 10 | 283-06-16190 | Fuse, 10Amp. | 90047-91201 | |
| 11 | 22W-06-13160 | Fuse, 20Amp. | 90047-91201 | |
| 12 | 08041-03000 | Fuse, 30Amp. | 90047-91201 | |
| 13 | 08041-00500 | Fuse, 5Amp. | 90047-91201 | |
| 14 | 283-06-16120 | Cover, Fuse Box 15Pole | 90047-91201 | |
| 15 | 283-06-16190 | Fuse, 10Amp. | 90047-91201 | |
| 16 | 22W-06-13160 | Fuse, 20Amp. | 90047-91201 | |
| 17 | 08041-00500 | Fuse, 5Amp. | 90047-91201 | |
| 18 | 283-06-16120 | Cover, Fuse Box 15Pole | 90047-91201 | |
| 19 | 01023-60620 | Screw | 90047-91201 | |
| 20 | 7823-36-3009 | Controller | 90832-91201 | |
| 20 | 7823-36-3008 | Controller | 90832-90960 | |
| 20 | 7823-36-3007 | Controller | 90585-90831 | |
| 20 | 7823-36-3006 | Controller | 90047-90584 | |
| 21 | 01010-80880 | Bolt | 90047-91201 | |
| 22 | 01643-30823 | Washer | 90047-91201 | |
| 23 | 423-06-42622 | Bracket | 90047-91201 | |
| 24 | 01010-81020 | Bolt | 90047-91201 | |
| 25 | 01643-31032 | Washer | 90047-91201 | |
| 26 | 08059-00310 | Clip | 90047-91201 | |
| 27 | 08028-12025 | Cable, Ground | 90047-91201 | |
| 28 | 01010-81016 | Bolt | 90047-91201 | |
| 29 | 01643-31032 | Washer | 90047-91201 | |
| 30 | 416-06-22250 | Flasher | 90047-91201 | |
| 31 | 01023-80516 | Screw | 90047-91201 | |
| 32 | 421-06-26220 | Relay | 90047-91201 | |
| 33 | 01023-60616 | Screw | 90047-91201 | |
| 34 | 23S-05-35320 | Buzzer | 90047-91201 | |
| 35 | 01023-60412 | Screw | 90047-91201 | |
| 36 | 421-06-31410 | Wiring Harness | 90047-91201 |
