| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-56-21660 | BRACKET | 21001- | |
| 2 | 421-09-21410 | SCREW | 21001- | |
| 3 | 08053-15010 | CLIP | 21001- | |
| 4 | 01435-01016 | BOLT | 21001- | |
| 5 | 421-54-15520 | CLIP | 21001- | |
| 6 | 01023-60510 | SCREW | 21001- | |
| 7 | \6\ | CAB,ROPS | 21001- |
- Главная
- Каталог запчастей
- Каток
- Jv130wh 1 s/n 21001 up
- Frame and body
- Rops cab (electrical system mounting parts)
Поиск по каталогу

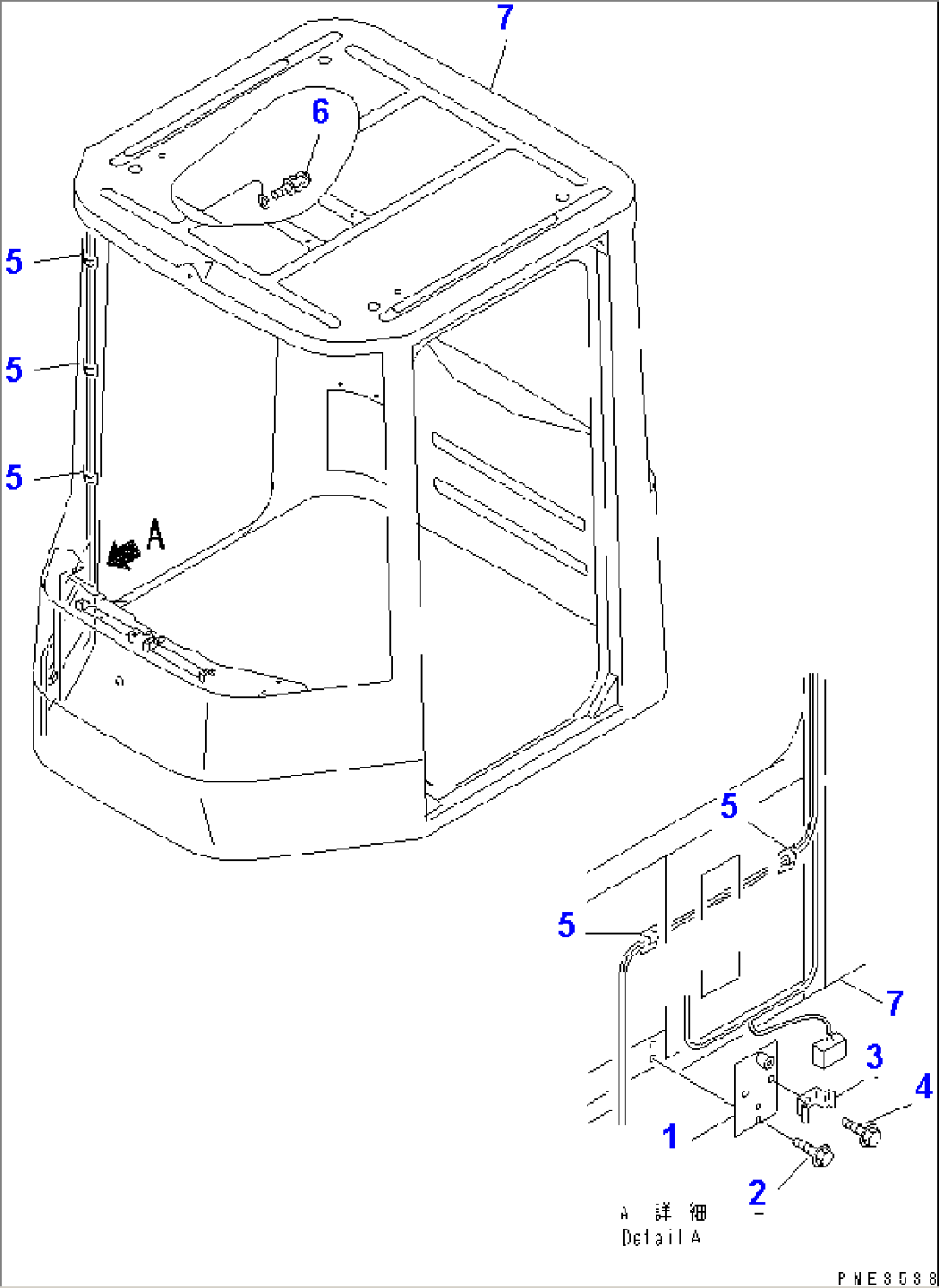

ROPS CAB (ELECTRICAL SYSTEM MOUNTING PARTS)
