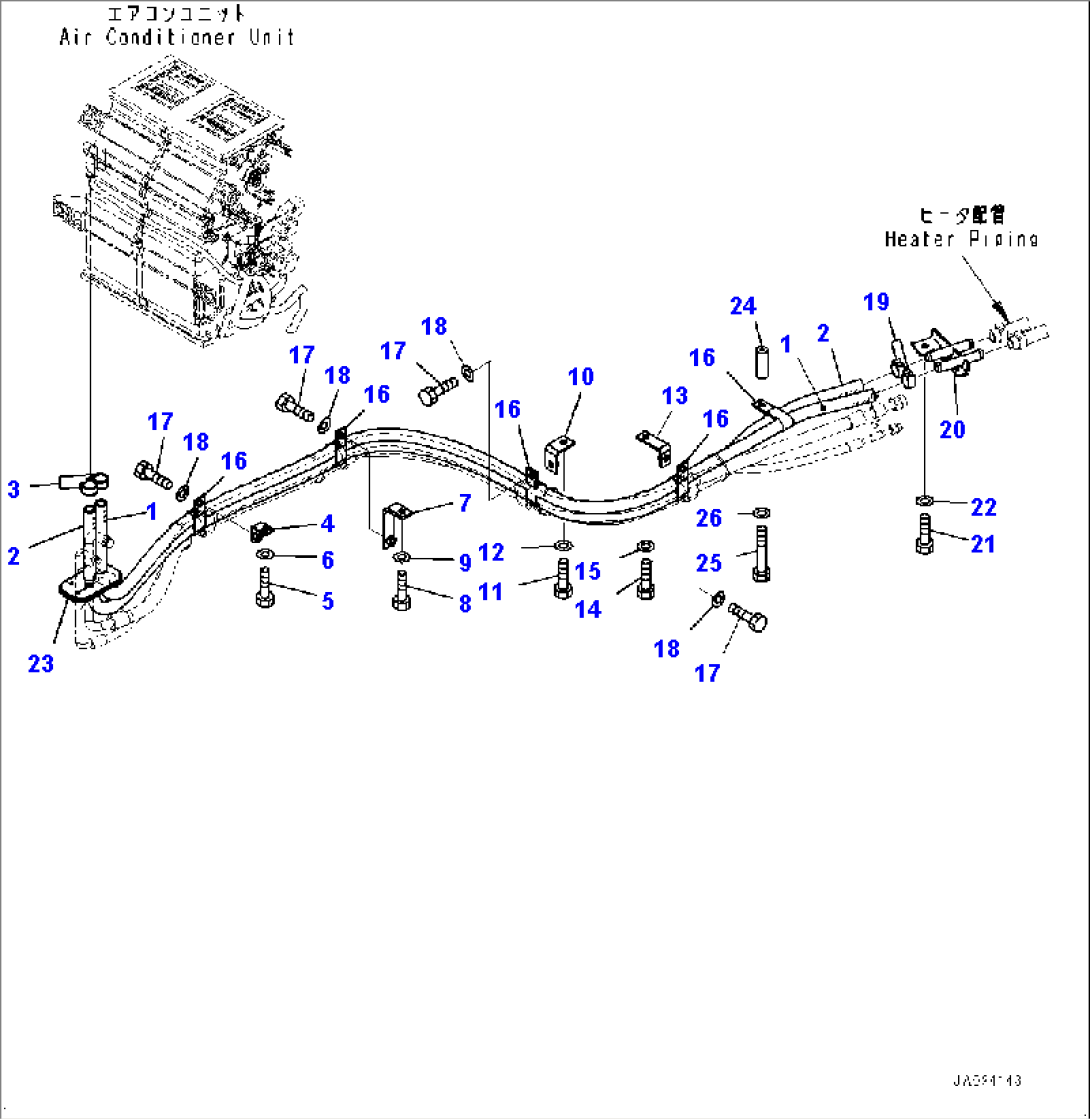

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-S62-4141 | Hose | 91202- | |
| 2 | 423-S62-4151 | Hose | 91202- | |
| 3 | 09479-02400 | Clip | 91202- | |
| 4 | 423-S62-4310 | Plate | 91202- | |
| 5 | 01010-81020 | Bolt | 91202- | |
| 6 | 01643-31032 | Washer | 91202- | |
| 7 | 42A-16-11210 | Plate | 91202- | |
| 8 | 01010-81020 | Bolt | 91202- | |
| 9 | 01643-31032 | Washer | 91202- | |
| 10 | 426-Z91-2170 | Plate | 91202- | |
| 11 | 01010-81020 | Bolt | 91202- | |
| 12 | 01643-31032 | Washer | 91202- | |
| 13 | 423-S62-4310 | Plate | 91202- | |
| 14 | 01010-81020 | Bolt | 91202- | |
| 15 | 01643-31032 | Washer | 91202- | |
| 16 | 421-07-11550 | Clip | 91202- | |
| 17 | 01010-81025 | Bolt | 91202- | |
| 18 | 01643-31032 | Washer | 91202- | |
| 19 | 09479-02400 | Clip | 91202- | |
| 20 | 421-07-41240 | Bracket | 91202- | |
| 21 | 01010-81025 | Bolt | 91202- | |
| 22 | 01643-31032 | Washer | 91202- | |
| 23 | 423-07-41721 | Grommet | 91202- | |
| 24 | 195-979-5190 | Collar | 91202- | |
| 25 | 01010-81070 | Bolt | 91202- | |
| 26 | 01643-31032 | Washer | 91202- |
