| Item | Part No. | Part Name | Qty | Serial No. |

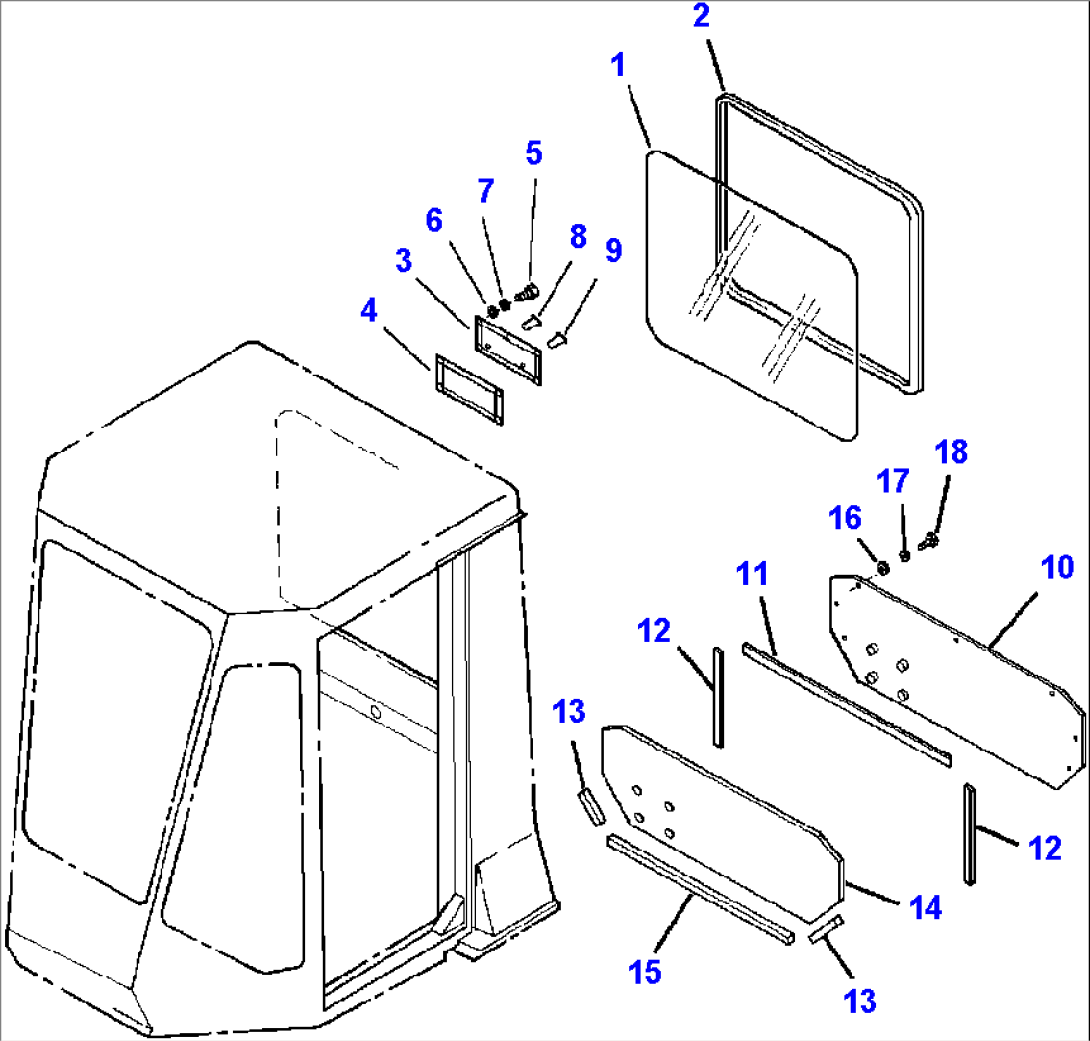

| ROPS CAB ASSEMBLY (SEE PG 05-058) | ||||
| 1 | 419-54-15511 | GLASS, REAR WINDOW | ||
| 2 | 417-927-AC90 | STRIP, WEATHER | ||
| 417-927-AP40 | COVER, WIPER REAR | |||
| 3 | (NSS) | COVER, WIPER REAR | ||
| 4 | 417-927-AE80 | SEAL | ||
| 5 | 01010-50620 | BOLT | ||
| 6 | 01643-30623 | WASHER, FLAT | ||
| 7 | 01602-20619 | WASHER, LOCK | ||
| 8 | 417-927-AM70 | PLUG, CAP (WITHOUT REAR WIPER) | ||
| 9 | 417-927-AM60 | PLUG, DOME (WITHOUT REAR WIPER) | ||
| 417-927-AM80 | PANEL ASSEMBLY, LOWER REAR CAB | |||
| 10 | 417-927-AN40 | PANEL, LOWER REAR CAB | ||
| 11 | 417-927-AN80 | RUBBER, TOP | ||
| 12 | 417-927-AN90 | RUBBER | ||
| 13 | 417-927-AN70 | RUBBER, BOTTOM ENDS | ||
| 14 | 417-927-AN50 | ACOUSTICAL FOAM | ||
| 15 | 417-927-AN60 | RUBBER, BOTTOM | ||
| 16 | 01643-30823 | WASHER, FLAT | ||
| 17 | 01602-20825 | WASHER, LOCK | ||
| 18 | 01010-50825 | BOLT |
